• TC-1 at a Glance

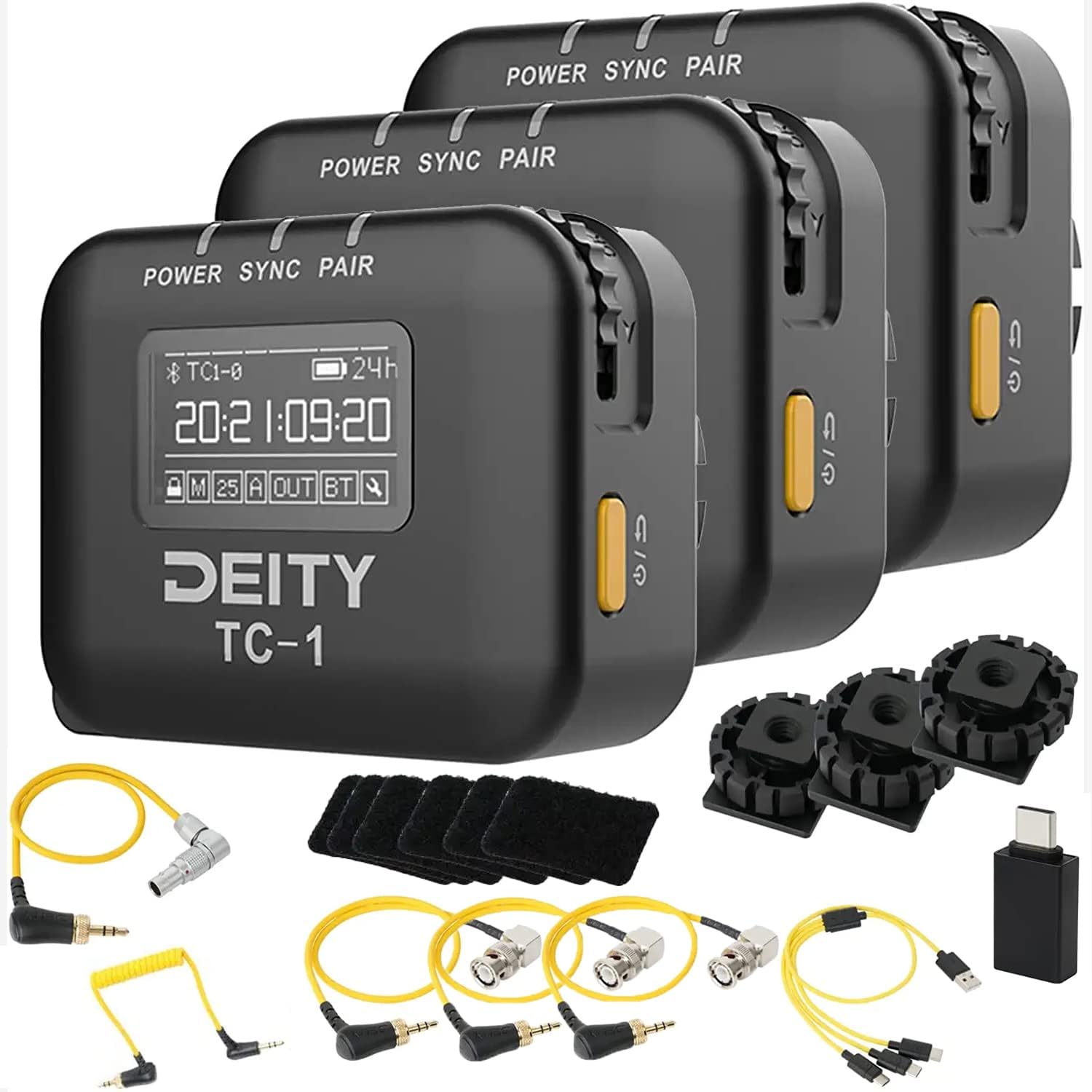

• Set of three TC-1 wireless timecode generator boxes
• Timecode:  All SMPTE timecode formats
• Jam sync and control wirelessly from your phone via Bluetooth using the Sidus Audio mobile app (supports up to 20 TC-1s)
• Jam sync and control wirelessly from other TC-1 boxes via 8-channel, 2.4 GHz radio ecosystem
• Hardwire jam sync via locking 3.5mm TRS timecode port
• Use to generate timecode internally and jam other devices
• Wireless range: 30' (2.4 GHz); 250' (Bluetooth)
• Wireless RF channels: 8
• Timecode accuracy: ±0.5 ppm
• Drift: <1 frame per 72 hours
• Frame rates: 23.98, 24, 25, 29,97, 29.97DF, 30 fps

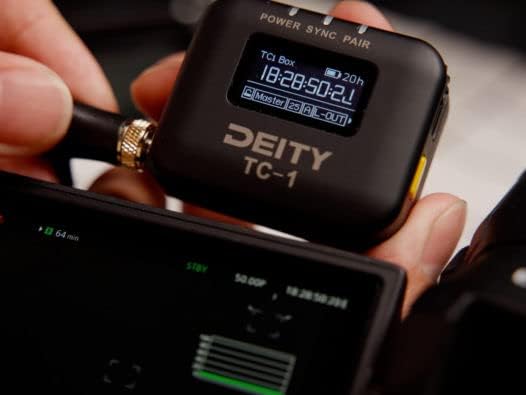

• 1" OLED display
• Onboard controls and menu
• Onboard omnidirectional microphone for reference audio
• LED status lights indicate power, TC sync, and wireless pairing
• USB-C charging:  Two hours to fully charge; up to 28-hour battery life

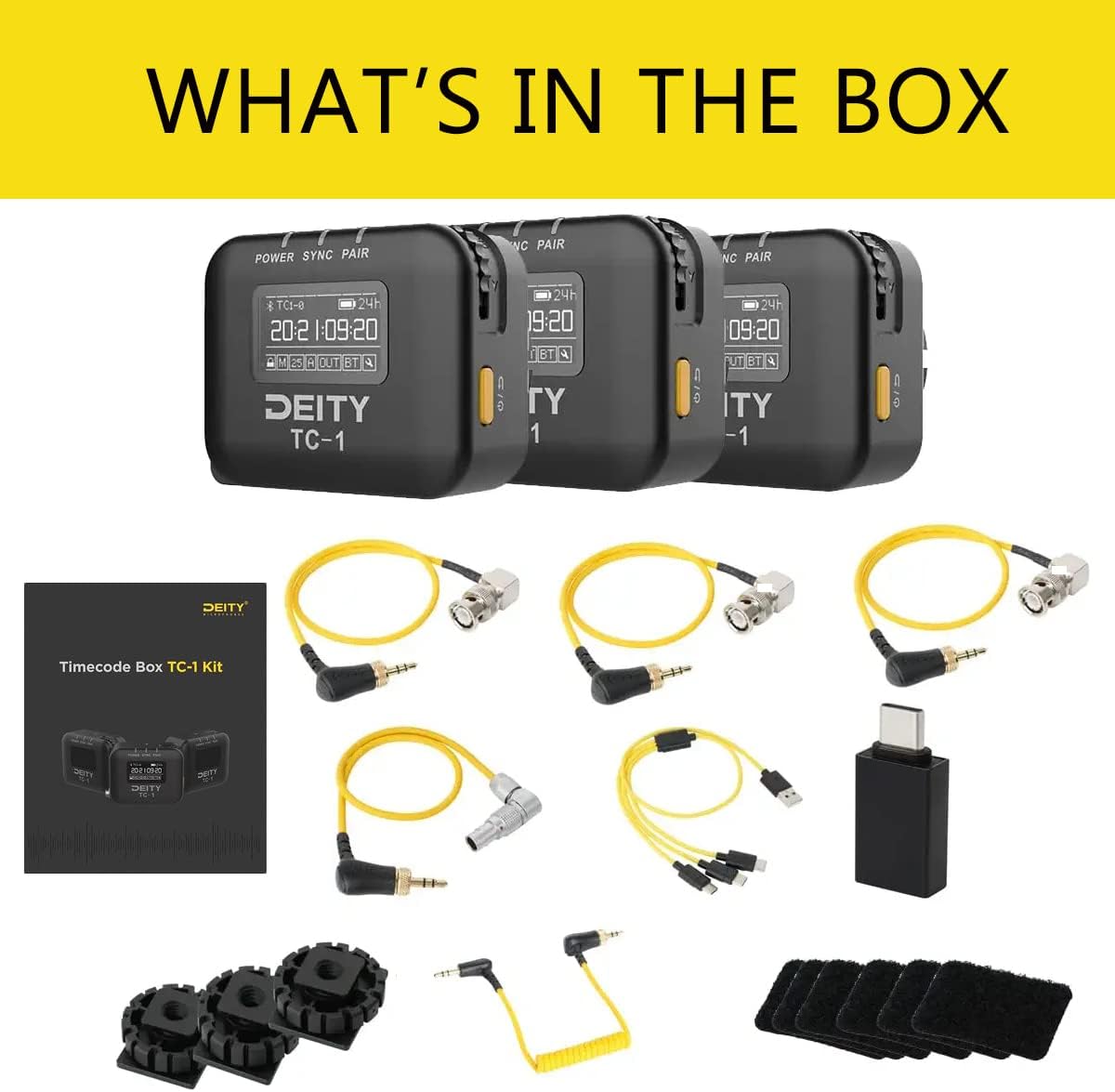

• Includes all Deity timecode cables
• Includes hook-and-loop and DSLR cold shoe mount

Timecode Makes Post Easier

Jam syncing timecode is a process used by productions when sound is recorded separately or when multiple cameras are shooting the same event, such as in features, television, music videos, documentary, and especially reality television.

With more devices than ever now supporting SMPTE timecode, syncing footage and audio in post has never been easier or quicker. Rather than wasting time lining up waveforms, using timecode helps save time and money, and it gets your deliverables out the door faster.

Long-Range Wireless SMPTE Code for Near-Zero Drift

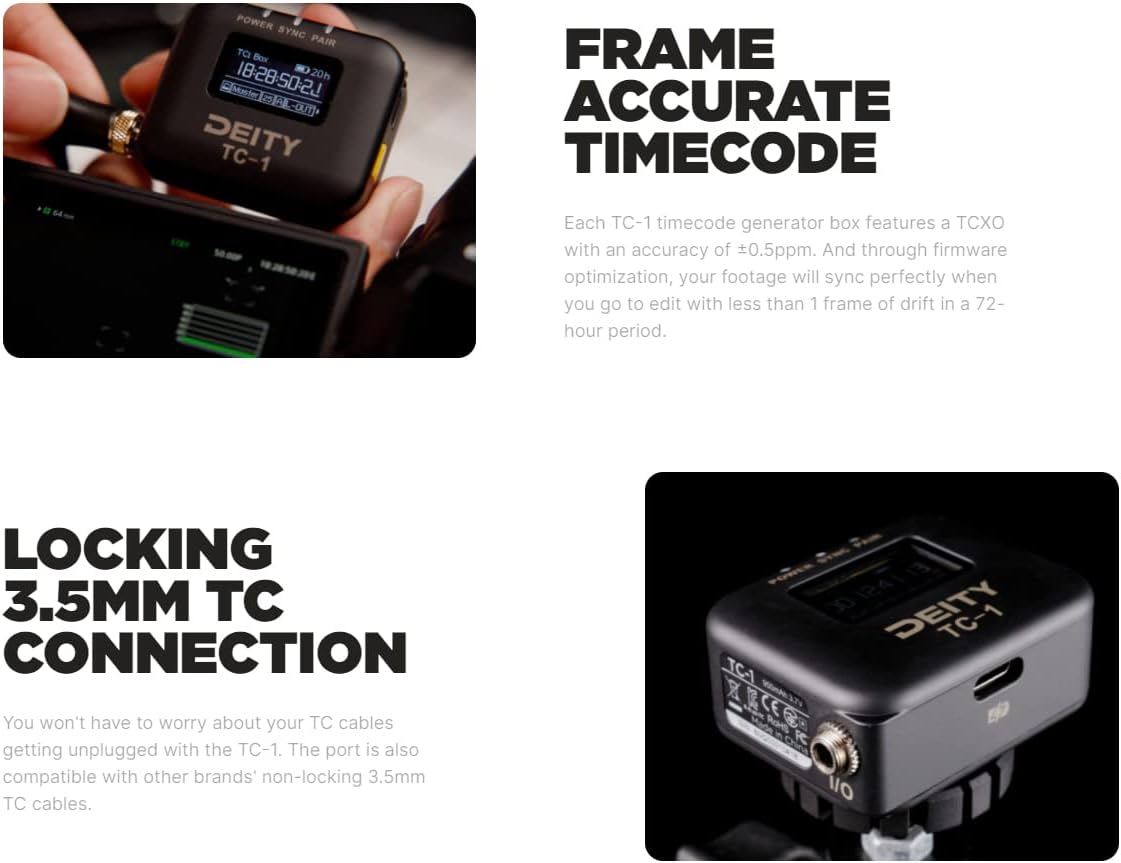

This sophisticated timecode generator supports all SMPTE formats. It features a TXCO with an accuracy of ±0.5 ppm accuracy, yielding an ultralow drift rate of only one frame every 72 hours.

Wireless connectivity means you can easily jam sync multiple boxes remotely during the day, eliminating even this tiny amount of drift. Two wireless control options are available. Bluetooth 5.0 support allows you to use the Sidus Audio app on your phone to jam sync and control every aspect of up to twenty TC-1 units at a distance up to 250' away. If you prefer a more hands-on approach, the unit's OLED screen and control panel allow you to sync up to eight units remotely via proprietary wireless 2.4 GHz technology at a distance up to 30' away.

Timecode for DSLR/Mirrorless and Cinema Cameras, and Audio Recorders

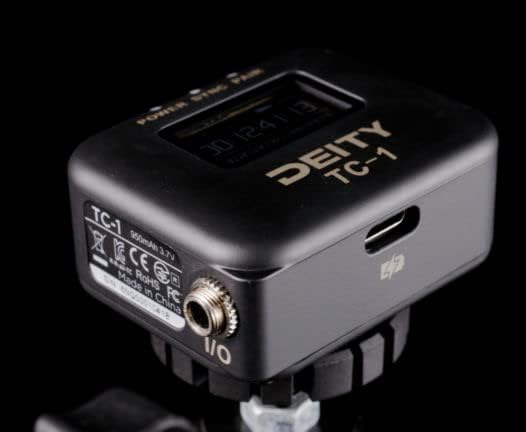

The TC-1's timecode port is a locking 3.5mm TRS connector. Never worry about your timecode cables becoming unplugged during a shoot.

Use the included 3.5mm TRS cable with your DSLR/mirrorless to record timecode to the left channel, leaving the right available for reference audio via the onboard omnidirectional microphone (which conveniently points in the same direction as the lens to capture absolute audio backups).

Included are additional timecode cables for connecting to professional cameras and recorders equipped with 5-pin LEMO or BNC timecode ports.

• Deity C13: Locking 3.5mm to right-angle 5-pin LEMO timecode cable for ARRI ALEXA Mini camera
• Deity C14: Locking 3.5mm to 5-pin LEMO timecode cable for various devices
• Deity C15: Locking 3.5mm to BNC timecode cable

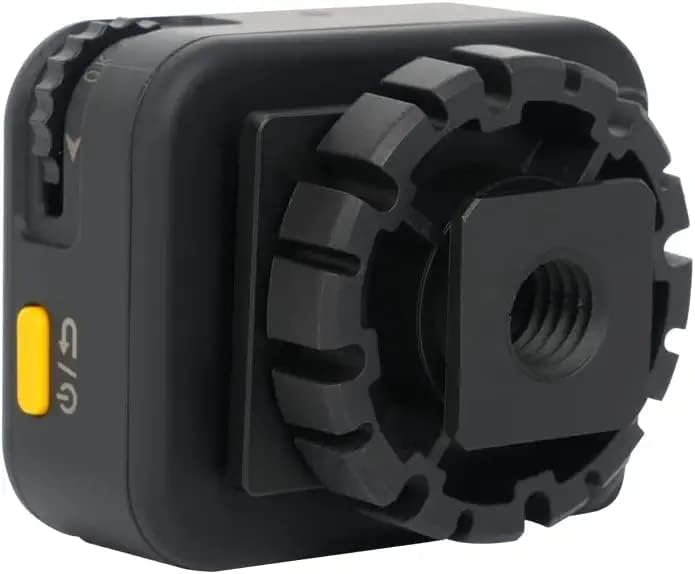

Versatile Mounting Options

Professionals can enjoy the integrated hook-and-loop pad on the back of the TC-1. Indie filmmakers can use the included cold shoe soft-loop mount. You can also mount the TC-1 using the 1/4"-20 and 3/8"-16 threads under the cold shoe mount.
