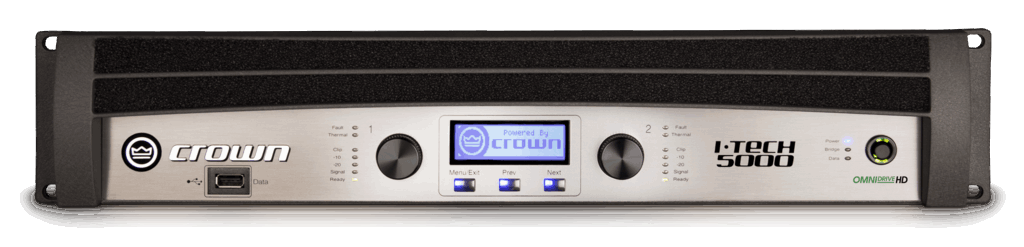

Crown I-Tech 5000HD Two-Channel, 2500W @ 4Ω Power Amplifier ( ITech5000HD / IT5000HD )

Inside and out, the I-Tech HD is one of the most technologically advanced professional touring amplifiers on the market today. Building on the decades of innovation, invention, and insight Crown is known for, the I-Tech HD features five new patents – three on the power supply alone – giving you an amp that goes well beyond the expected.  At the heart of the new I-Tech HD is the BSS OMNIDRIVEHD™ processing engine. Four times faster than its predecessor and featuring Linear Phase FIR filters and LevelMAX™ limiters, OMNIDRIVEHD provides unmatched clarity and sonically pure signal processing.

Innovation

• BSS OMNIDRIVEHD™ DSP processing with IIR filters and linear phase FIR filters

  • Covered by five patents

  • Fan has true tachometer feedback for fan fault protection and precise control over thermal performance, so the amp runs longer and harder than the competition

  • Includes SLM (Sweep Load Monitoring) with system-level diagnostics


Performance

• Ultra smooth processing by onboard high-definition BSS OMNIDRIVEHD DSP with 24-bit, 192kHz Cirrus Logic SHARC A/D and D/A converters

  • LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
• True Ethernet backbone – fast, reliable and scalable

  • High common-mode rejection eliminates hum and RFI on input cables

  • 6th-generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw


Versatility

• Global Power Supply; universal AC input accepts100-240VAC, 50/60Hz (±15%)

  • Front-panel USB connector transfers presets to/from a USB drive to the amp’s DSP

  • New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard

  • The only product available with analog, AES/EBU, CobraNet®, HiQnet™and Ethernet connectivity

  • User -definable front panel security feature
• The only tour sound amplifier that provides inputs routable to any output (analog, AES, or CobraNet)


Power

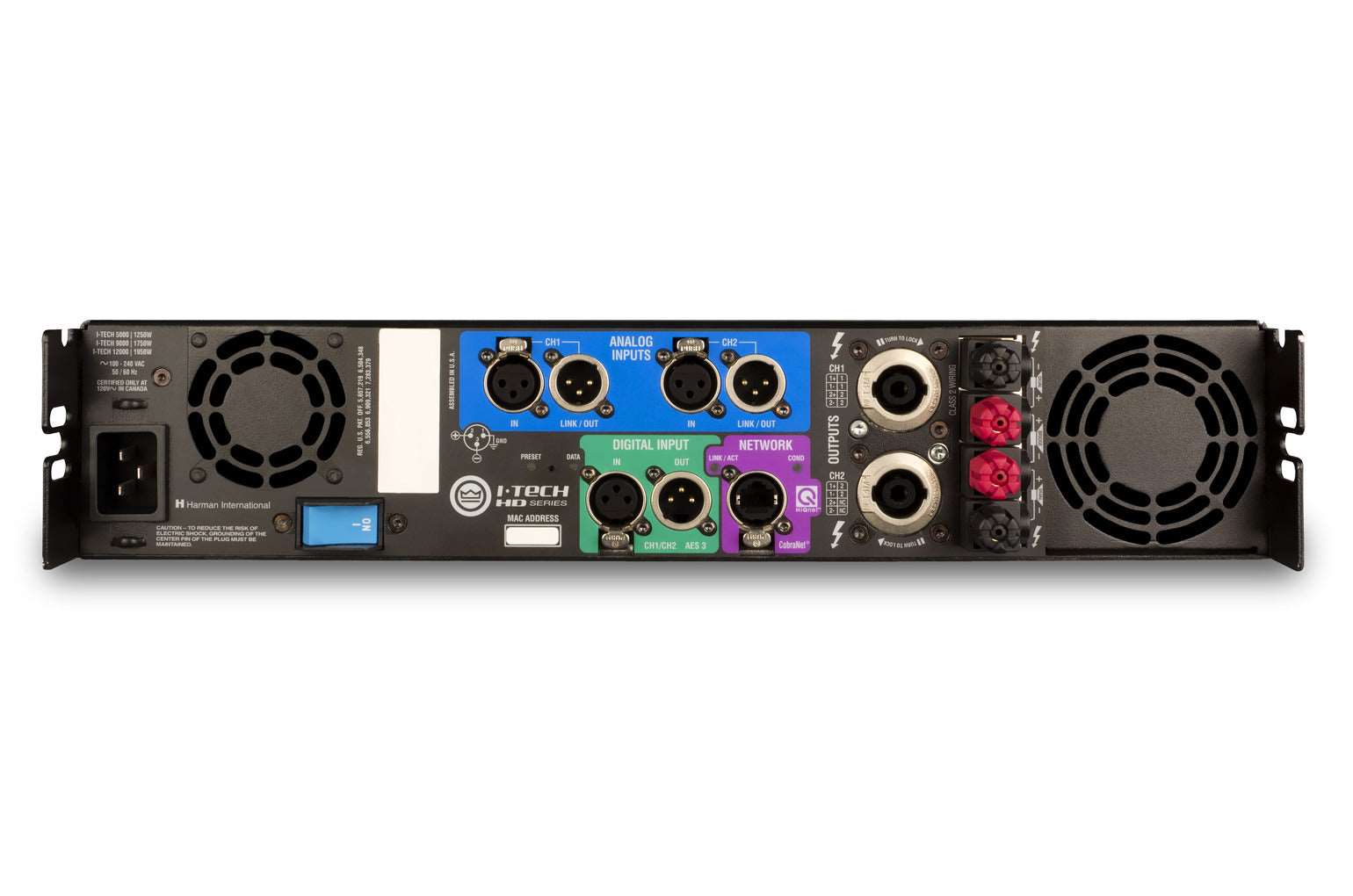

• Professional-grade connectors for all inputs and outputs

  • Full power-supply voltage is always available, allowing instantaneous power on demand

  • Quality-graded components let you safely drive the amplifier harder

  • More total capacitance provides tremendous energy reserves for power bursts

  • 200Vrms peak output voltage provides clean transient peaks
