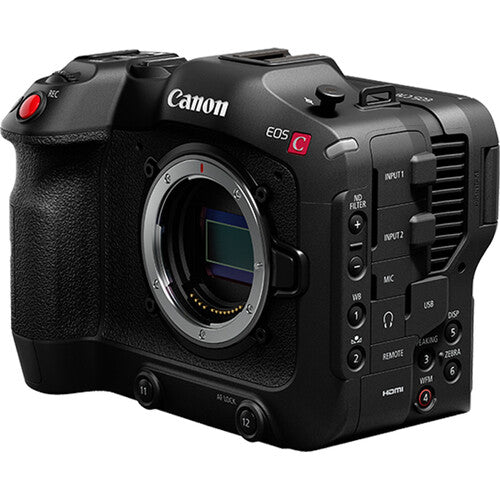

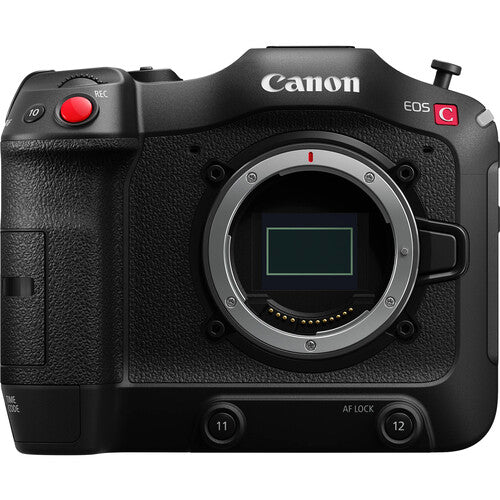

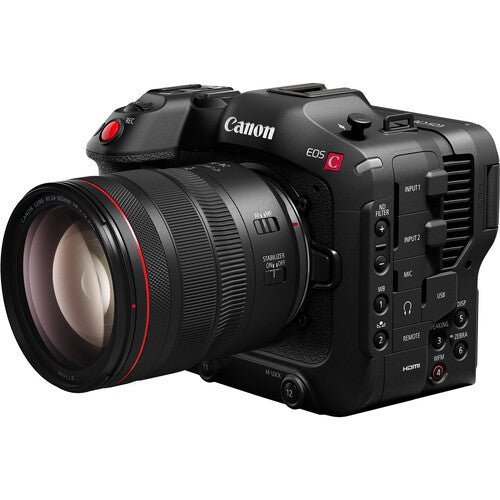

Incorporating key Cinema EOS video tools in a mirrorless-style body, the Canon EOS C70 Cinema Camera features a Super35 DGO (Dual Gain Output) sensor for capturing nuanced images with up to 16+ stops of high dynamic range. The EOS C70 is the first Cinema EOS camera with an RF mount that enables you to use Canon's line of fast, reliable RF lenses with advanced coatings and image stabilization.The innovative DGO system combines two separate gain readings for each photodiode on the sensor, emphasizing saturation in bright areas of your image and lowering noise in darker areas.
Video resolutions include DCI 4K capture at rates ranging from 23.98 to 60 fps, plus high-speed options up to 120 fps in UHD 4K and 180 fps in cropped 2K. Pro video functions include unlimited video recording, Dual Pixel CMOS AF autofocus control, a motorized ND filter wheel tucked into the shallower RF-mount flange depth, a BNC timecode input/output connector, and built-in dual mini-XLR audio inputs.
Key Specs
|
Lens Mount
|
Canon RF
|
|
Sensor Resolution
|
Actual: 9.6 Megapixel (4206 x 2280)
Effective: 8.85 Megapixel (4096 x 2160)
|
|
Image Sensor
|
26.2 x 13.8 mm (Super35) CMOS
|
|
Image Stabilization
|
Digital, 5-Axis
|
|
ISO Sensitivity Range
|
Photo/Video
160 to 25,600 (Extended: 100 to 102,400)
|
|
Internal Recording Modes
|
XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
UHD 4K (3840 x 2160) at 24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
DCI 2K (2048 x 1080i) at 50/59.94 fps [24 to 600 Mb/s]
1920 x 1080p at 23.98/24.00/25/50/59.94 fps [24 to 600 Mb/s]
1920 x 1080i at 50/59.94 fps [24 to 600 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit
DCI 4K (4098 x 2160) [135 to 225 Mb/s]
DCI 4K (4098 x 2160)
UHD 4K (3840 x 2160) at 50/59.94 fps [135 to 225 Mb/s]
UHD 4K (3840 x 2160)
2840 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [50 Mb/s]
2048 x 1080
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [50 Mb/s]
1920 x 1080
1280 x 720 at 50/59.94 fps [12 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit
DCI 4K (4096 x 2160)
UHD 4K (3840 x 2160)
DCI 2K (2048 x 1080)
1920 x 1080
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 10-Bit
DCI 4K (4096 x 2160) [100 to 170 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 170 Mb/s]
DCI 2K (2048 x 1080) from 12 to 24.00 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [35 Mb/s]
1280 x 720 at 50/59.94 fps [9 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit
DCI 4K (4096 x 2160) [150 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [150 Mb/s]
DCI 2K (2048 x 1080) [24 to 35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [24 to 35 Mb/s]
1280 x 720 at 50/59.94 fps [8 Mb/s]
Show More
|
|
External Recording Modes
|
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps
Show More
|
|
Media/Memory Card Slot
|
Dual Slot: SD/SDHC/SDXC
|
|
Video I/O
|
1x HDMI (Unspecified Signal) Output
|
|
Mobile App Compatible
|
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Show More
|
|
Battery Type
|
Canon BP-A Series
|
Imaging
|
Lens Mount
|
Canon RF
|
|
Lens Communication
|
Yes, with Autofocus Support
|
|
Sensor Resolution
|
Actual: 9.6 Megapixel (4206 x 2280)
Effective: 8.85 Megapixel (4096 x 2160)
|
|
Image Sensor
|
26.2 x 13.8 mm (Super35) CMOS
|
|
Image Stabilization
|
Digital, 5-Axis
|
|
Built-In ND Filter
|
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters
|
|
Capture Type
|
Stills & Video
|
Exposure Control
|
Shutter Type
|
Electronic Rolling Shutter
|
|
Shutter Type
|
Electronic Rolling Shutter
|
|
Shutter Speed
|
1/2000 to 1/12 Second
|
|
ISO Sensitivity Range
|
Photo/Video
160 to 25,600 (Extended: 100 to 102,400)
|
|
Gain
|
-6 to 54 dB (Native)
-2 to 54 dB (Expanded)
|
|
Shutter Angle
|
11 to 360°
|
|
Advertised Dynamic Range
|
16 Stops
|
|
White Balance
|
2000 to 15,000K
Presets: AWB, Daylight, Set A, Set B, Tungsten
|
Video Capture
|
Internal Recording Modes
|
XF-AVC 4:2:2 10-Bit
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
UHD 4K (3840 x 2160) at 24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
DCI 2K (2048 x 1080i) at 50/59.94 fps [24 to 600 Mb/s]
1920 x 1080p at 23.98/24.00/25/50/59.94 fps [24 to 600 Mb/s]
1920 x 1080i at 50/59.94 fps [24 to 600 Mb/s]
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps [24 to 600 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 10-Bit
DCI 4K (4098 x 2160) [135 to 225 Mb/s]
DCI 4K (4098 x 2160)
UHD 4K (3840 x 2160) at 50/59.94 fps [135 to 225 Mb/s]
UHD 4K (3840 x 2160)
2840 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [50 Mb/s]
2048 x 1080
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [50 Mb/s]
1920 x 1080
1280 x 720 at 50/59.94 fps [12 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:2 8-Bit
DCI 4K (4096 x 2160)
UHD 4K (3840 x 2160)
DCI 2K (2048 x 1080)
1920 x 1080
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 10-Bit
DCI 4K (4096 x 2160) [100 to 170 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [100 to 170 Mb/s]
DCI 2K (2048 x 1080) from 12 to 24.00 fps [35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [35 Mb/s]
1280 x 720 at 50/59.94 fps [9 Mb/s]
H.264/H.265/MP4/XF-AVC/XF-AVC Proxy 4:2:0 8-Bit
DCI 4K (4096 x 2160) [150 Mb/s]
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [150 Mb/s]
DCI 2K (2048 x 1080) [24 to 35 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps [24 to 35 Mb/s]
1280 x 720 at 50/59.94 fps [8 Mb/s]
|
|
External Recording Modes
|
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps
DCI 2K (2048 x 1080) at 23.98/24.00/25/29.97/50 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94 fps
1280 x 720 at 23.98/24.00/25/29.97/50/59.94 fps
|
|
Fast-/Slow-Motion Support
|
Yes
|
|
Gamma Curve
|
Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, Wide DR
|
|
Broadcast Output
|
NTSC/PAL
|
|
Built-In Microphone
|
Stereo
Mono
|
|
Audio Recording
|
4-Channel 24-Bit 48 kHz LPCM Audio
|
|
IP Streaming
|
Yes
|
Still Image Capture
|
Image Sizes
|
16:9 JPEG
3840 x 2160
1920 x 1080
17:9 JPEG
4096 x 2160
2048 x 1080
|
|
Aspect Ratio
|
16:9, 17:9
|
|
Image File Format
|
JPEG
|
|
Bit Depth
|
12-Bit
|
Interface
|
Media/Memory Card Slot
|
Dual Slot: SD/SDHC/SDXC
|
|
Video I/O
|
1x HDMI (Unspecified Signal) Output
|
|
Audio I/O
|
2x Mini XLR Mic/Line (+48 V Phantom Power) Input
1x 1/8" / 3.5 mm TRS Stereo Input
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
|
Power I/O
|
1x Barrel (11.5 to 20VDC) Input
|
|
Other I/O
|
1x USB-C Control/Video Input/Output
1x BNC (Timecode) Input/Output
1x 2.5 mm Sub-Mini (LANC) Control
|
|
Wireless
|
No
|
|
Mobile App Compatible
|
No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
|
|
Global Positioning (GPS, GLONASS, etc.)
|
GPS
*Adapter Required
|
Monitor
|
Display Type
|
Articulating Touchscreen LCD
|
|
Display Size
|
3.5"
|
|
Resolution
|
1280 x 720 (2,760,000 Dot)
|
Focus
|
Focus Type
|
Auto and Manual Focus
|
|
Focus Mode
|
Automatic, Continuous-Servo AF, Manual Focus
|
Environmental
|
Operating Temperature
|
32 to 72°F / 0 to 40°C (Recommended)
|
|
Operating Humidity
|
85% (Recommended)
|
General
|
Battery Type
|
Canon BP-A Series
|
|
Shoe Mount
|
2x Cold Shoe
|
|
Tripod Mounting Thread
|
2x 1/4"-20 Female (Bottom)
1x 3/8"-16 Female (Bottom)
1x 1/4"-20 Female (Side)
|
|
Accessory Mounting Thread
|
1x 1/4"-20
|
|
Netflix Approved
|
Yes
|
|
Dimensions (W x H x D)
|
5.1 x 6.3 x 4.6" / 130.2 x 160 x 115.9 mm
|
|
Weight
|
2.58 lb / 1.17 kg (Body Only)
2.95 lb / 1.34 kg (With Battery)
|
Packaging Info
|
Package Weight
|
6.655 lb
|
|
Box Dimensions (LxWxH)
|
13.6 x 10.3 x 8.3"
|
