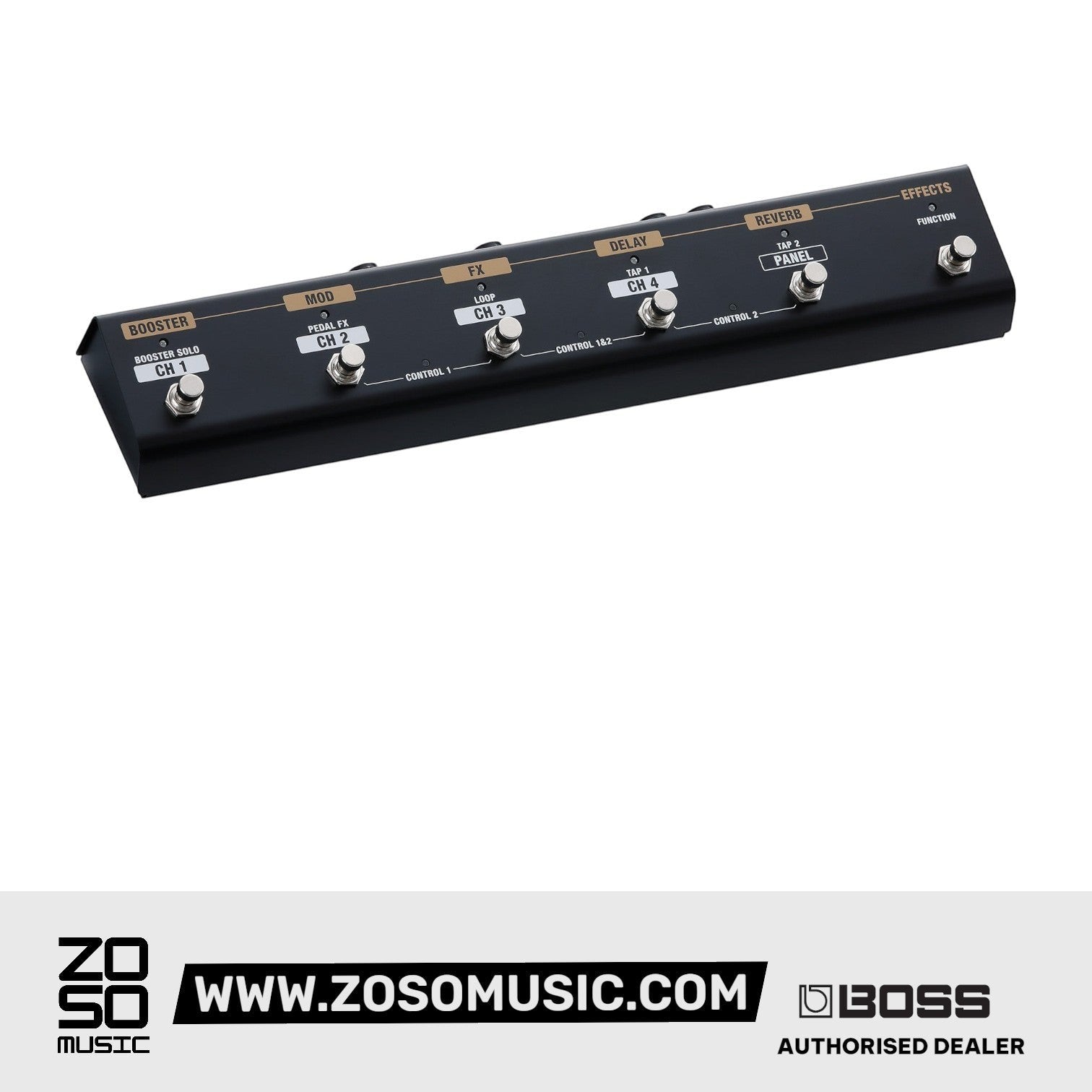

Boss GA-FC EX Foot Controller for BOSS Katana Amplifiers

The GA-FC EX provides expanded foot control functionality for select BOSS amplifier models. It maintains the simple setup and intuitive workflow of the standard GA-FC while offering additional functions for greater performance flexibility.

Features:

• xpanded GA-FC with enhanced functionality for select BOSS amplifiers
• Rugged metal chassis and six heavy-duty footswitches
• Control channel selection, effect on/off, and more
• Two-color LEDs for easy view of control status
• Two dedicated expression pedal jacks
• Additional control jack with three-way mode selector
• EXPAND mode for adding another GA-FC EX or a GA-FC
• FOOT CONTROL 2 mode for operating two amps at once
• EXP PEDAL 3 mode for a third expression pedal
• Works as a standard GA-FC controller with other amplifier models
• Connects with a single 1/4-inch TRS cable (included)—no power required

Specification:

Controls: Switch × 6, [MODE] switch

Indicators:

• CH 1--CH 4
• PANEL
• FUNCTION
• CONTROL 1
• CONTROL 1&2
• CONTROL 2

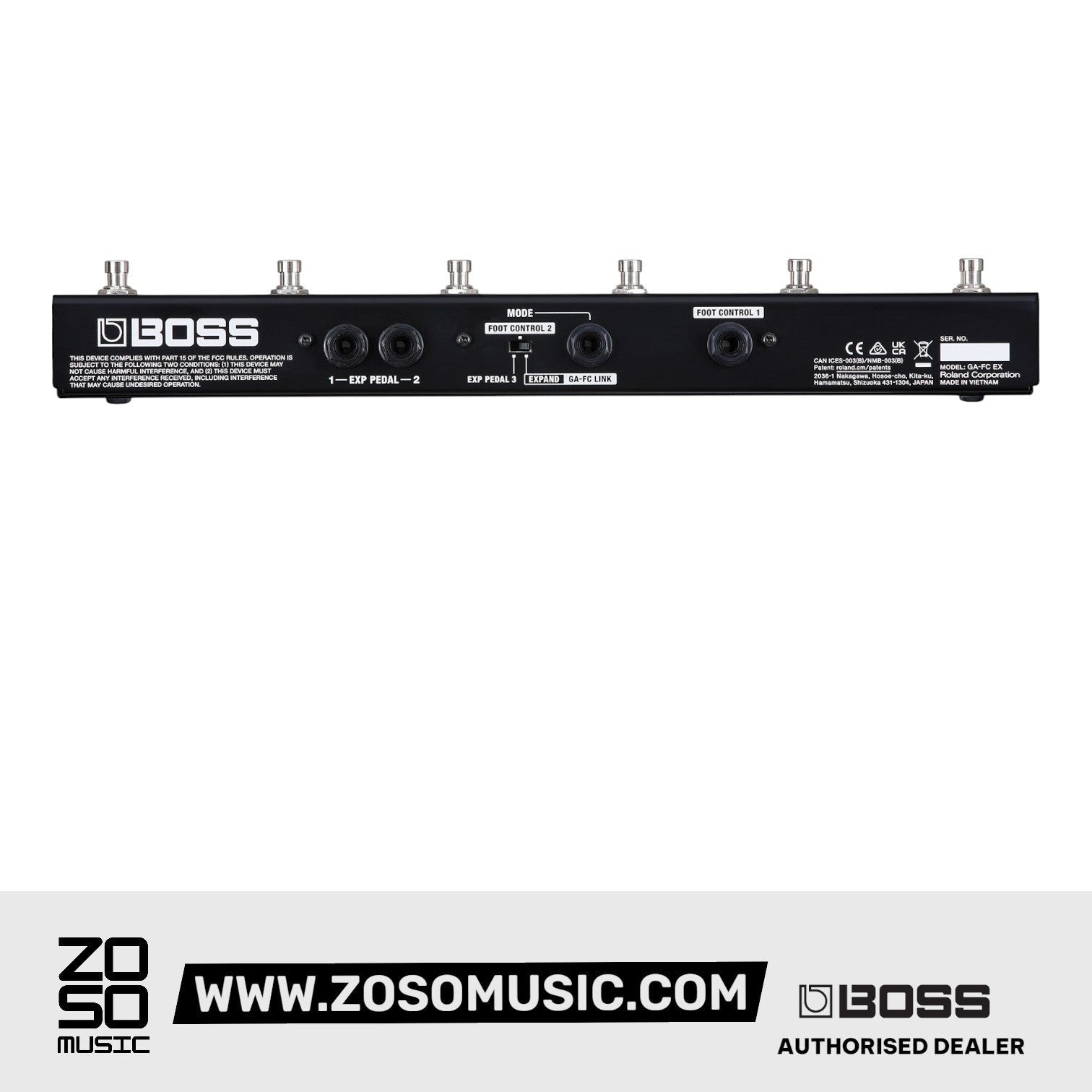

Connectors:

• EXP PEDAL jack (1/4-inch TRS phone type) x 2
• MODE jack (1/4-inch TRS phone type)
• FOOT CONTROL 1 jack (1/4-inch TRS phone type)

Accessory:

• Owner's Manual
• Foot Controller Cable

SIZE AND WEIGHT:

• Width: 392 mm, 15-7/16 inches
• Depth: 81 mm, 3-3/16 inches
• Height: 49 mm, 1-15/16 inches
• Weight: 1.0 kg, 2 lbs. 4 oz.

Compatible Products

The following BOSS amplifiers support all GA-FC EX features.

• Katana-Artist MkII
• Katana-Head MkII
• Katana-100 MkII
• Katana-100/212 MkII

Future products with GA-FC EX support will be listed here as they become available.

The GA-FC EX can be used with the following BOSS and Roland products that support the GA-FC Foot Controller, but only standard GA-FC control functions are available.

• BOSS Katana-100, Katana-100/212, Katana-Head and Katana-Artist
• BOSS Nextone Special, Nextone Artist, and Nextone Stage
• BOSS Waza Tube Amp Expander
• BOSS Katana-210 Bass and Katana-110 Bass
• BOSS Acoustic Singer Pro and Acoustic Singer Live
• Roland Blues Cube Artist, Blues Cube Artist 212, and Blues Cube Tour
