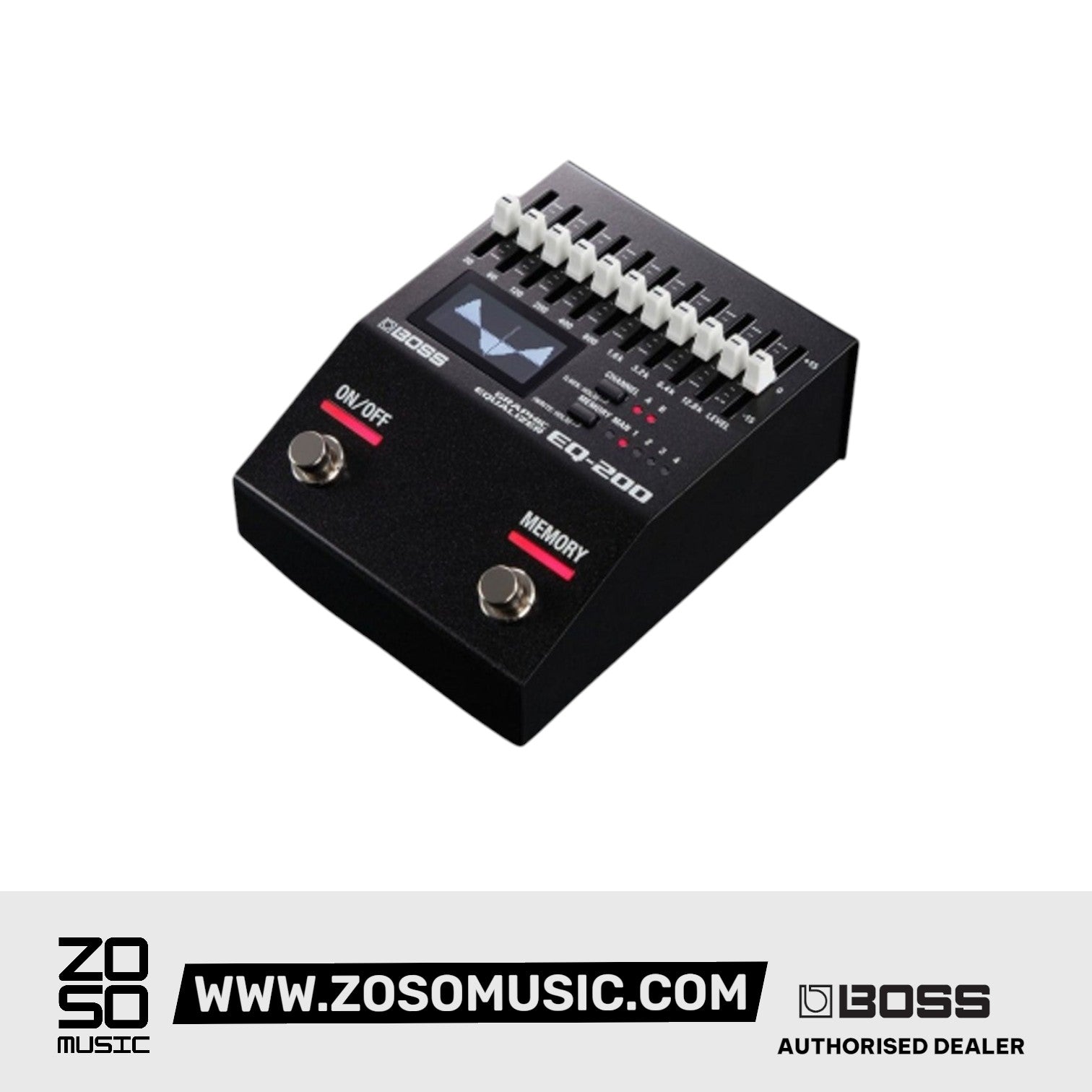

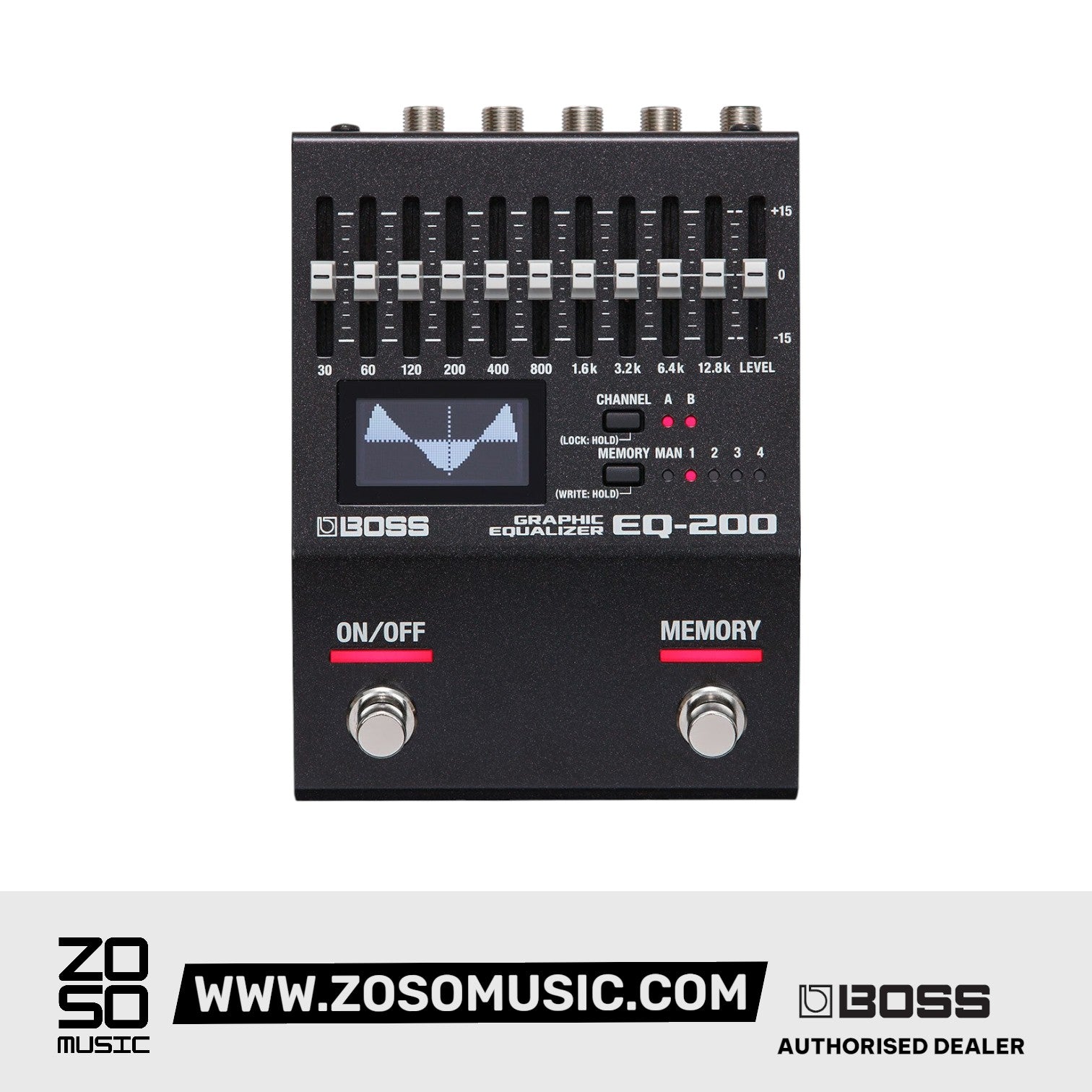

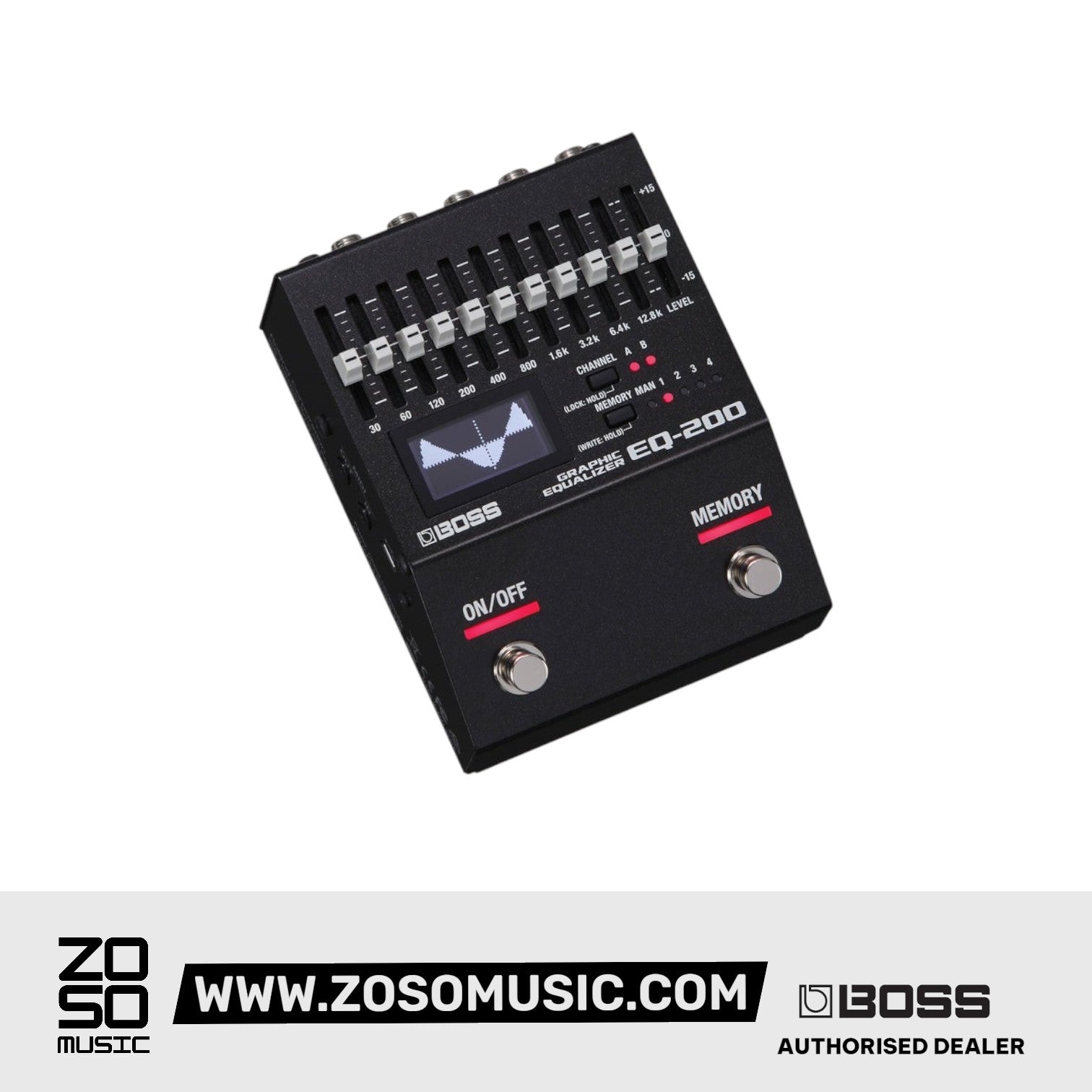

Boss EQ-200 Graphic Equalizer Pedal

With top-notch sound quality and three different frequency range settings, the BOSS EQ-200 is possibly the most versatile graphic equalizer pedal ever devised for guitar and bass. And thanks to its stereo I/O, it could be a big benefit to your keyboard rig too. The EQ-200 actually offers dual EQs that can be configured for stereo, series, or parallel operation, and an insert function even allows you to add external effects pedals with pre- and/or post-equalization. Each band offers 15dB of boost or cut, and thanks to its global level control, you can even tailor the BOSS EQ-200 graphic EQ pedal to be your go-to boost pedal as well.

Features:

• 10-band graphic EQ pedal for guitar, bass, and keyboards
• Stereo I/O is ideal for multi-amp rigs, stereo effects chains, and keyboards
• Three selectable frequency ranges allow you to zero-in on frequencies most applicable to your specific instrument
• 15dB of cut/boost for each band, plus a master level control
• Actually runs two 10-band EQs simultaneously, with options for stereo, series, or parallel routing
• Insert function allows you to connect external effects pedals for pre- and post-equalization
• Graphic display shows you the EQ curve
• Supports external footswitches, expression pedal, and MIDI I/O
• Four memory slots allow you to save and instantly recall your own custom patches
• Panel Lock function allows you to lock the controls to prevent unwanted changes
• High-quality 32-bit digital conversion with 96kHz resolution for pristine sound quality even at extreme time settings
• Micro USB jack for future functionality expansion via firmware updates

Specifications:

• Pedal Type:Graphic EQ
• Analog/Digital:Digital
• Inputs:2 x 1/4"
• Outputs:2 x 1/4"
• Other I/O:1 x 1/4" (control 1/2, expression)
• MIDI I/O:2 x 1/8" (in/out)
• USB:1 x Type Micro-B
• Bypass Switching:Buffered
• Power Source:9V DC power supply required (sold separately)
• Batteries:3 x AA
• Power Usage:170mA
• Height:2.37"
• Width:4"
• Depth:5.43"
• Weight:1 lb 7 oz.
