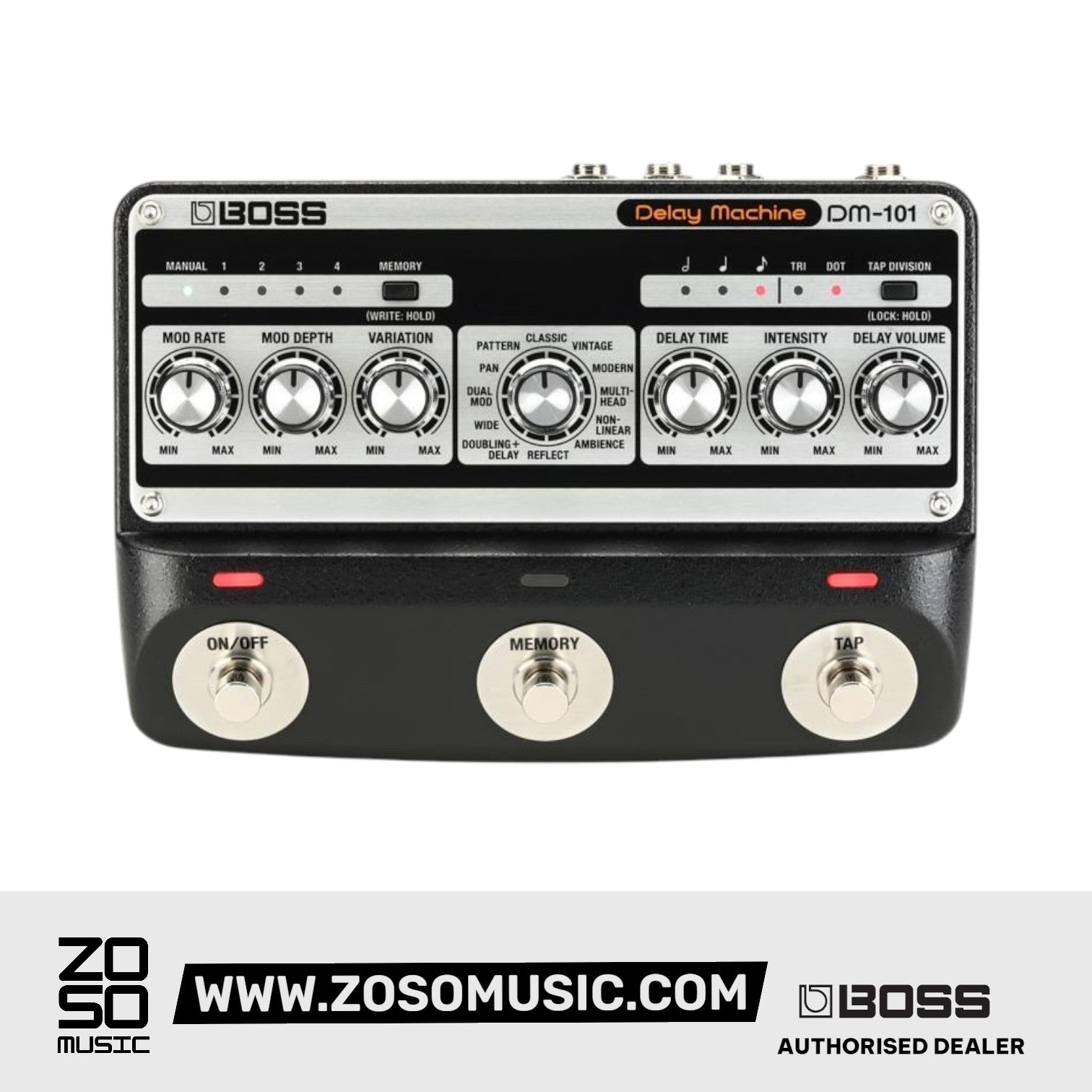

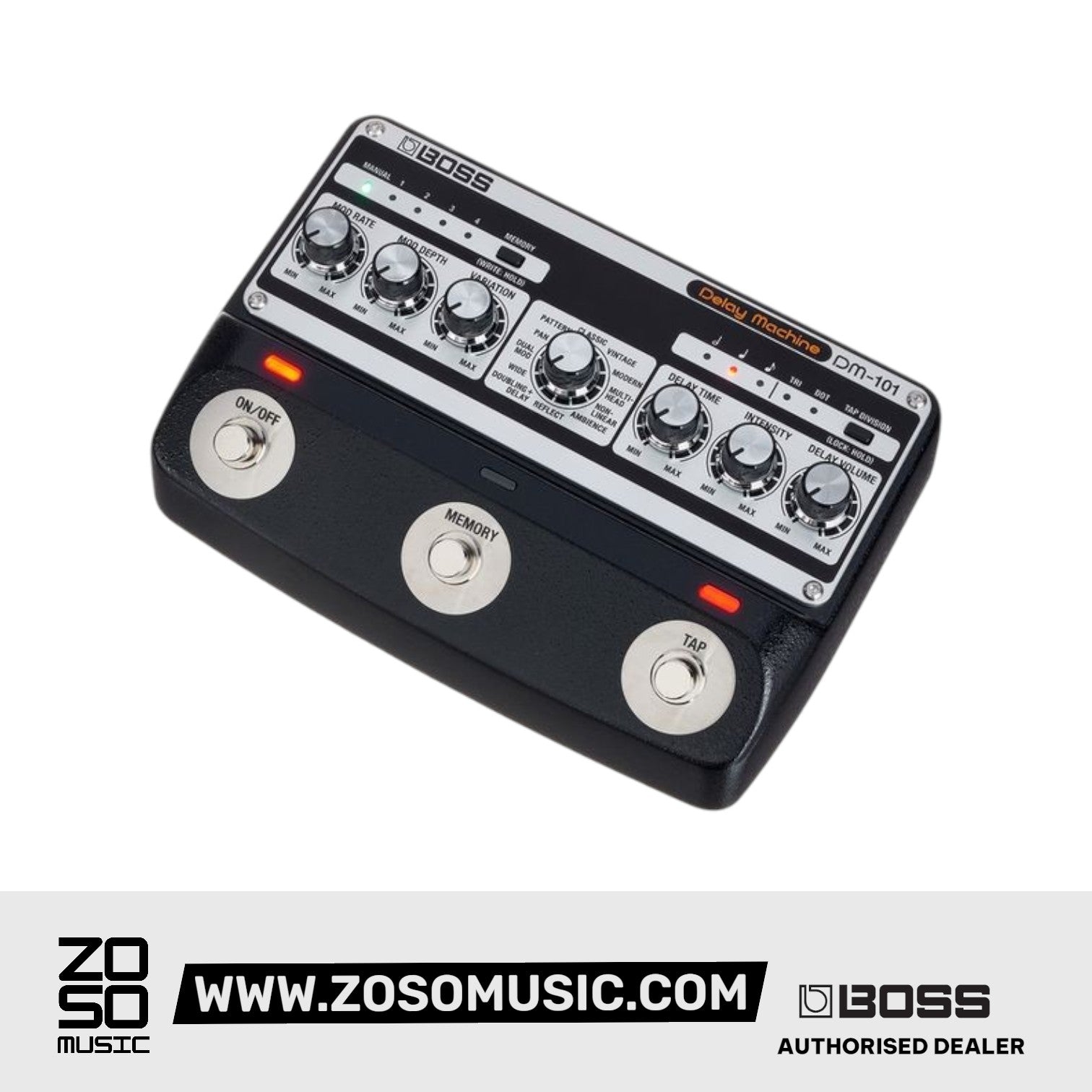

Boss DM-101 Delay Machine Pedal

The boss dm-101 delay machine is the surefire cure for your intense analog delay cravings. This digitally controlled, bbd-fueled guitar effects pedal gives you 12 inspiring modes ranging from gritty, vintage-style slaps to crystal-clear, modern-sounding repeats. The dm-101's modulation section includes rate and depth controls, along with a variation knob for added versatility. You also get stereo operation with flexible routing, selectable carryover to safeguard against chopped-off delay trails, and tap tempo with note subdivisions. The dm-101 includes four onboard memories, a total of 127 midi-accessible memories, and expandable control via external footswitches, expression pedals, and midi. Players who prefer the warm, saturated sound of an analog delay — and require precision digital control — will no longer have to compromise on either: the dm-101 delay machine gives you all the bucket-brigade-spawned tone you can handle, along with a level of flexibility that holds its own against any modern digital offering.

Features

• Bbd-fueled analog delay with modern cpu control
• 8 bucket brigade devices yield a warm, saturated, highly musical sound
• Digital control facilitates a level of control not available with typical bbd analog delays
• 12 inspiring modes range from gritty, vintage-style slaps to crystal-clear, modern-sounding repeats
• Modulation section with rate and depth controls, along with a variation knob for added versatility
• Stereo operation with flexible panning and routing
• Selectable carryover safeguards against chopped-off delay trails
• Tap tempo with note subdivisions
• 4 onboard memories; 127 midi-accessible memories
• Expandable control via external footswitches, expression pedals, and midi
• Configurable audio outputs accommodate blended operation, wet/dry rigs, and wet-only parallel setups

Specifications

• Pedal Type: delay
• Analog/digital: analog (Delay), Digital (Control)
• Presets: 4 Onboard Presets, 127 Midi Presets
• Effects: classic, Vintage, Modern, Multi-head, Non-linear, Ambience, Reflect, Doubling+delay, Wide, Dual Mod, Pan, Pattern
• Max Delay Time: 1200ms (Mode Dependant)
• Tap Tempo: yes
• Inputs: 1 X 1/4"
• Outputs: 2 X 1/4" (A/mono, B)
• Midi I/o: 2 X 1/8" Trs (In, Out)
• Other I/o: 1 X 1/4" Trs (Ctl 1, 2/expression)
• Usb: 1 X Micro-b (Program Updates)
• Bypass Switching: buffered Bypass
• Power Source: 9v Dc Power Supply
• Power Usage: 260 Ma
• Height: 2.04"
• Width: 7.56"
• Depth: 5.23"
• Weight: 1.87 Lbs.
