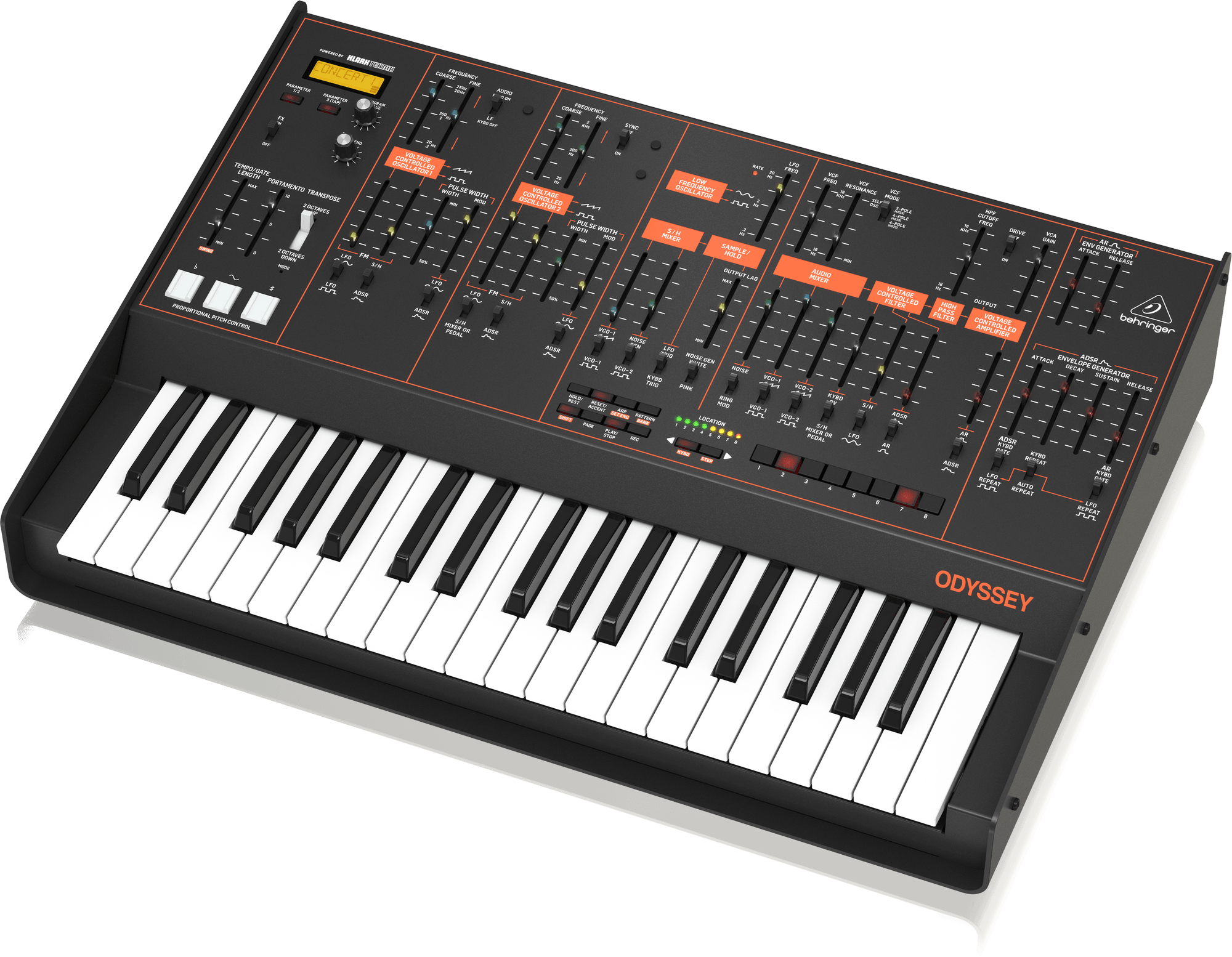

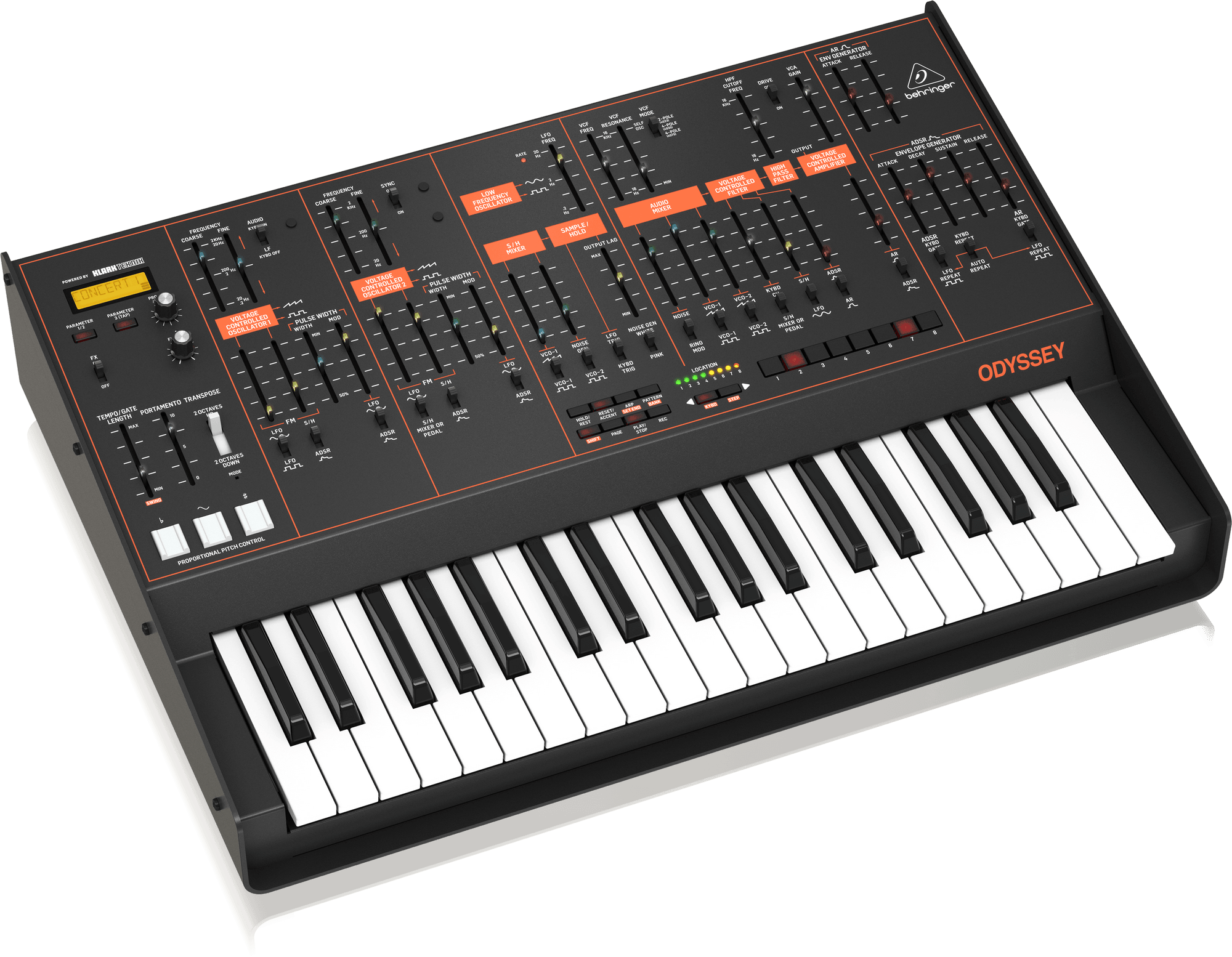

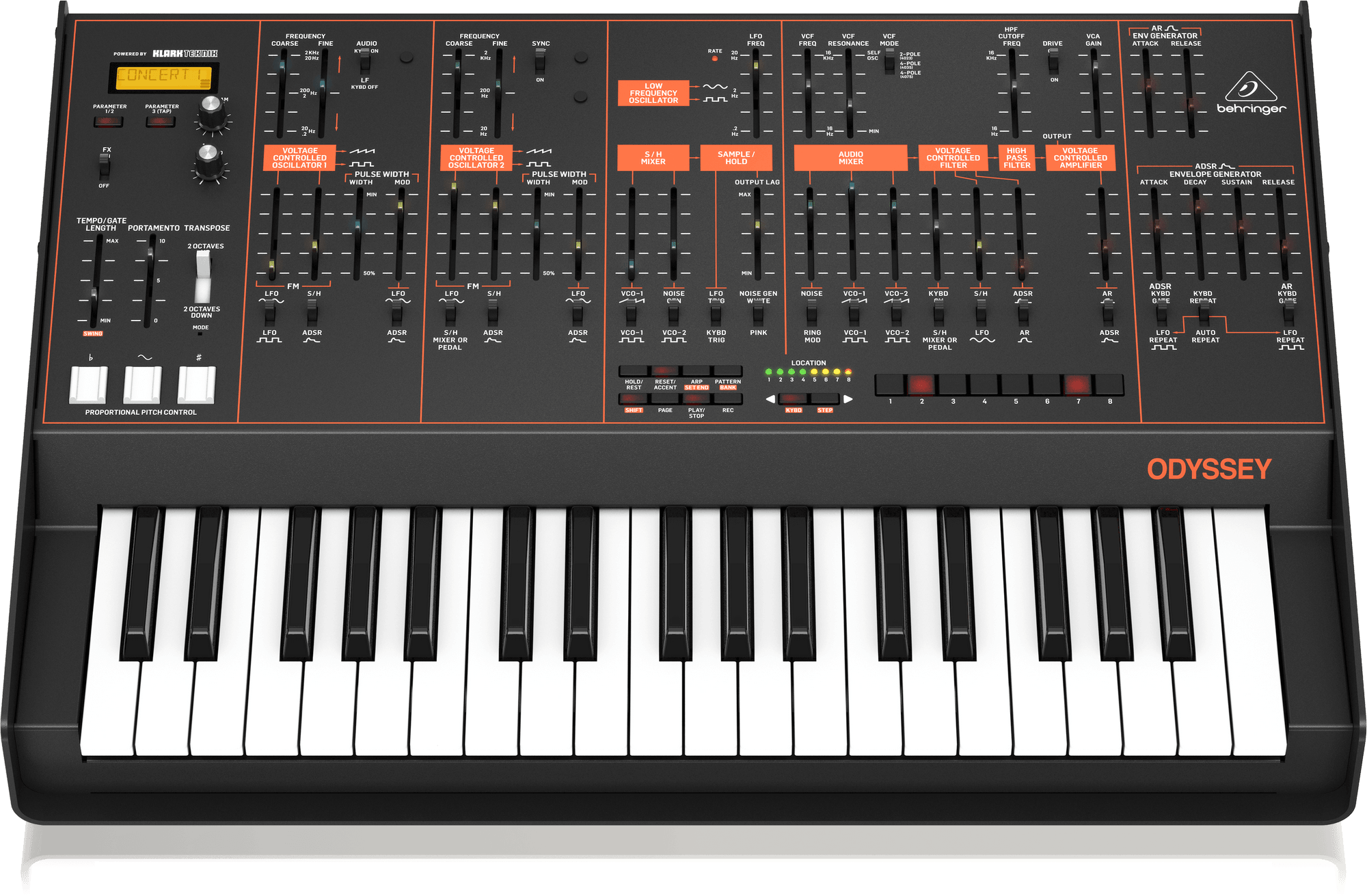

ODYSSEY

An ultra-affordable homage to the legendary ARP* synthesizer of the ’70s and beyond with all the features of the original and then some including: dual VCOs; 32-step sequencer with onboard storage; arpeggiator and world-class Klark Teknik FX that boast reverb, chorus, flanger, delay, pitch shifter and multi-effects, the ODYSSEY lets you conjure up virtually any sound with incredible finesse and ease. With its 37 semi-weighted full-size keys, pure analog signal path based on authentic VCO, VCF and VCA designs from the ’70s, the ODYSSEY is sure to become your favorite keyboard. Owning the ODYSSEY is like having your own personal time machine, enabling you to embrace the past – or make your imprint on the future!

True to the Original

Great care has been taken in engineering the ODYSSEY, including the true to the original analog circuitry, legendary VCO, VCF and VCA designs, all of which combine to make it easy to recreate the classic sound performance. This highly-focused attention to detail is what gives the ODYSSEY its ultra-flexible sound shaping capability, which covers everything from super-fat bass and lead tones to stunning effects – and all the way out to the otherworldly sounds of your imagination.

Big, Fat Tones

The inspired synthesizer tracks laid down in the 1970s are etched in the annals of progressive rock, disco and synth-pop music forever, making them truly classic in every sense of the word. The ODYSSEY lets you recreate all of that magic – or design incredibly fat and original sounds that will make you a legend in your own right!

FEATURES

• o/duophonic synthesizer with 2 analog oscillators
• 37 full-sized, velocity-sensitive semi-weighted keys
• Pure analog signal path based on legendary VCO, VCF, and VCA designs from the 1970s
• 2 voices with sawtooth, square/pulse with pulse-width modulation, and sine/square wave LFO
• 3 VCF modes: 2-pole MKI (4023), 4-pole MKII (4035), and 4-pole MKIII (4075)
• Easy-to-use 32-step sequencer with 64 sequence locations
• Arpeggiator with wide patterns for great sound effects
• World-class Klark Teknik FX (fully bypassable) with reverb, chorus, flanger, delay, pitch shifter, and multi-effects

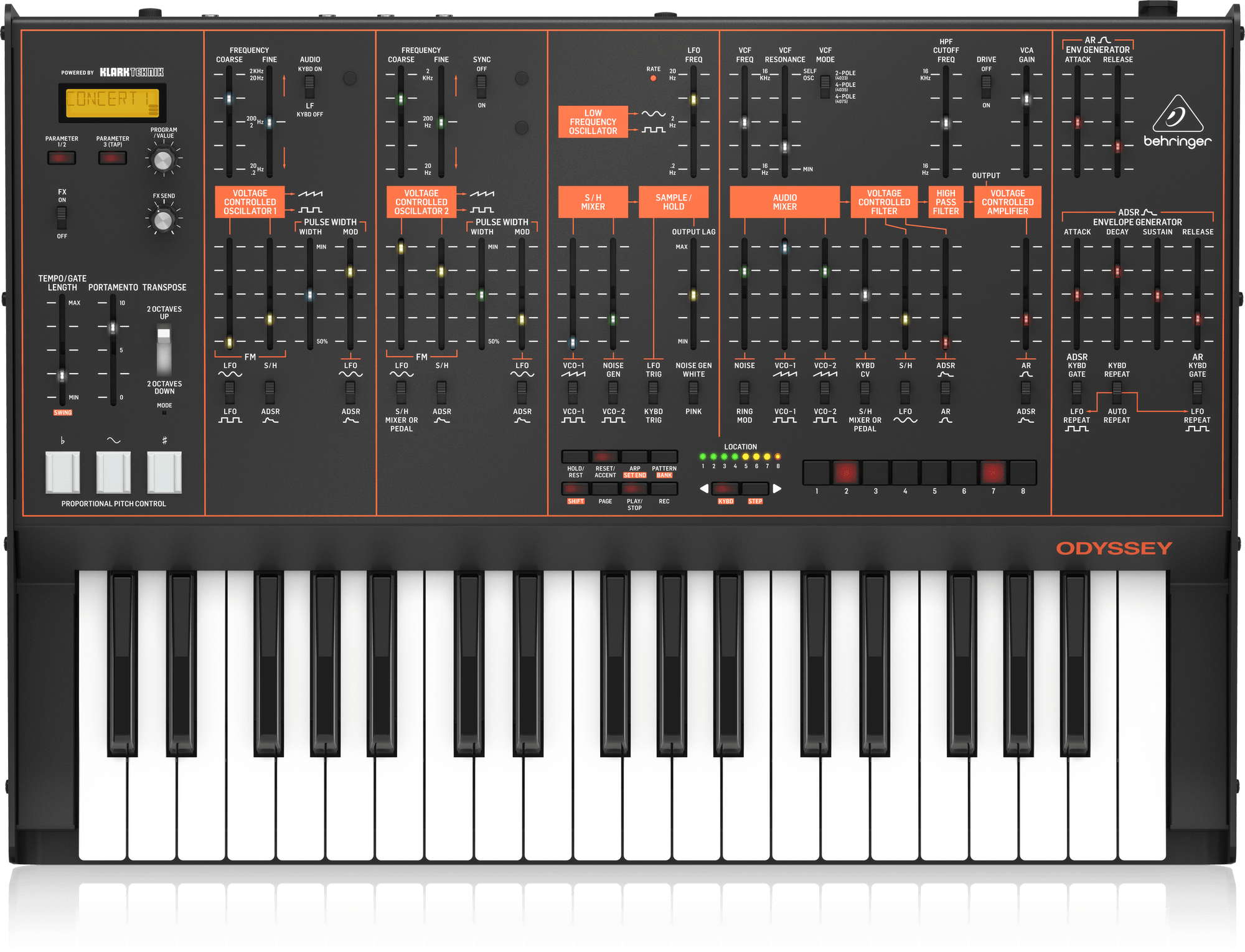

• 35 illuminated, dimmable LED sliders and 25 switches to give you direct and real-time access to all important parameters
• 3 pressure-sensitive buttons for pitch and modulation control
• Powerful pink/white noise generator with Sample & Hold plus lag processor

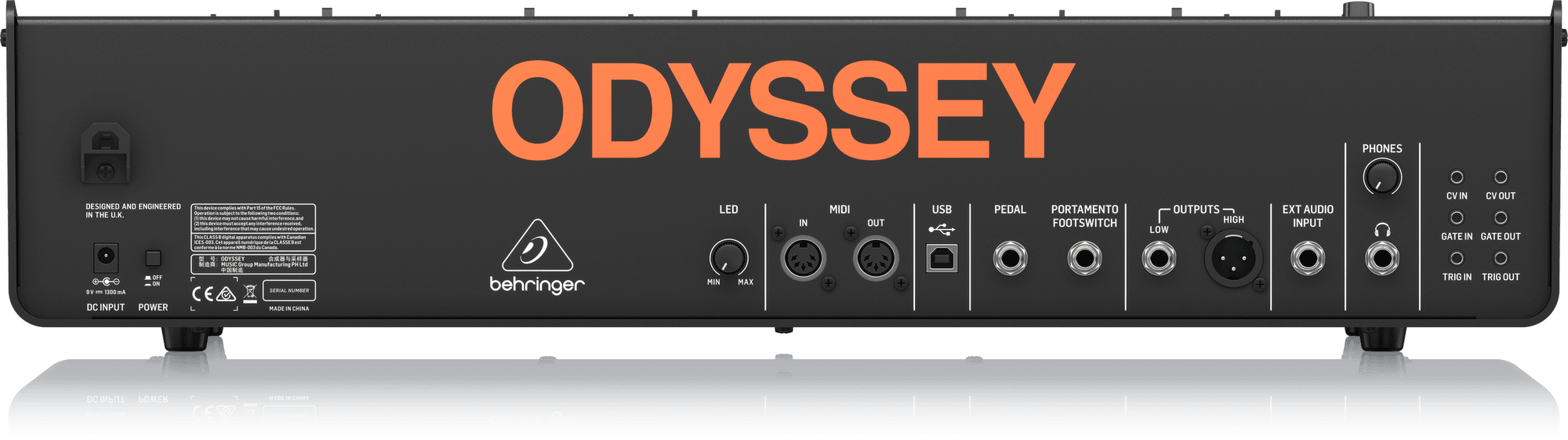

• Comprehensive USB/MIDI and CV connectivity
• Balanced XLR (High) and 1/4" (Low) Main outputs
• 1/4" External Audio In, Headphones Out with level control
• Roadworthy all-metal chassis

SPECIFICATIONS

• Type:Keyboard Synthesizer
• Analog/Digital:Analog
• Number of Keys:37
• Type of Keys:Semi-weighted, Full size, Velocity-sensitive
• Other Controllers:3 x Pressure-sensitive Buttons (pitch, modulation)
• Polyphony:Mono/Duophonic
• Oscillators:2 x Analog VCO ; square/pulse, sawtooth, pulse-width modulation
• LFO:1 x LFO ; Sine/Square wave
• Filter:2-pole MKI, 4-pole MKII, 4-pole MKIII
• Envelope Generator:1 x ADSR, 1 x AR
• Effects Types:Klark Teknik Reverb, Chorus, Flanger, Delay, Pitch Shifter
• Arpeggiator:8 patterns
• Sequencer:32-step, 64 patterns
• Audio Inputs:1 x 1/4" (external audio input)
• Audio Outputs:1 x XLR (high), 1 x 1/4" (low)
• Headphones:1 x 1/4"
• USB:1 x Type B
• MIDI I/O:In/Out/USB
• Pedal Inputs:1 x 1/4" (pedal), 1 x 1/4" (portamento footswitch)
• Other I/O:CV in/out, Gate in/out, Trig in/out
• Features:LED faders
• Power Supply:9V DC 1300mA power supply
