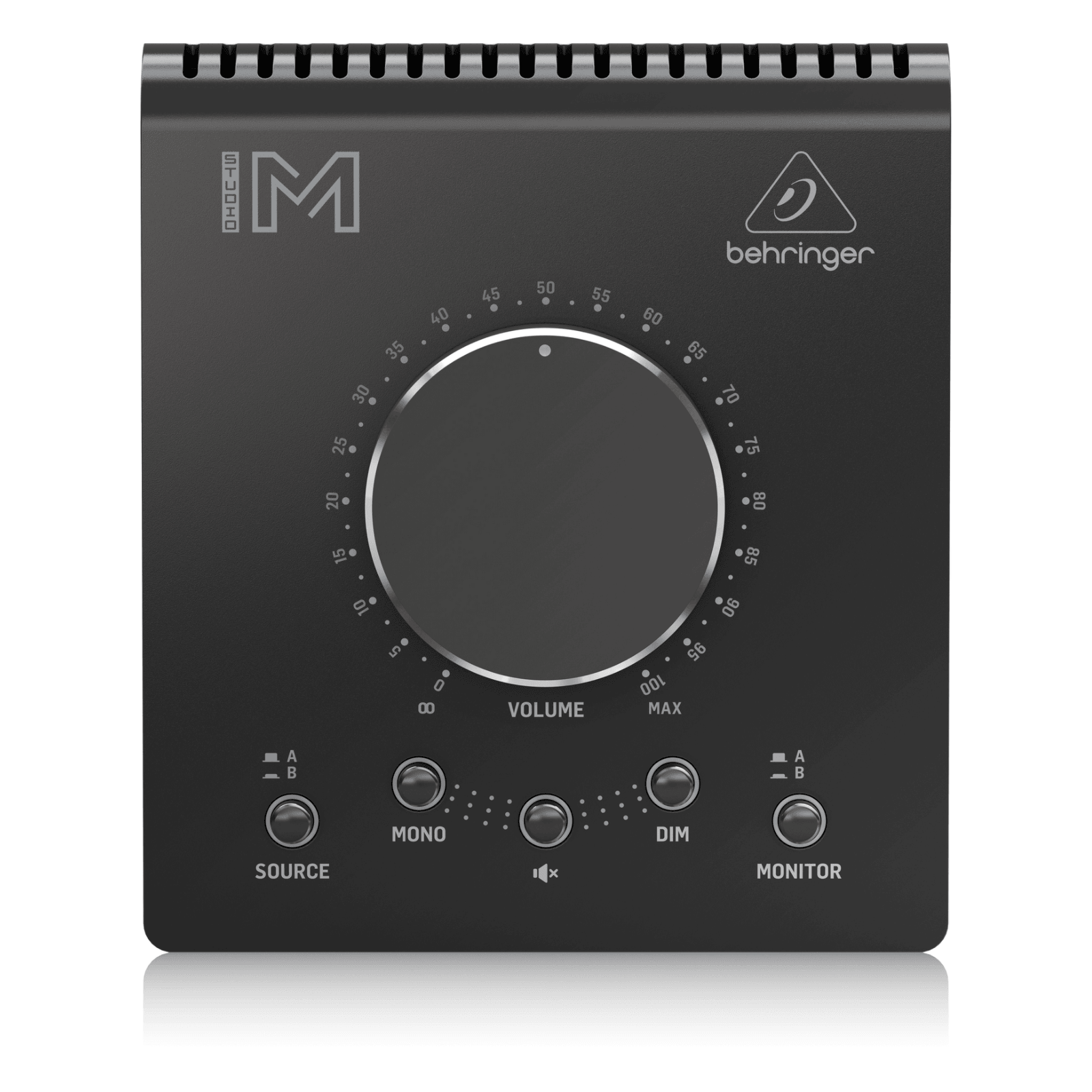

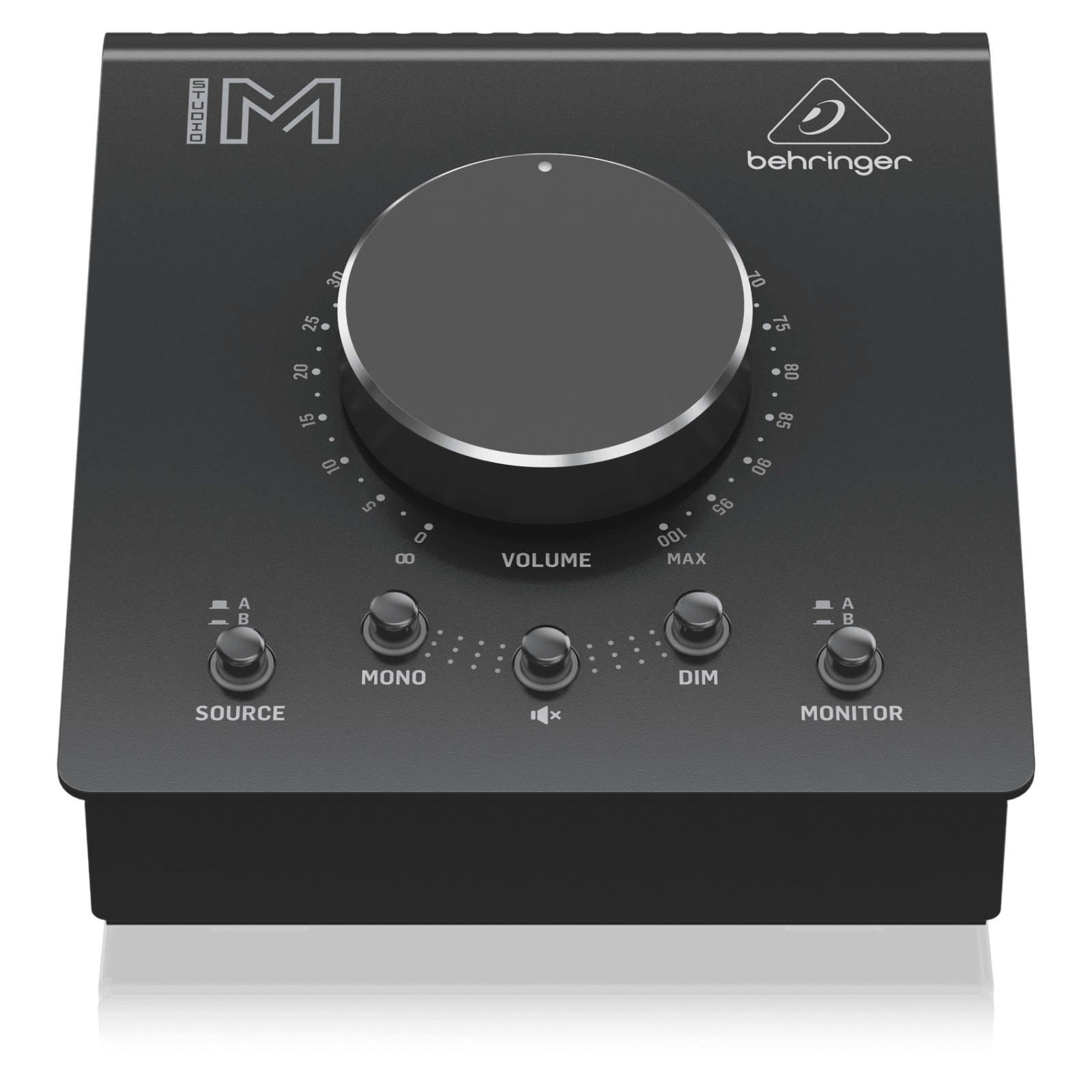

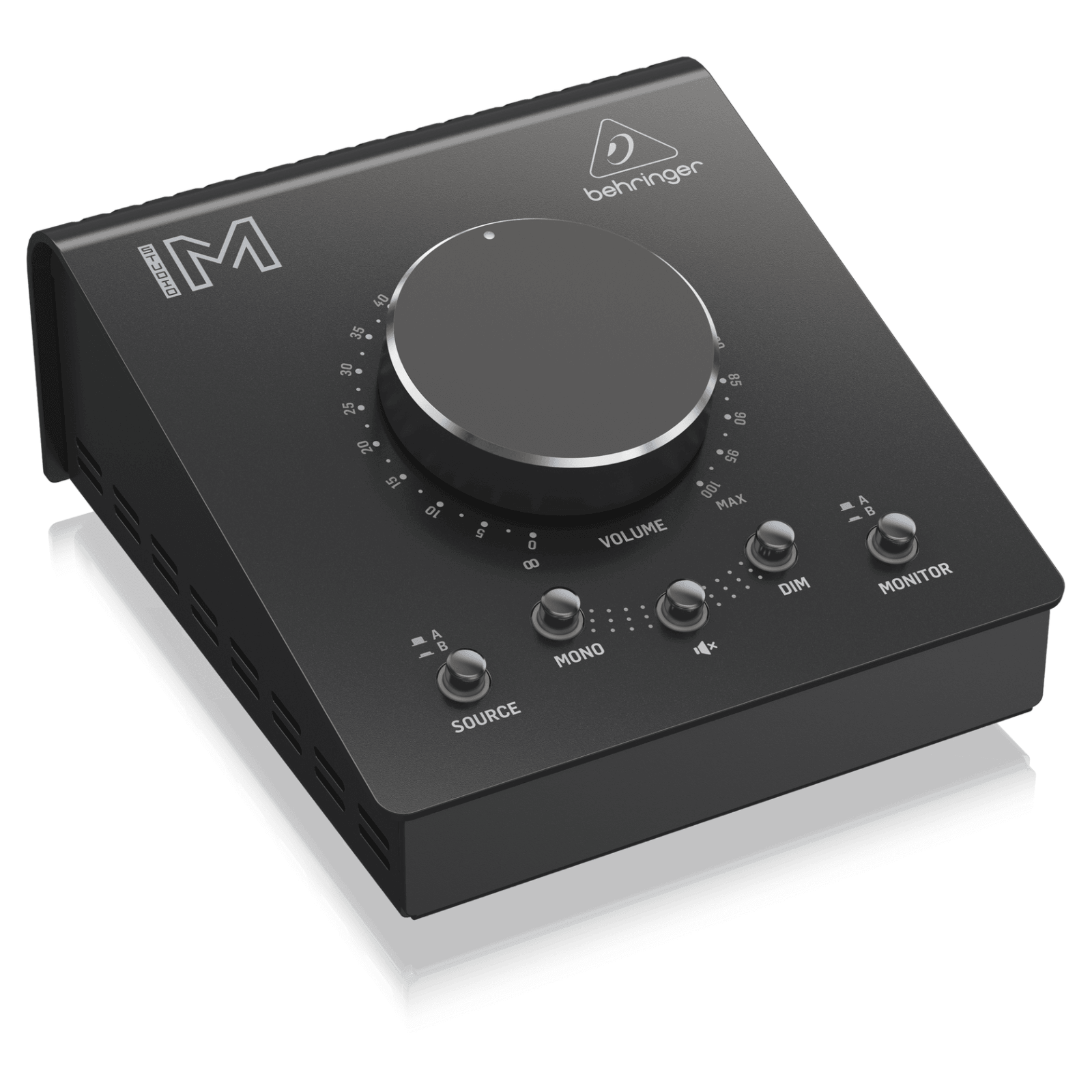

Behringer Studio M Premium Passive Stereo Monitor And Volume Controller

Premium Passive Studio Controller

STUDIO M

The STUDIO M Premium Passive Studio Controller takes controlling your setup to the next level. Instantly switch between any two audio sources and monitors and adjust their level. The large volume knob makes it easy to dial-in the perfect level every time, without having to reach for your mixer – or your mouse! With two pairs of input and output connectors as well as a 3.5 mm (1/8”) stereo input, the STUDIO M is ultra-easy to connect to your current system – and so affordable.

Crystal Clear Signal Path

The STUDIO M is the ideal solution for a home studio or as part of a larger setup. Its compact size makes it a breeze to place anywhere in your studio while it’s active-free circuitry guarantees the purest signal path.

Big Knob Precision

In order to give you ultra-precise level control over your audio sources, the STUDIO M sports a large volume knob. This lets you make quicker and more accurate adjustments on the fly.

Specification:

Inputs

• Line inputs: 2 stereo
• Type: 4 x 1/4" TRS, balanced or unbalanced
• Alternative input B: 1 x 1/8" TRS, stereo

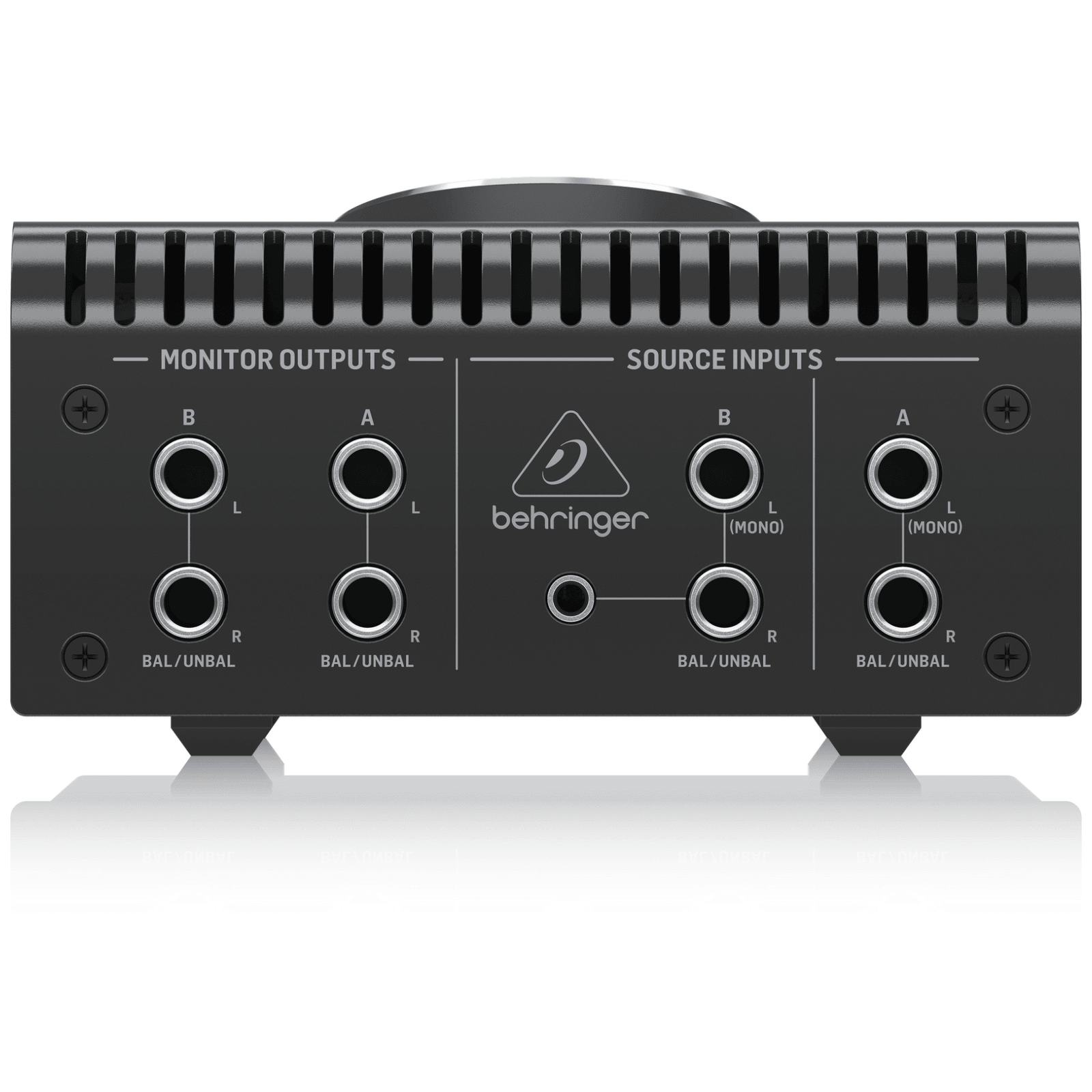

Outputs

• Line outputs: 2 stereo
• Type: 4 x 1/4" TRS, balanced or unbalanced

Controls

• Volume: 0 - 100%
• Playback controls: Mono, Mute, Dim
• Monitor select: A, B
• Source select: A, B

System

• Frequency response: 20 Hz to 20 kHz (±0.5 dB)
• Signal-to-noise ratio: <-90 dBu RMS, un-weighted
• Distortion (THD+N): <0.01% @ 1 kHz, unity gain, 4 dBu input
• Crosstalk: <-60 dB @ 1 kHz, unity gain, 4 dBu input

Attenuation

• Muted: -100 dB
• Dim: 20 dB

Maximum Levels

• All inputs: +22 dBu
• All outputs: +15 dBu

FEATURES:

• All-in-one Master Volume controller, Source selector and Monitor switcher
• Active-free circuitry guarantees purest signal path
• Large Volume knob for extremely precise level adjustments
• Convenient Mono, Mute and Dim functions right at your fingertips
• 2 pairs of high-quality input connectors and 3.5 mm (1/8") stereo input perfectly connect to your DAW
• 2 pairs of high-quality outputs connectors to connect to your studio monitors
