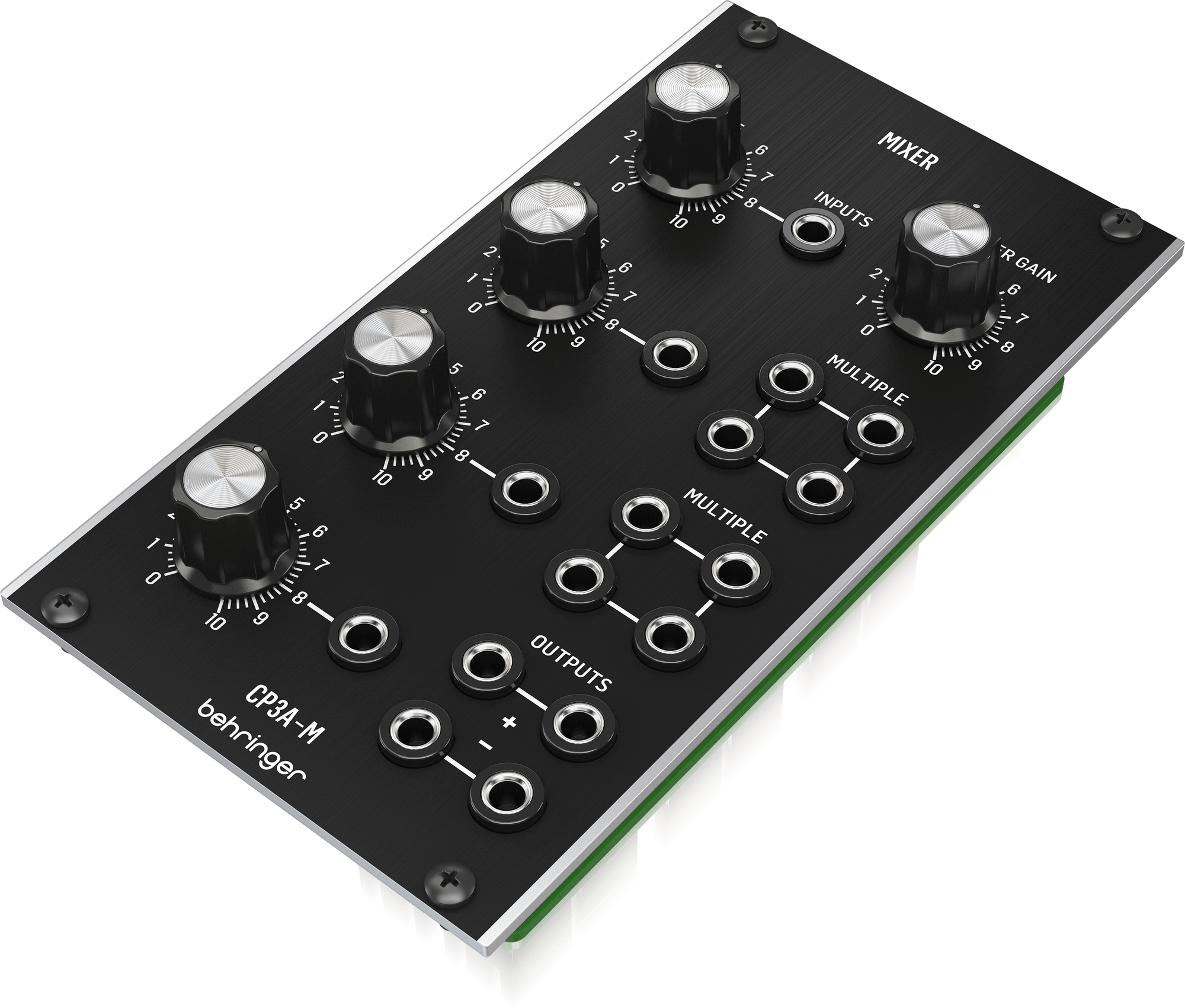

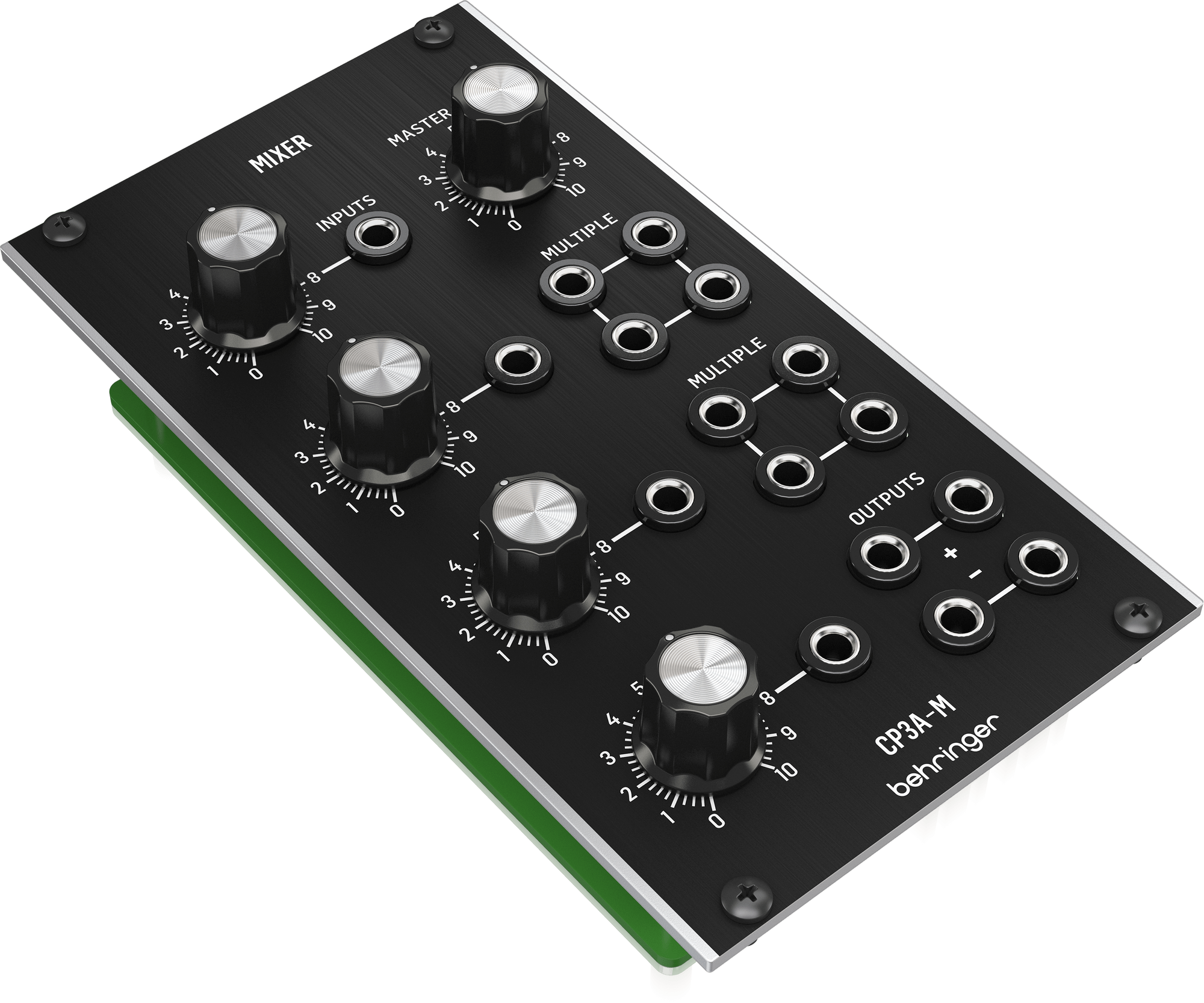

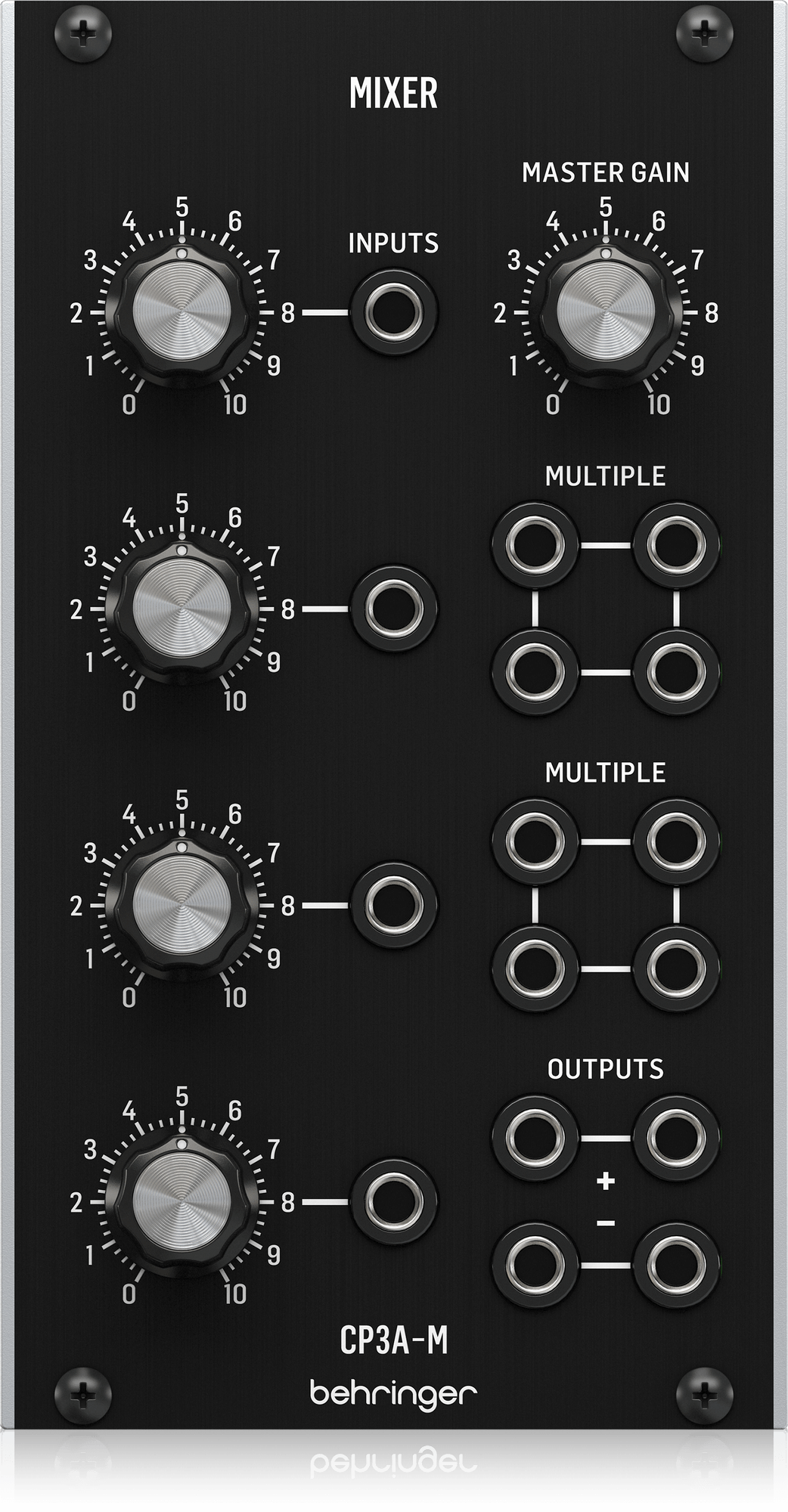

Behringer CP3A-M Mixer - Analog Mixer/Utility Eurorack Module

Behringer CP3A-M Mixer - Analog Mixer/Utility Eurorack Module

The Behringer CP3A-M is a faithful reproduction of a mixer/utility module from a legendary 1970s modular synthesizer system. Its straightforward controls offer extensive flexibility for building complex patches and creating never-before-heard sounds. The CP3A-M contains four channel inputs with channel gain knobs, a master gain knob, two sets of outputs with negative and positive polarity, and two sets of multiples with four outputs each. All of this adds up to vast routing options that will blow open your Eurorack system’s creative potential. Eurorack enthusiasts at Zoso Music are more than excited about Behringer’s System 55 and System 100 Eurorack modules because they provide an affordable and fun way to enter the world of modular synthesis. For more information on the Behringer CP3A-M and all things Eurorack, reach out to your Zoso Music Sales Engineer today!


FEATURES

• Vintage-sounding CP3A-M Mixer module from the '70s
• Authentic reproduction of the circuitry from the "Modular 55, 35 & 15" Series
• Artist roster includes world's most famous pop, rock and jazz musicians
• Module features 4 input channels with separate controls and 2 sets of 2 outputs

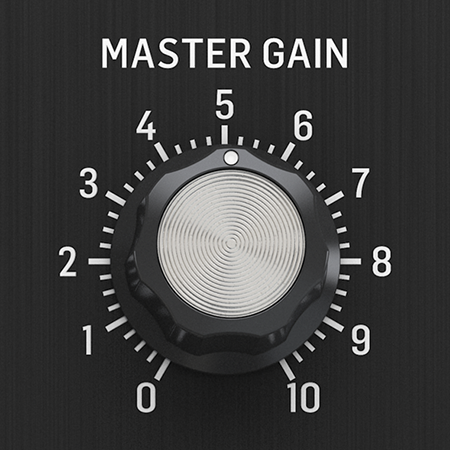

• Master Gain for overall control of output volumes

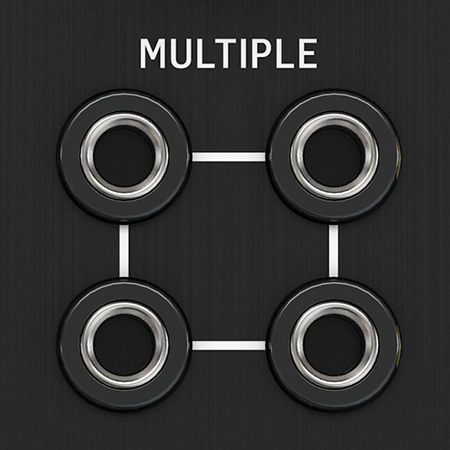

• Dual 4-point multiple circuit for flexible patching
• 5 controls give you real-time access to all important parameters
• Eurorack specs: 14 HP, 30 mA +12 V, 30 mA -12 V

SPECIFICATIONS

Controls
- Channel gain : 4 x rotary knob
- Maximum input level : +14 dBu
- Master gain : 1 x rotary knob
- Maximum output level : +14 dBu

Signal Connections
- Inputs : 4 x 3.5 mm TS jack, mono
- Impedance : 10 kΩ unbalanced
- Multiple : 8 x 3.5 mm TS jack, mono
- Arrangement : 2 sets of 4 parallel jacks, passive
- Compatibility : CV and audio signals
- Outputs : 4 x 3.5 mm TS jack, mono
- Impedance : 220 Ω to 5 kΩ, unbalanced
- Output noise : < -85 dBu, 22 Hz - 22 kHz

Power
- Power supply : Eurorack
- Current draw : 30 mA (+12 V), 30 mA (-12 V)
