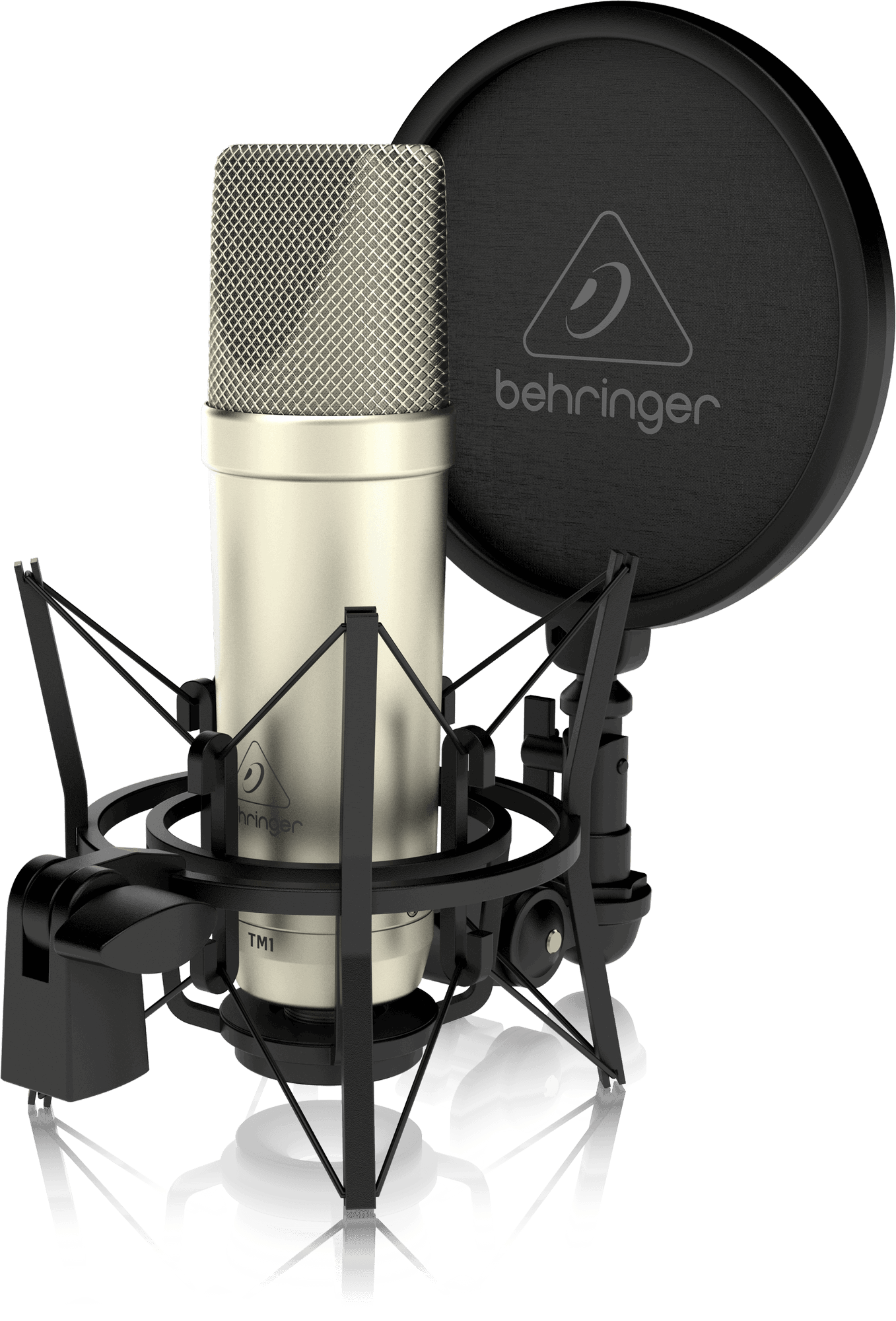

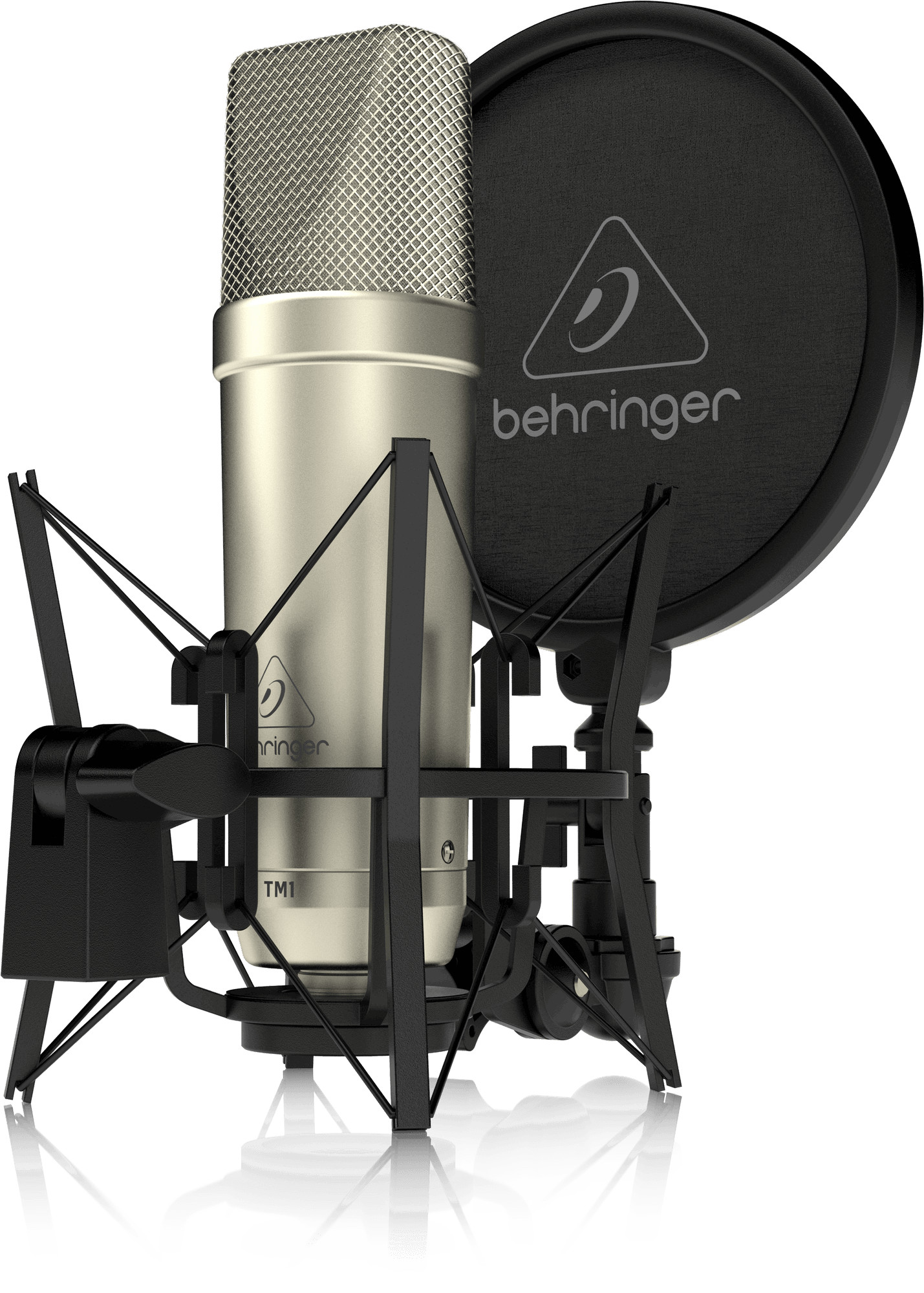

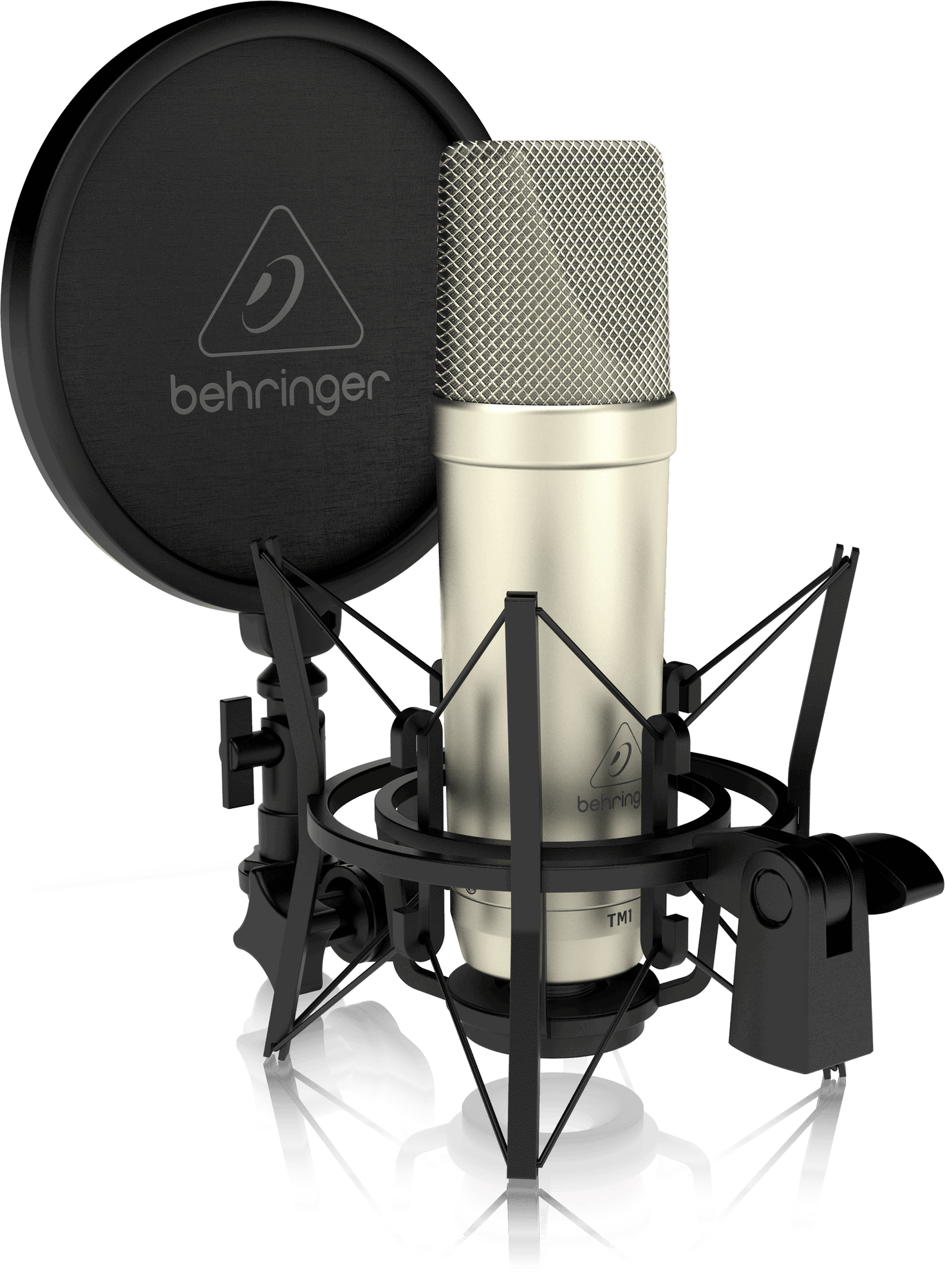

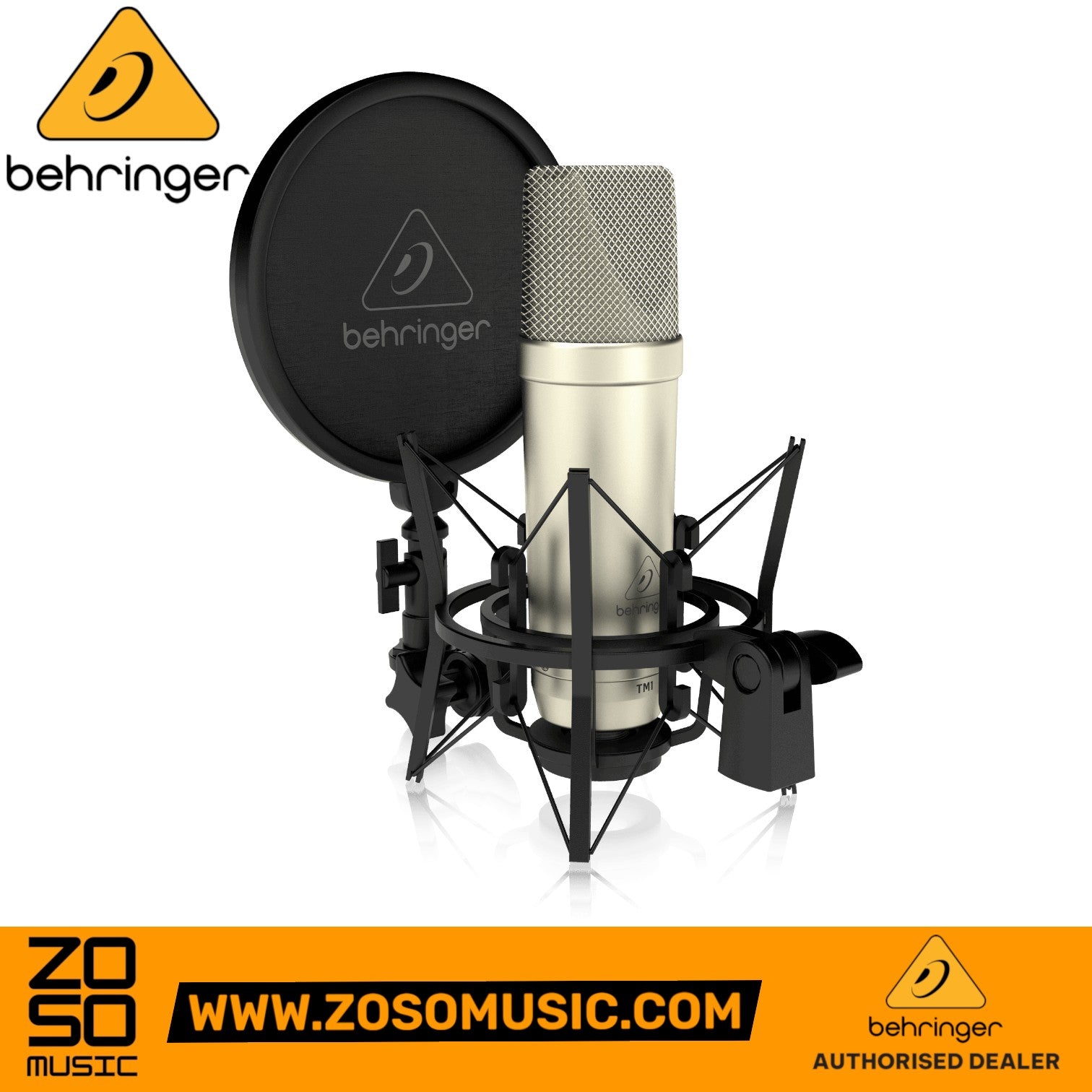

Behringer TM-1 Complete Vocal Recording Package (TM1 / TM 1)

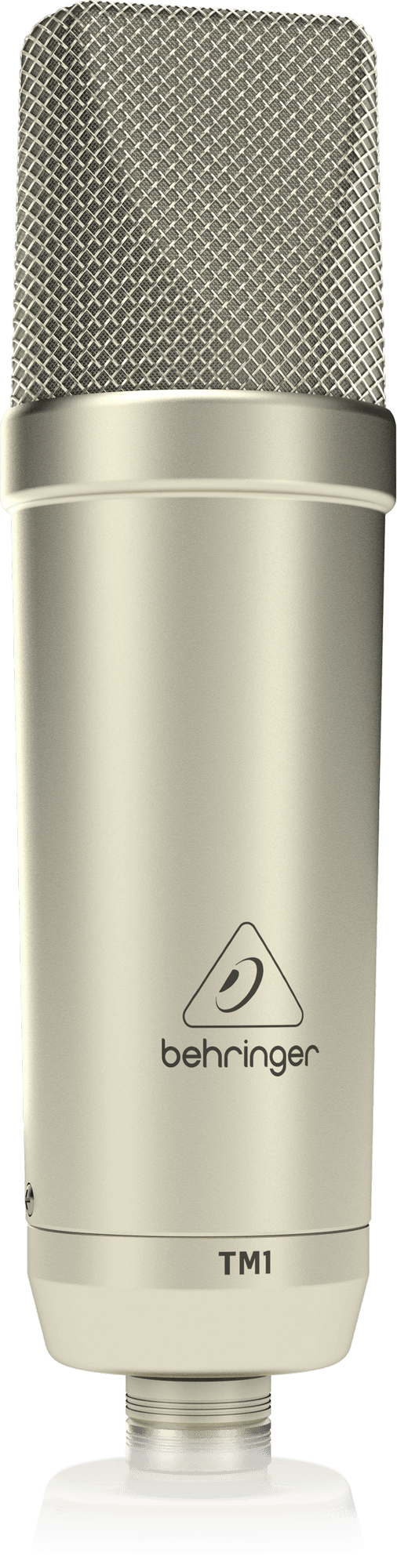

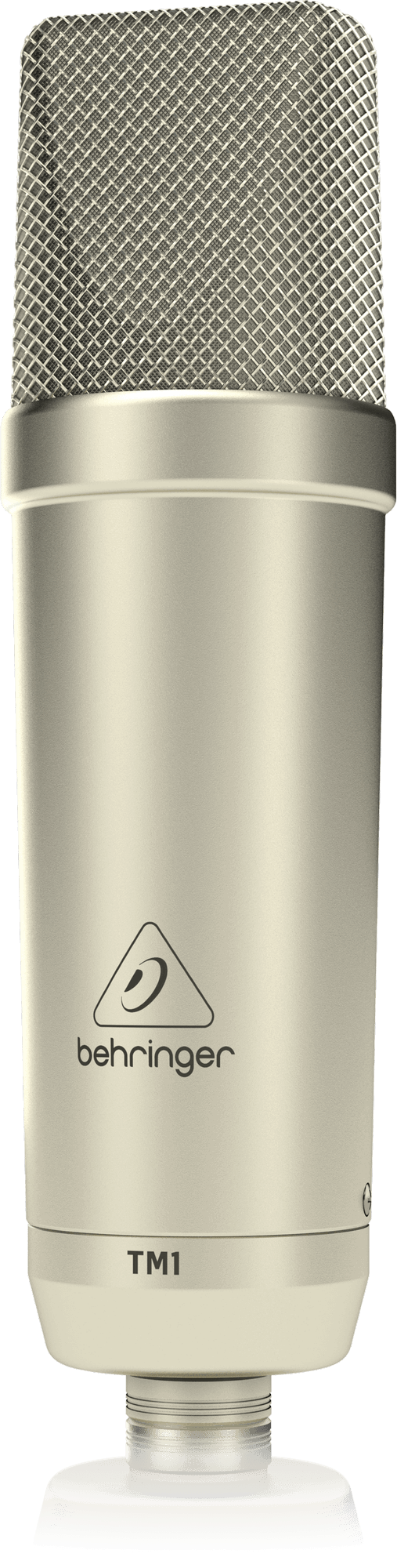

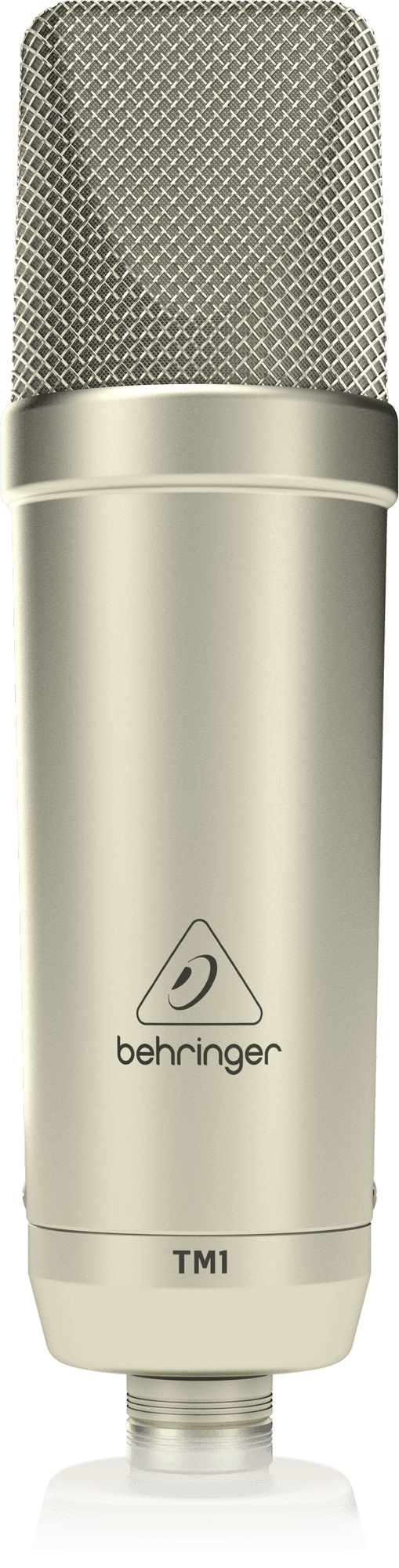

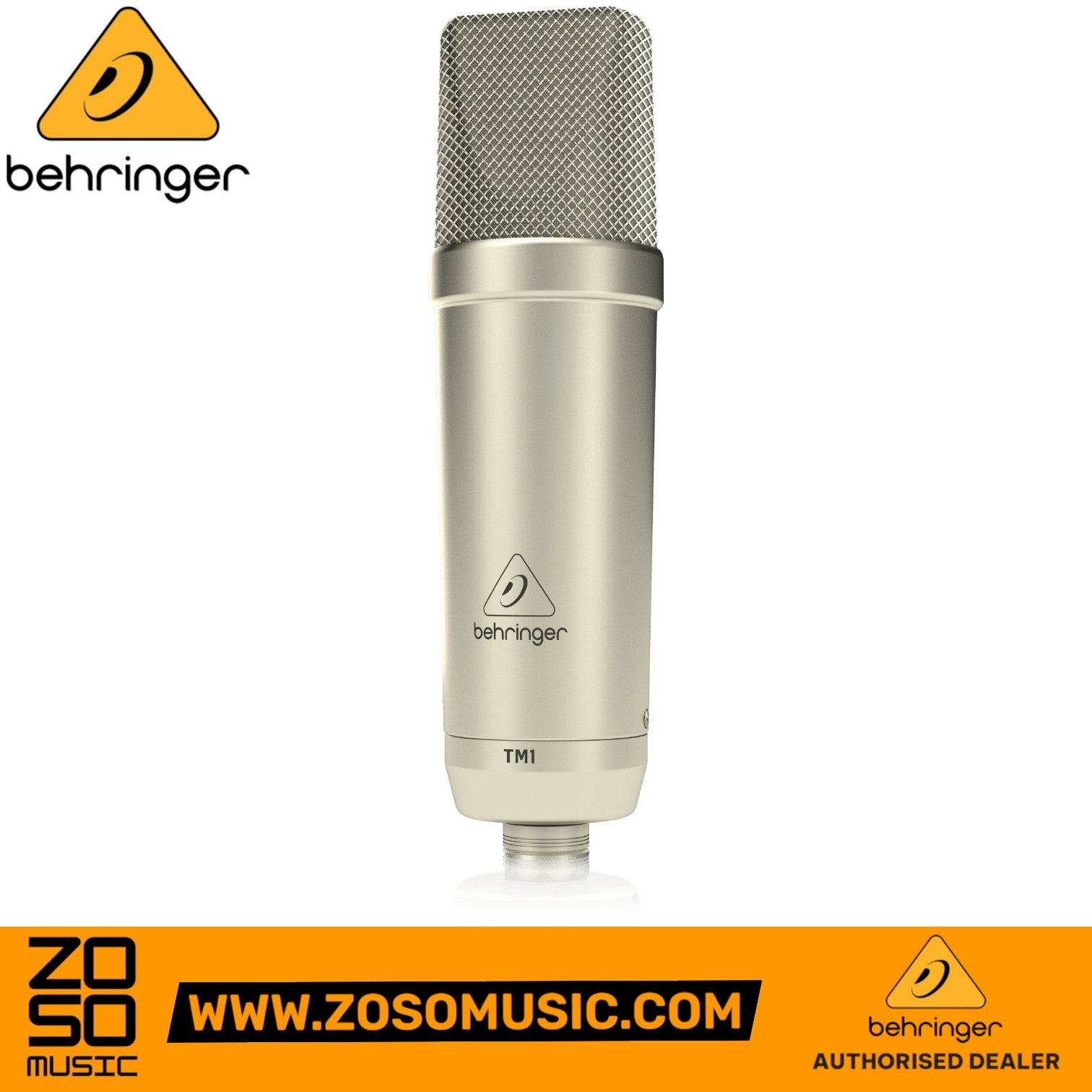

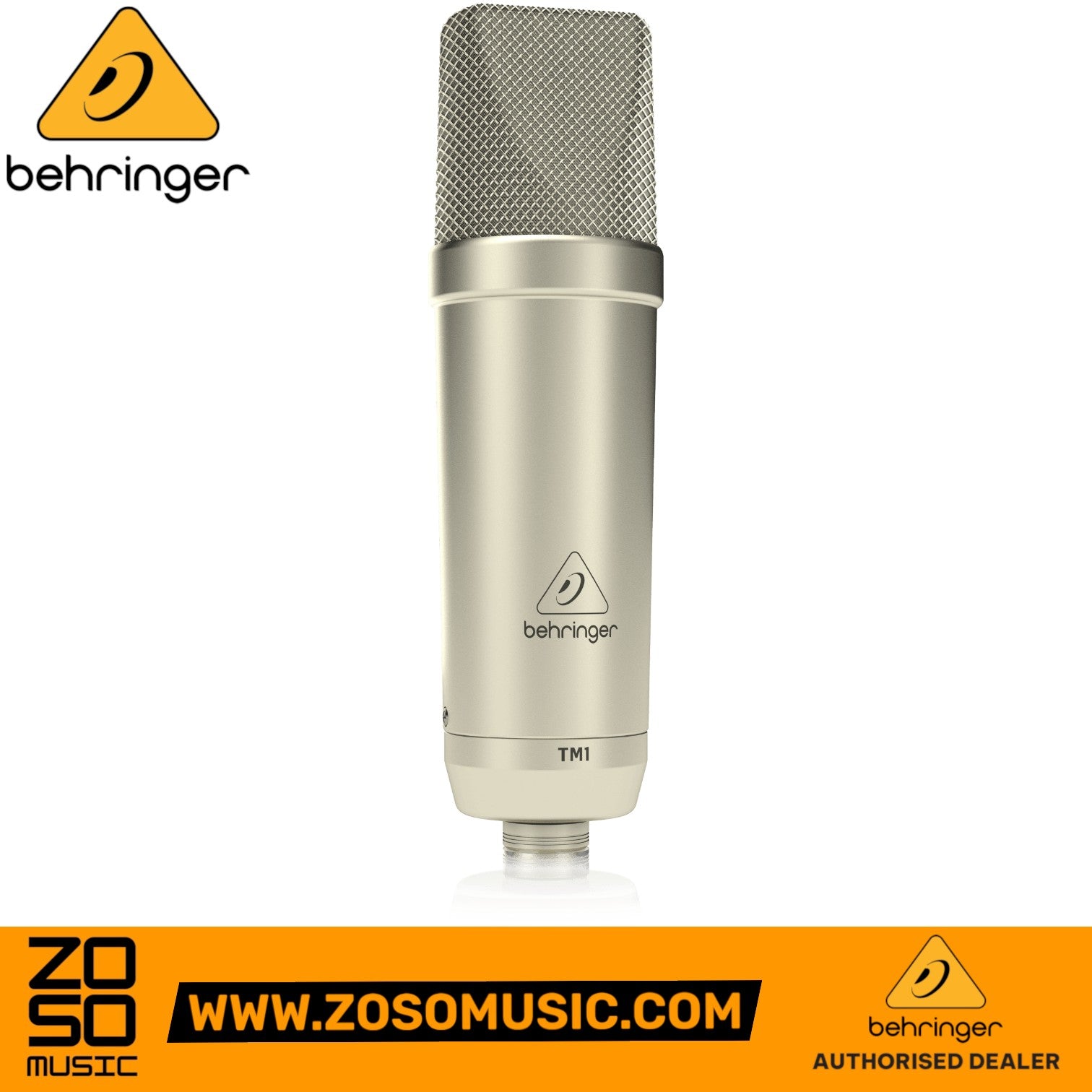

The large-diaphragm TM1 Condenser Microphone is designed to capture your sounds with incredible realism, sensitivity and accuracy. Featuring premium-grade electronic components and a pure gold-plated diaphragm capsule, the TM1 captures pristinely clear audio via its cardioid pickup pattern design and wide 132 dB dynamic range. This versatile microphone is well suited for a variety of applications ranging from recording studios to broadcast stations.

FEATURES

• Capsule
• 1" super-large gold-plated diaphragm
• Acoustic principle
• Pressure gradient
• Directional pattern
• Cardioid
• Electronics
• JFET preamplifier with bipolar output stage
• Frequency range
• 20 Hz - 20 kHz
• Sensitivity
• -34 dB ± 2 dB @ 1 kHz (0 dB)
• Equivalent noise
• 5 dBA SPL (per IEC 651)
• Maximum input
• 138 dB @1 kHz (≤ 1% THD)
• Dynamic range
• >132 dB (per IEC 651)
• Maximum SPL
• 138 dB @1 kHz (≤ 1% THD)
• SNR
• 5 dB SPL @ 1 kHz, (relative to 1 Pa, per IEC 651)
• Power requirement
• +48 V phantom power
• Output impedance
• 100 Ohms ±30% @ 1 kHz
• Output connection
• 3 pin XLR, balanced output between Pin 2 (+), Pin 3 (-) and Pin 1 (ground)
• Dimensions
• 54 x 189 mm (2.1 x 7.4")
