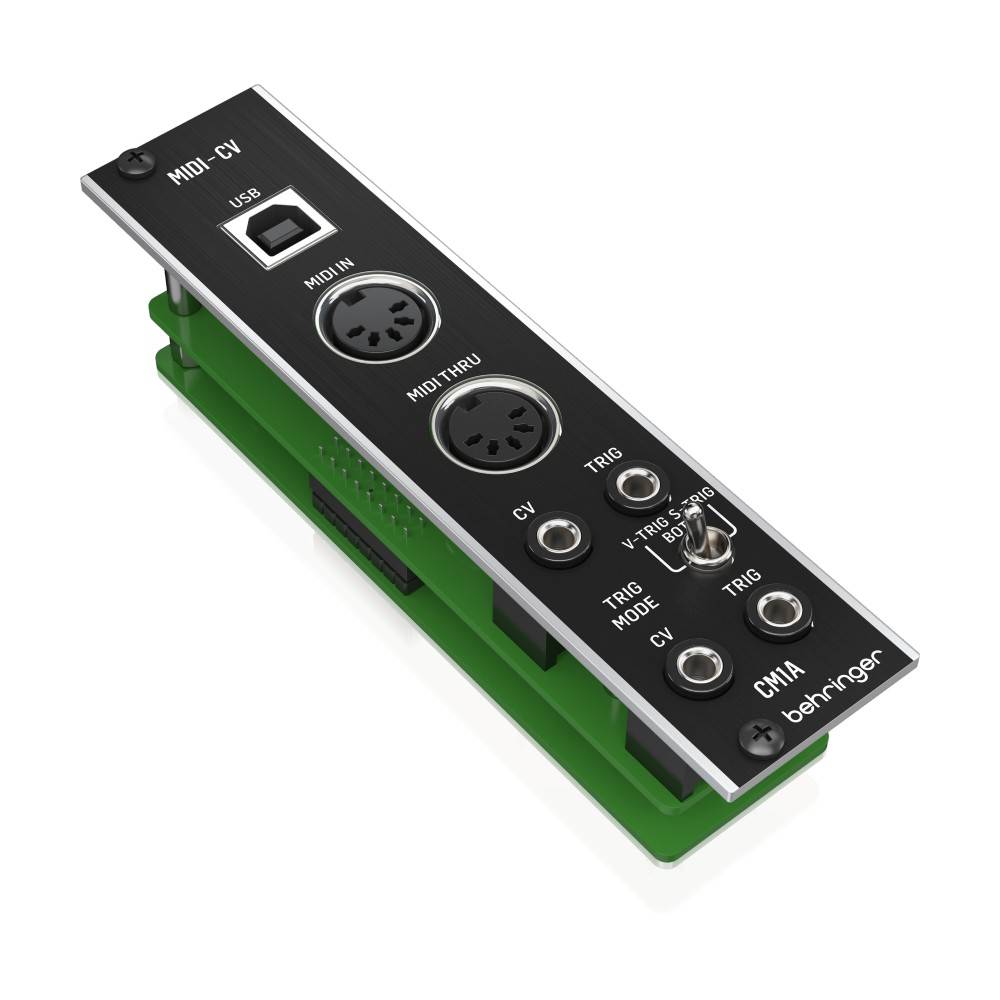

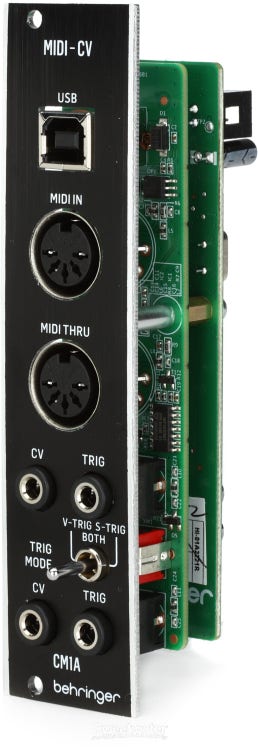

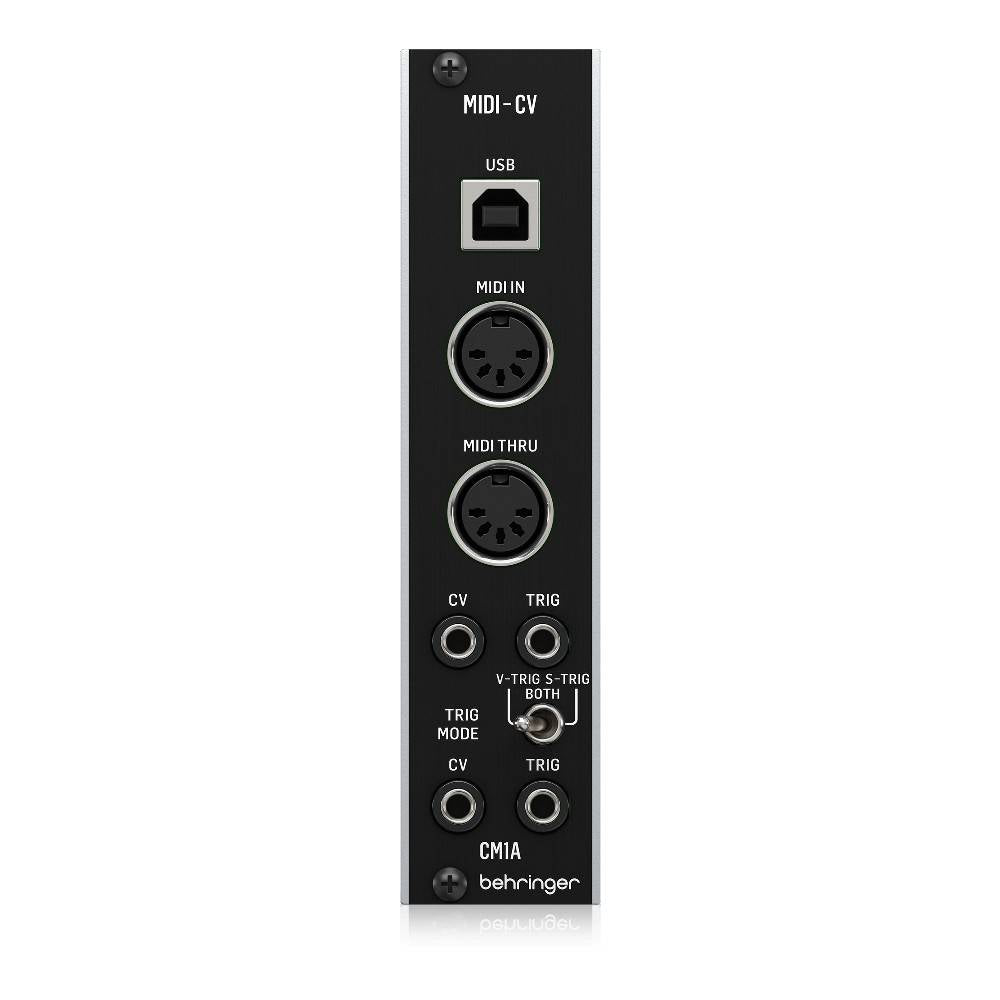

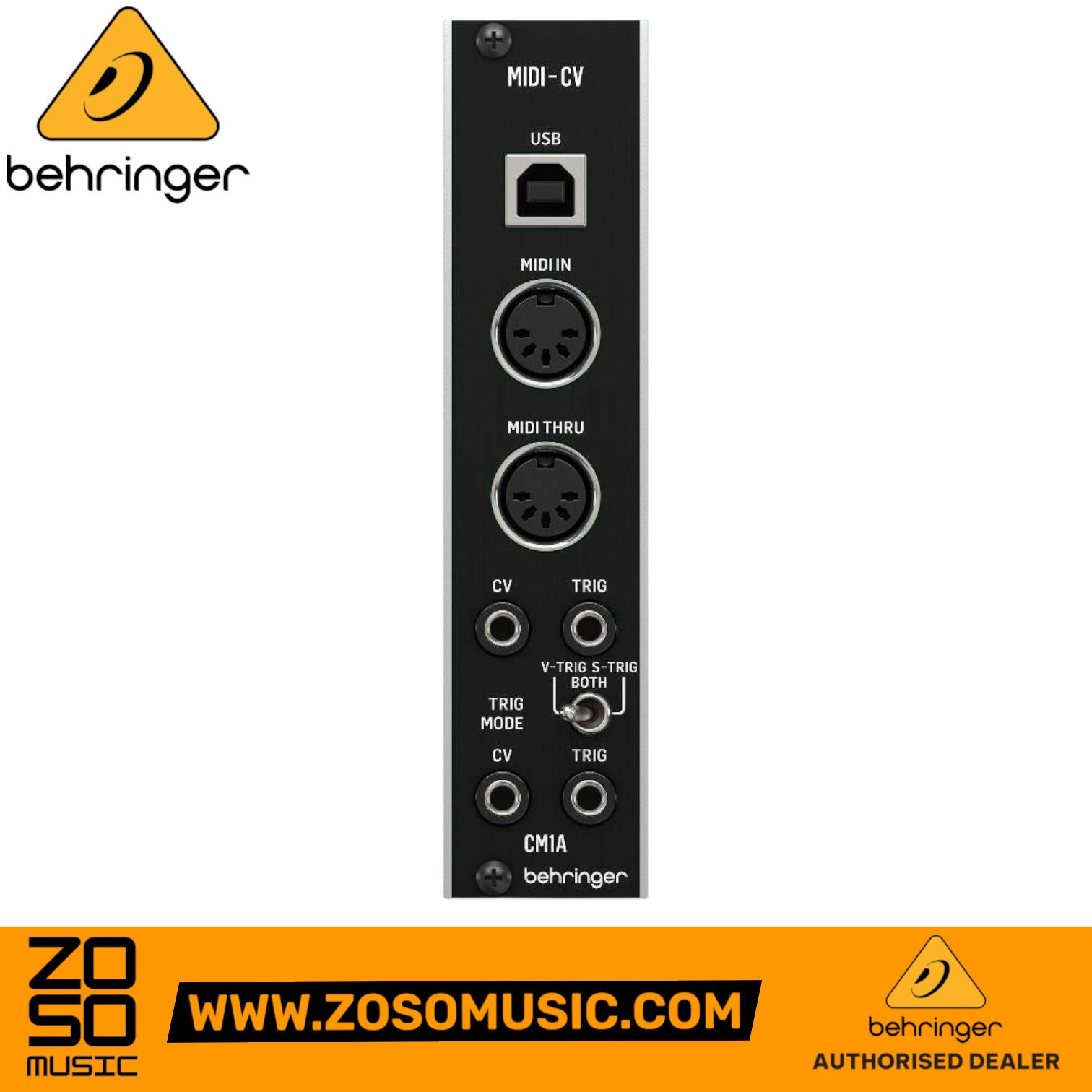

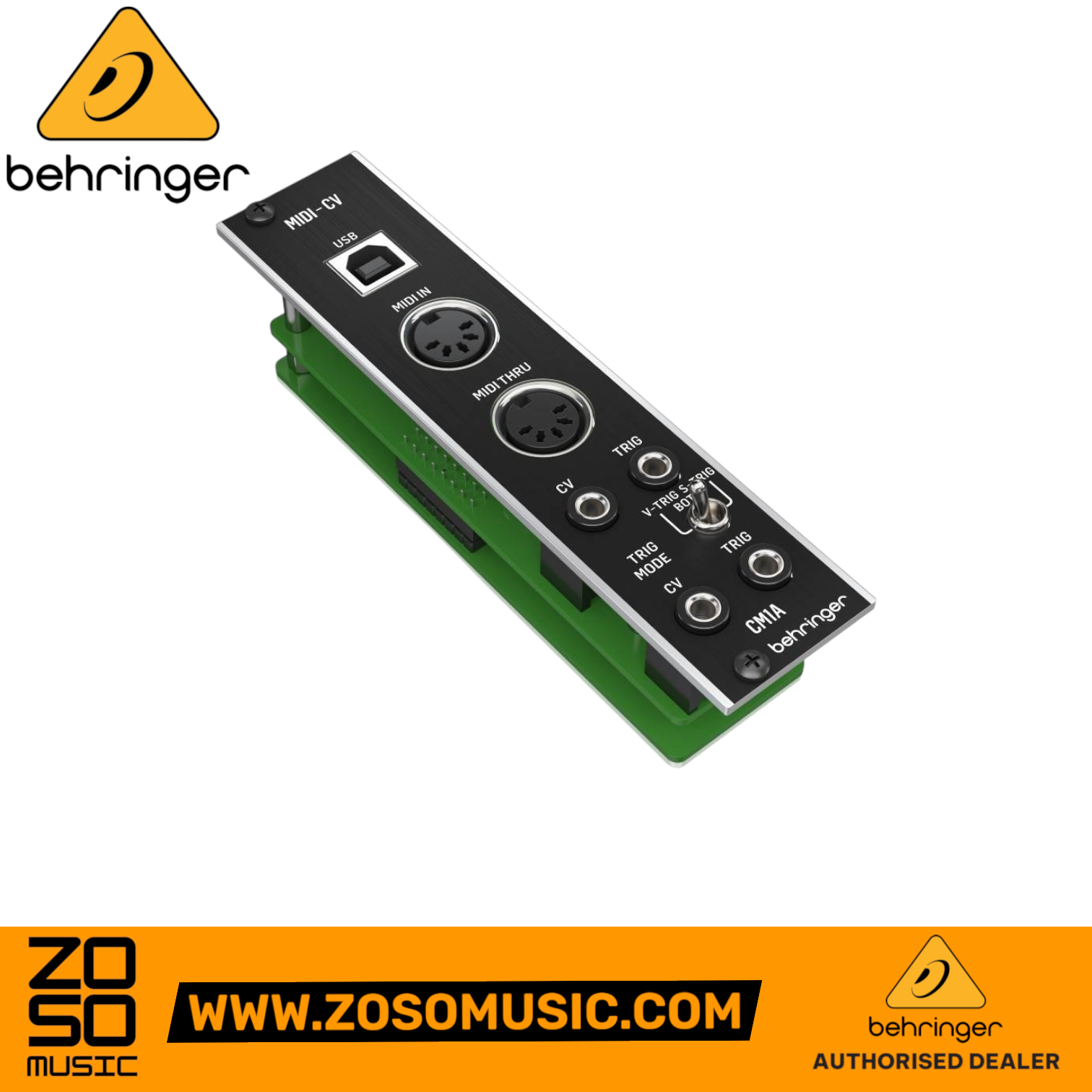

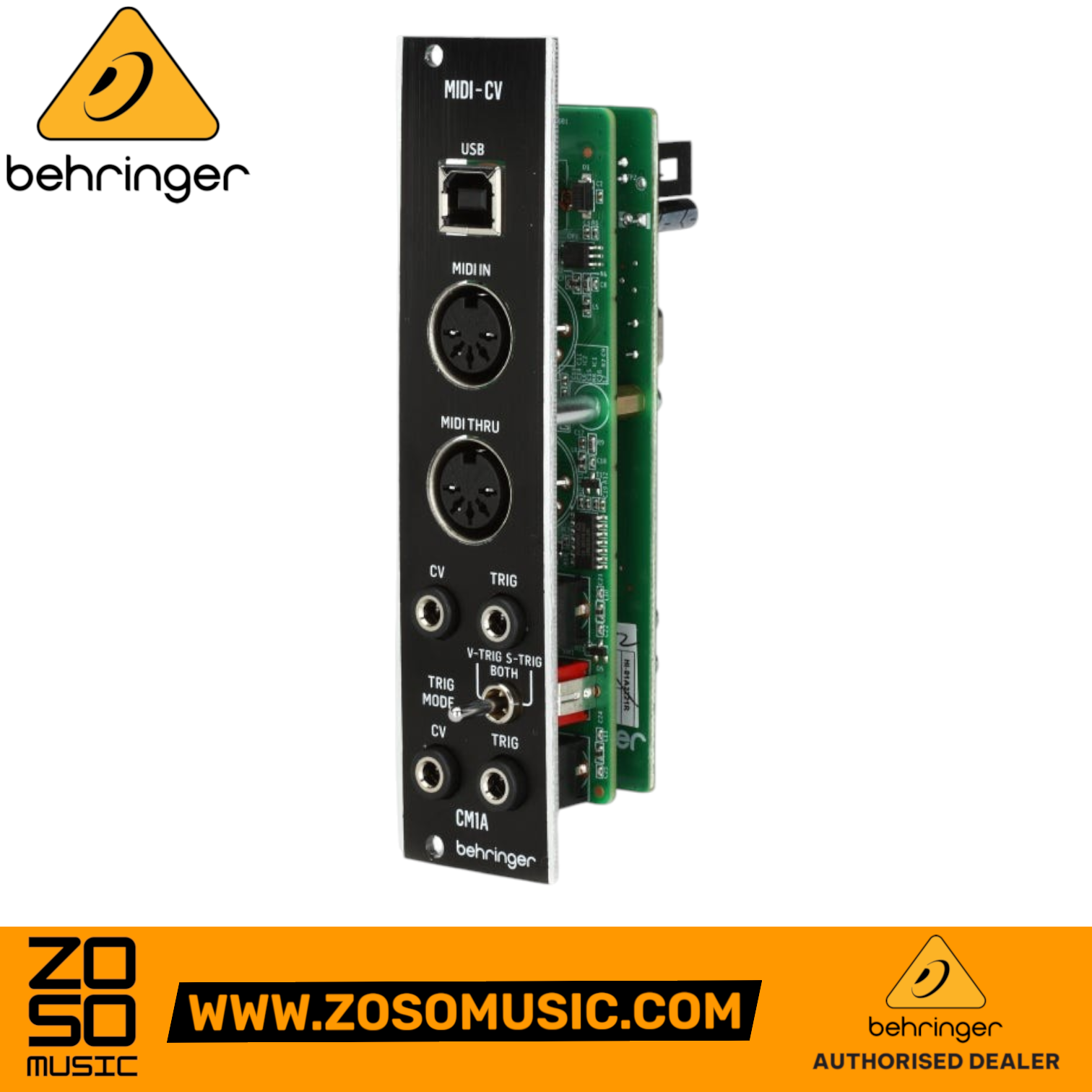

Behringer CM1A Midi To CV Converter Eurorack Module

Behringer CM1A Midi To CV Converter Eurorack Module

The Behringer CM1A is a high-quality MIDI to CV converter that lets you control your Eurorack system with any MIDI keyboard, hardware sequencer, or DAW. It includes traditional 5-pin DIN MIDI In and Thru ports and a USB-MIDI port. Additionally, it allows you to switch between standard V-trig, S-trig (which is used on the historically accurate Behringer System 55, 35, and 15 modules), or use both simultaneously! Plus, it’s equipped with a premium 16-bit Texas Instruments digital to analog converter to ensure rock-solid pitch accuracy. Eurorack has caught fire amongst synth enthusiasts at Zoso Music, but we realize that building a modular system can be an expensive affair. However, with Behringer’s affordable line of Eurorack gear, neophytes and seasoned synth wizards alike have unprecedented access to a huge selection of well-priced modules with world-class sound.

FEATURES

• Control your Eurorack system with any MIDI keyboard, hardware sequencer, or DAW
• 16-bit Texas Instruments DAC ensures rock-solid pitch accuracy
• Includes traditional 5-pin DIN MIDI I/T and USB-MIDI port
• Dual trigger outputs V-trig and S-trig
• Compatible with standard Eurorack modules and historically accurate Behringer System 55, 35, and 15 modules
• Size: 6HP wide, 56mm deep
• Power usage: 70mA (+12V), 10mA (-12V)

SPECIFICATIONS

• Type: Converter Eurorack Module
• HP Size: 6HP
• Power Usage: +12V/70mA, -12V/10mA
• Power Supply: Requires Eurorack case and power supply
