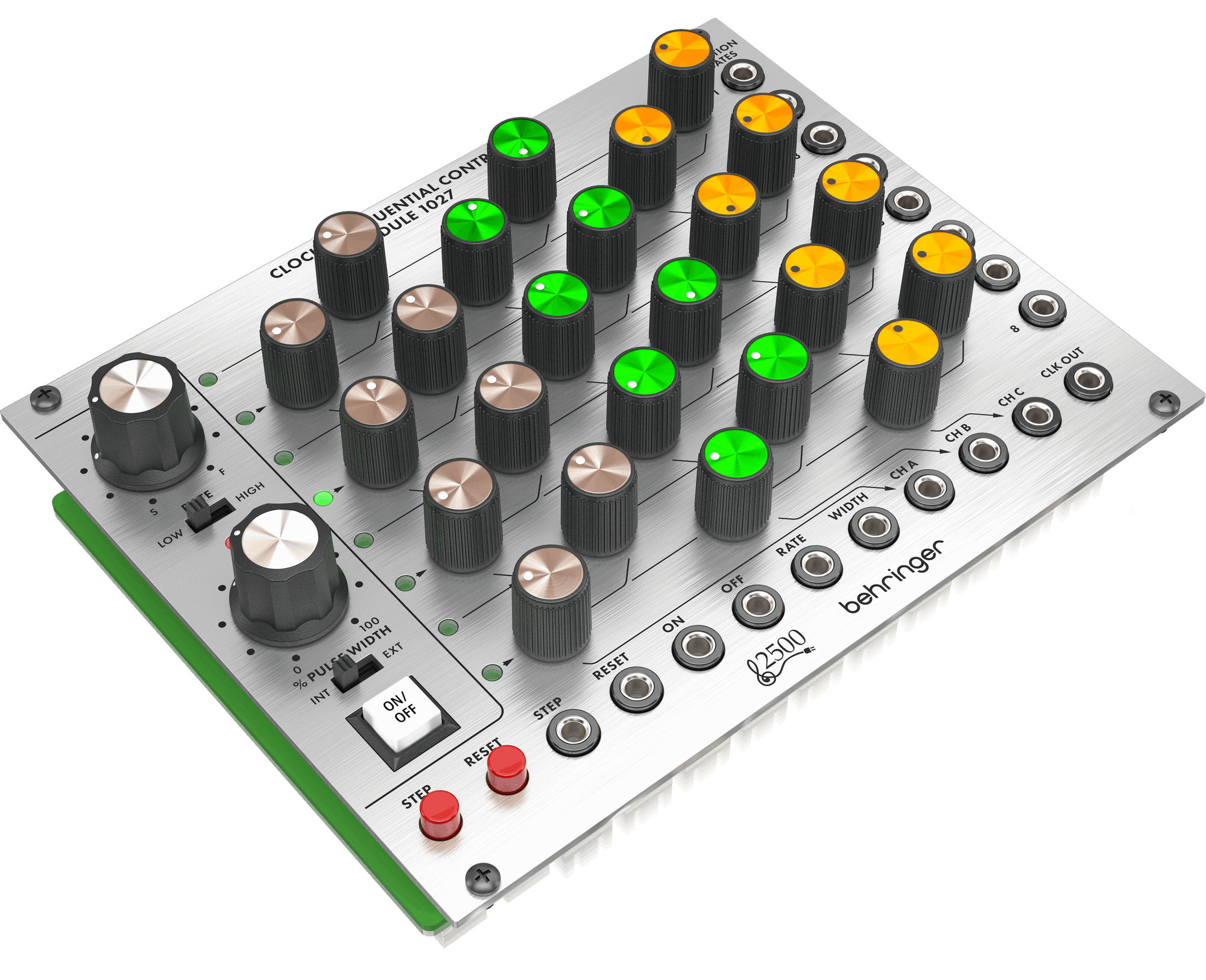

Behringer Clocked Sequential Control Module 1027 8-step Sequencer Eurorack Module

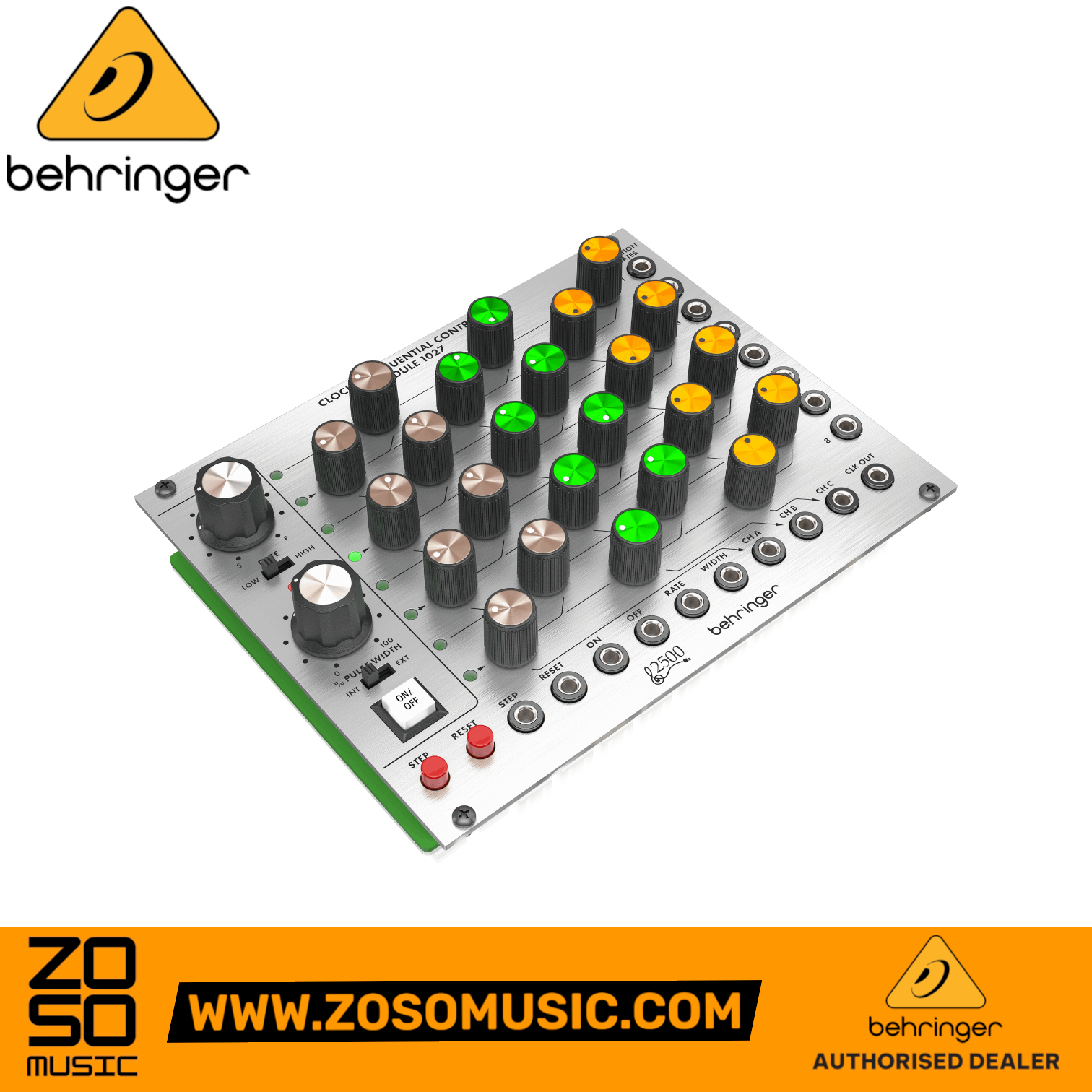

A faithful reproduction of a legendary step-sequencer module, the Behringer 1027 Clocked Sequential Controller brings three channels of 8-step sequencing to your Eurorack rig. The color-coded knobs provide a welcome visual shorthand, and they look great set against the brushed metal panel! Each of the three channels features an independent CV output to control external VCOs and modulators. The 1027 is loaded with connectivity options, including inputs for step rate, sequencer reset, and on/off for remotely starting and stopping the sequencer. You also have access to manual controls for step rate and pulse width. Additionally, the eight position gate outputs allow you to trigger your favorite modules from any of the 1027’s eight steps. Though synthesists here at Zoso Music have fully embraced Eurorack, we realize it can seem like a confusing — and costly — undertaking when you’re first starting out. However, Behringer modules such as the 1027 represent an affordable and gratifying pathway for exploring the world of Eurorack. Add it to your rig and achieve vintage synth tones that even the most discerning synthesists will adore!

FEATURES

• Classic 1027 clocked sequential controller module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• Contains an integrated circuit 8-step counter and 3 channels (A, B and C) of control voltages
• 8 rows of 3 controls provide 3 independently adjustable voltage outputs for each step of the counter
• Built-in time base generator allows the sequencer to step automatically
• Each row has an adjacent LED indicator to display the sequencer count
• Illuminated push button is used to start and stop the internal clock
• Rate of the internal clock can be adjusted from a stepping rate of 20 per minute to 400 per second by adjusting the Pulse Repetition Frequency control and the external rate control signal
• Internal clock can be turned on and off by applying pulses on the appropriate input connections
• Clock pulse width and duration of the step voltages is adjusted from 0 to 100% by the Pulse Width control and the external width control signal
• With the clock turned off the sequencer may be stepped along and reset manually using the front panel push buttons
• Control voltages on channel A, B and C range between 0 to 10 V
• The 1027 can be used to control other 2500 Series modules including the 1026 Preset Voltages or 1050 Mix Sequencer modules
• Cable connections are provided on the rear of the PCB for this purpose (cable included)
• Eurorack specs: 26 HP, 50 mA +12 V, 30 mA -12 V
