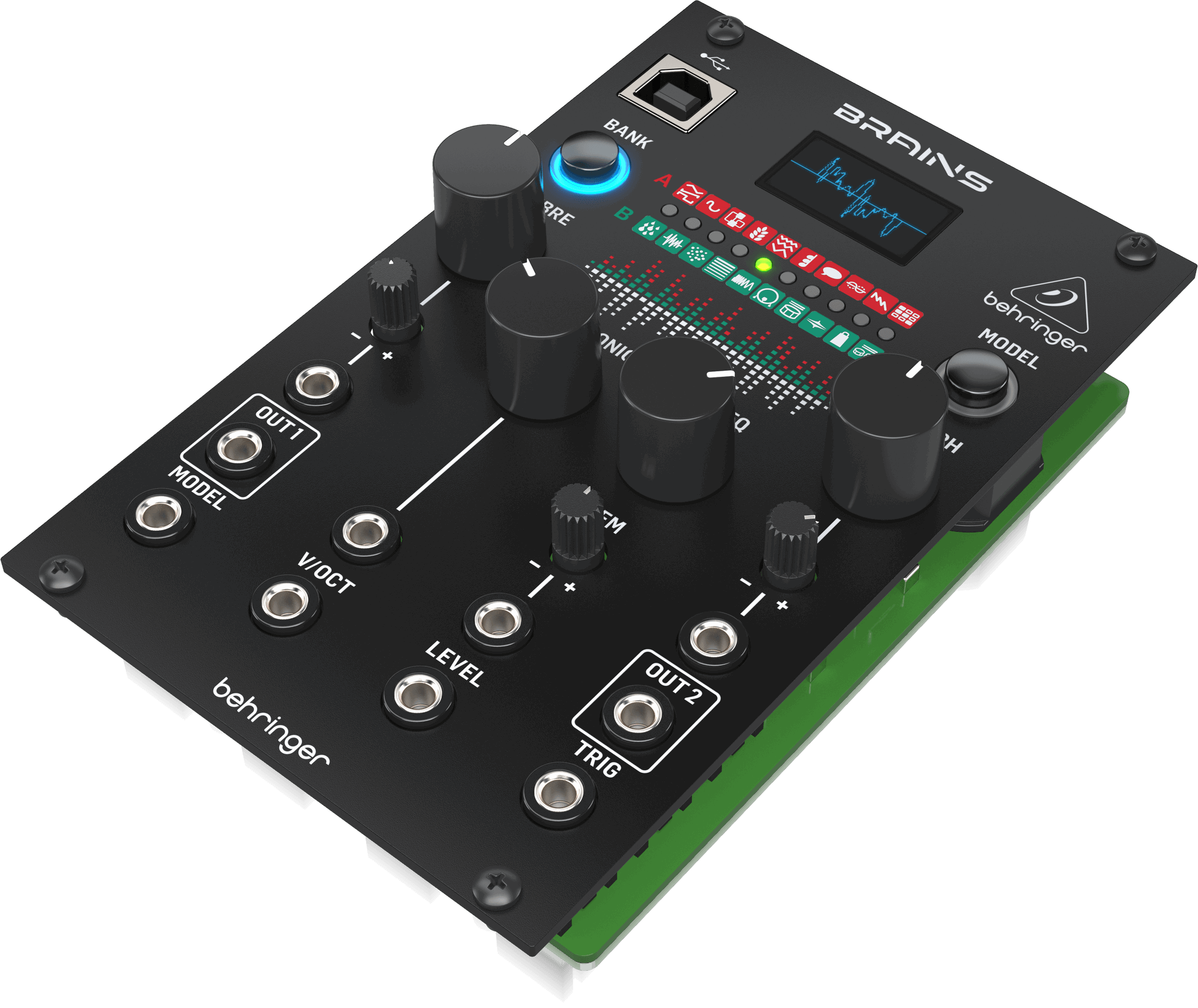

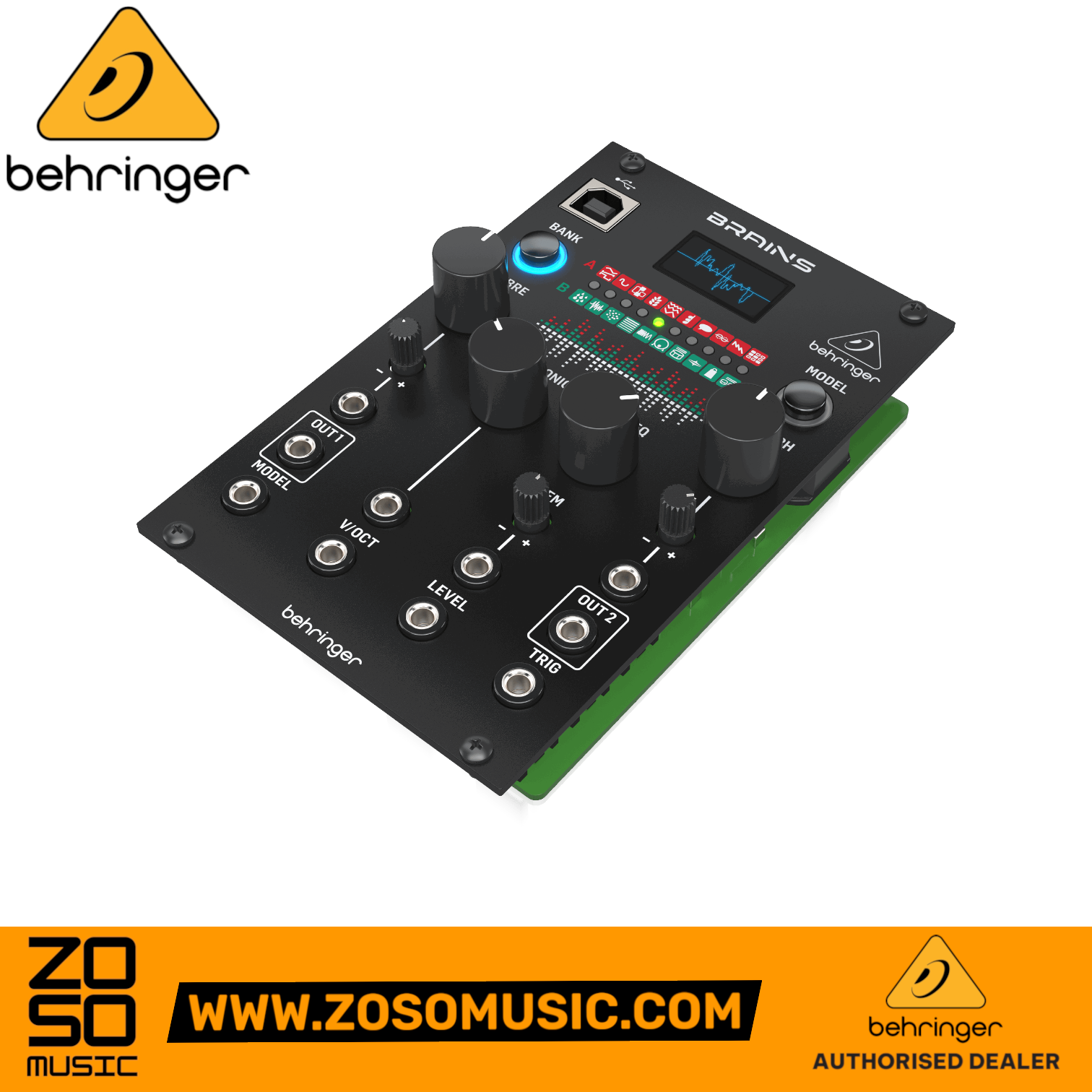

Behringer Brains Multi-Engine Oscilator Eurorack Module

16HP Eurorack Multi-engine Oscillator Module with 20 Synthesis Engines, 96kHz Audio Quality, and OLED Oscilloscope

Behringer Brains Multi-Engine Oscilator Eurorack Module

Behringer has made waves in the Eurorack community by offering spot-on re-creations of vintage synth modules in the Eurorack format. But with the Brains multi-engine oscillator module, the company has stepped out of the past and aimed for the future! Brains is a shockingly versatile Eurorack voice module, with 20 digital oscillator modes on deck to expand your Eurorack color palette. With noise engines ranging from virtual analog and FW to granular synthesis and drum sounds, Brains opens access to a host of inspiring tones. Plus, its multifunction timbre, harmonics, frequency, and morph controls enable endless manual and automated tweakability. Synth experts at Zoso Music find that almost any synth sound you can dream of is contained in Brains' neural network ominous drones, screaming leads, crystalline plucks, and ethereal pads. Even if you use just 10 percent of this hyper-intelligent module’s capabilities, you’ll be astonished by its seemingly limitless variety of sounds!


FEATURES

• Ultra-versatile digital sound source for Eurorack
• 20 digital oscillator modes with timbre, harmonics, frequency, and morph controls
• Noise engines include virtual analog, waveshaper, FM, grains, rain, noise, dust, modal strings, bass, snare, and hat

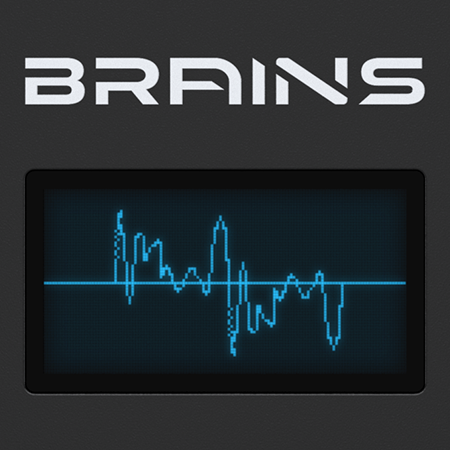

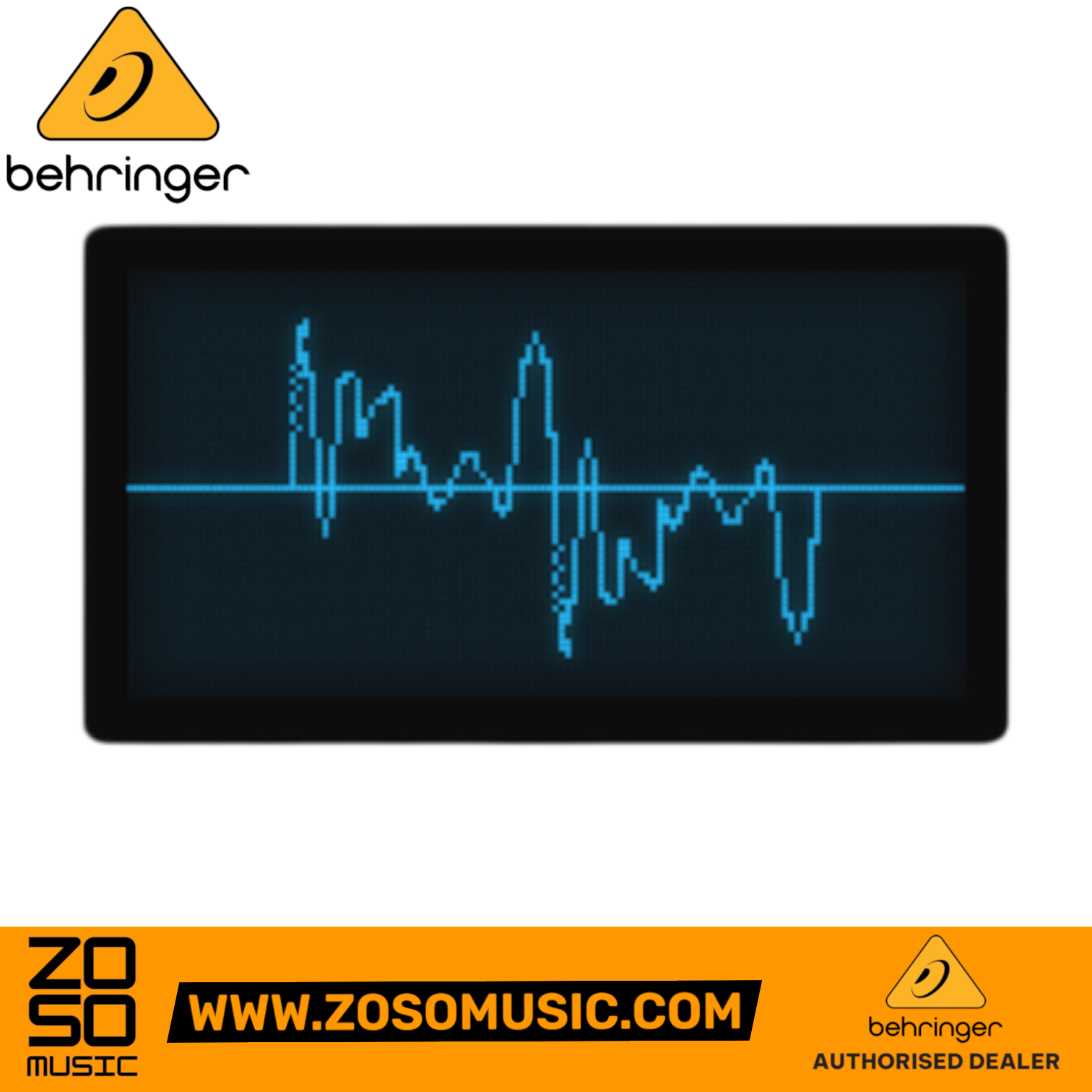

• Crisp OLED display visualizes active waveforms
• 2 separate audio outputs and parameter CV inputs
• Size: 16HP wide, 45mm deep
• Power usage: 130mA (+12V), 10mA (-12V)

SPECIFICATIONS

• Type: Multi-engine Oscillator Module
• Analog/Digital: Digital

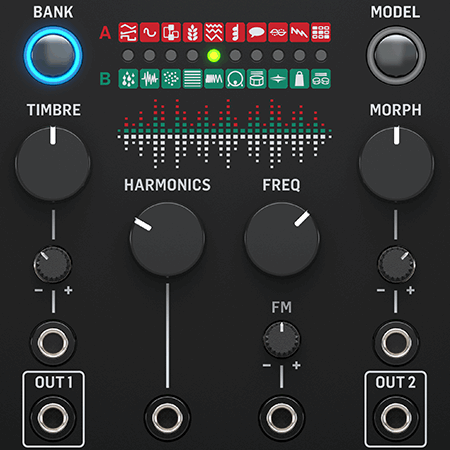

• Controls: Timbre, Harmonics, Frequency, Morph
• Sounds: 10 x Synth Engines, 10 x Percussion/Noise Engines
• Arpeggiator: No
• Sampling: No
• Analog Outputs: 2 x 1/8" TS
• Other I/O: 8 x CV inputs
• Depth: 1.77" (45mm)
• HP Size: 16HP
• Power Usage: 130mA (+12V), 10mA (-12V)
• Power Supply: Requires Eurorack case and power supply
