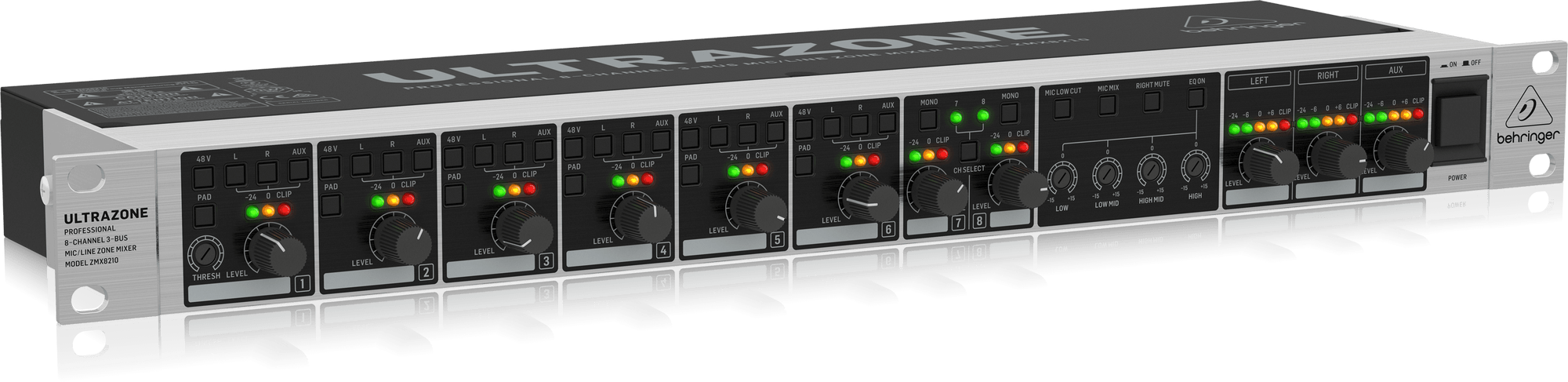

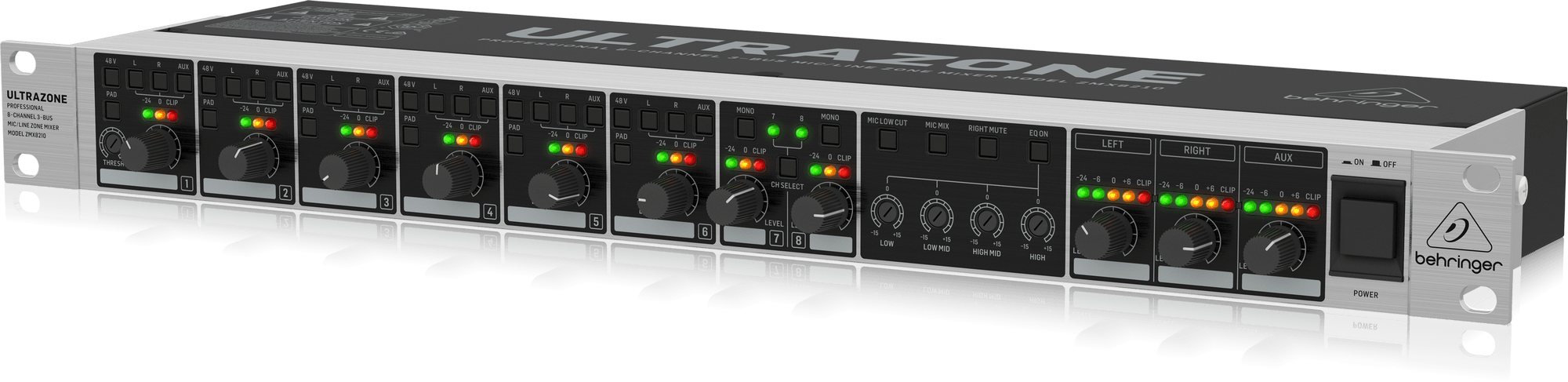

BEHRINGER ULTRAZONE ZMX8210 V2 RACKMOUNT ZONE MIXER

Behringer Ultrazone ZMX8210 V2 Rackmount Zone Mixer (ZMX-8210V2 / ZMX8210V2)

The Behringer Ultrazone ZMX8210 Rackmount Zone Mixer is designed for use with commercial sound systems and fixed installation applications and features remote control ports. The ZMX8210 mixer lets users distribute music into 3 different rooms with 3 assignable outputs, each with master controls and 5-segment LED metres for monitoring. Ideal environments for the rackmount mixer include restaurants, offices, houses of worship and anywhere that requires different music in different rooms. There are 6 low noise mic/line inputs with gain control, -20 dB pad, level/clip indicator and +48V phantom power.

SPECIFICATIONS:

Inputs 1-6:

• Type: Euro-Type Connector, Electronically Balanced
• Impedance: 3kΩ Balanced / 1.5kΩ Unbalanced (With PAD)
• Max Input Level: +12 dBu
• Max Gain: +40 Db
• Crosstalk: >63 dB @ 1kHz
• Common-Mode Rejection Ratio (CMRR): >75 dB @ 1kHz, 22Hz - 22kHz
• Equivalent Input Noise: -116 dBu A-Weighted; Terminated With 150Ω

Inputs 7-8

• Type: RCA Connectors, Unbalanced
• Impedance: 10kΩ Unbalanced
• Max Input Level: +15 dBu
• Max Gain: 15 dB

Out L, Out R, AUX

• Type: Euro-Type Connector, Balanced
• Max Gain: 22 dB
• Max Gain (Input/Output): 62 dB (Without PAD)
• Impedance: 60Ω, Unbalanced, 120Ω Balanced
• Max Output Level: +21 dBu Unbalanced/Balanced
• Crosstalk (Output/Output): >63 dB @ 1kHz
• Noise (All Level Controls Down): -105 dBu A-Weighted
• Signal-to-Noise Ratio: 87 dB @ 0 dB A-Weighted

BUS Links

• Type: Euro-Type Connector, Unbalanced
• Impedance: Approx 150Ω
• Max Output Level: +21 dBu

Remote

• Type: Euro-Type Connector

EQ

• Mic Low Cut: High-Pass Filter, Cutoff Frequency: 100Hz
• Low: ±15 dB @ 70Hz
• Low Mid: ±15 dB @ 300Hz
• High Mid: ±15 dB @ 3kHz
• High: ±15 dB @ 10kHz

System Data

• Frequency Response: <20Hz - 22kHz ±0.5 dB
• Distortion (THD+N): <0.005 Percent

Power Supply

• Type: Switch-Mode Power Supply
• Voltage: 100-240 VAC, 50/60Hz
• Power Consumption: 25W
• Mains Connection: Standard IEC Connector

Weight: 2.2 kg

Dimensions

• Height: 44 mm
• Width: 483 mm
• Depth: 217 mm

FEATURES:

• Ultra-flexible & easy-to-use ideal for commercial sound systems & fixed installation applications
• 6 x ultra-low noise mic/line inputs with gain control, -20 dB pad, level/clip indicator, +48V phantom power & bus-assign switches
• 2 x selectable high-headroom stereo inputs with mono/stereo switch
• Channel 1 provides variable threshold to enable automatic bus mute for announcements

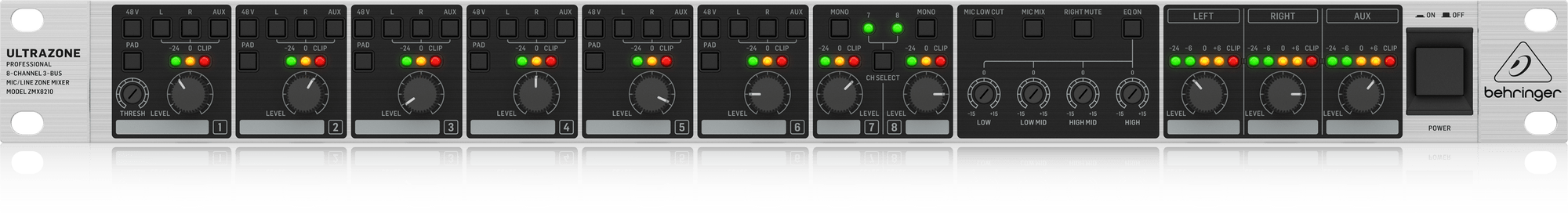

• 3 x assignable outputs with individual master controls & 5-segment LED metres
• Musical 4-band master EQ & global microphone low-cut filter
• Left, right, AUX & mute bus links available including master/slave switch
• Remote master left/right level control port
• Integrated channel muting system with priority select

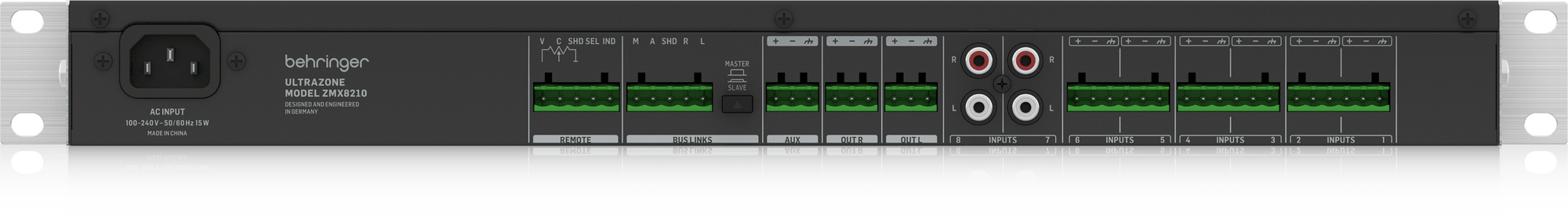

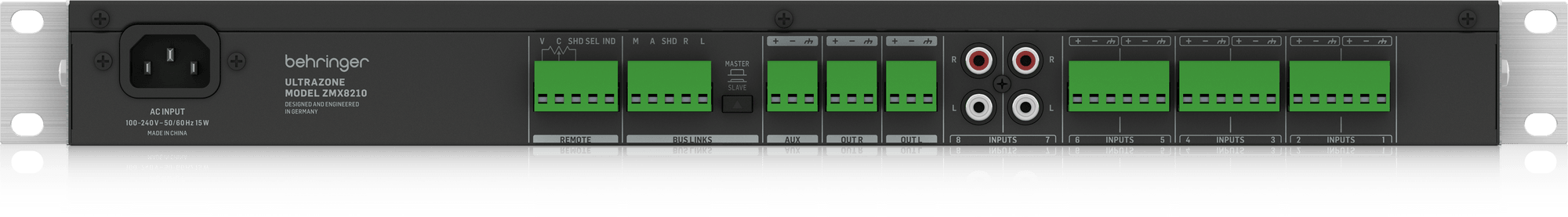

• All inputs/outputs on Euro-type connectors
