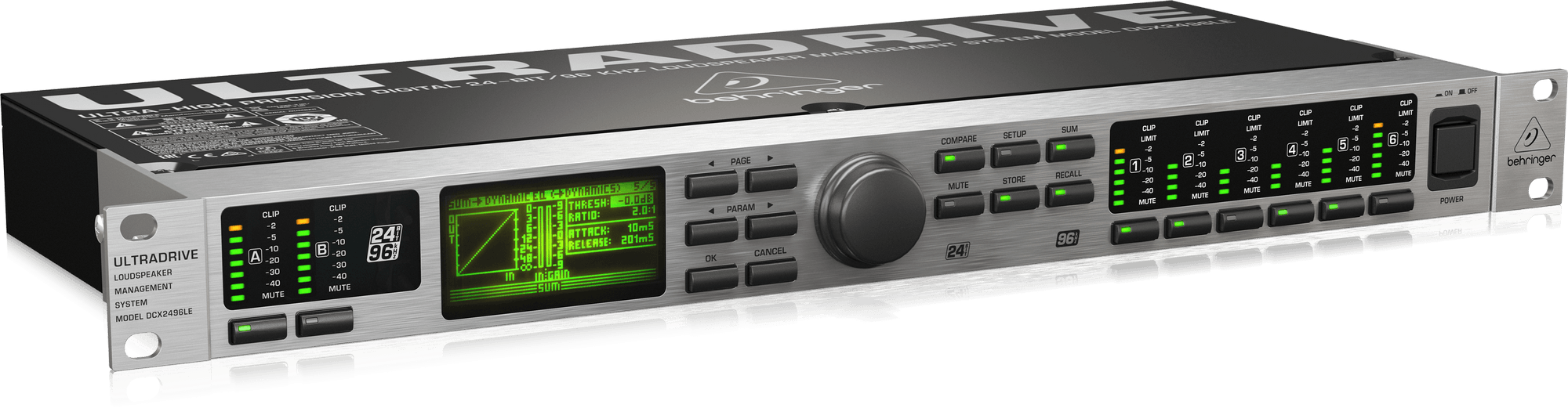

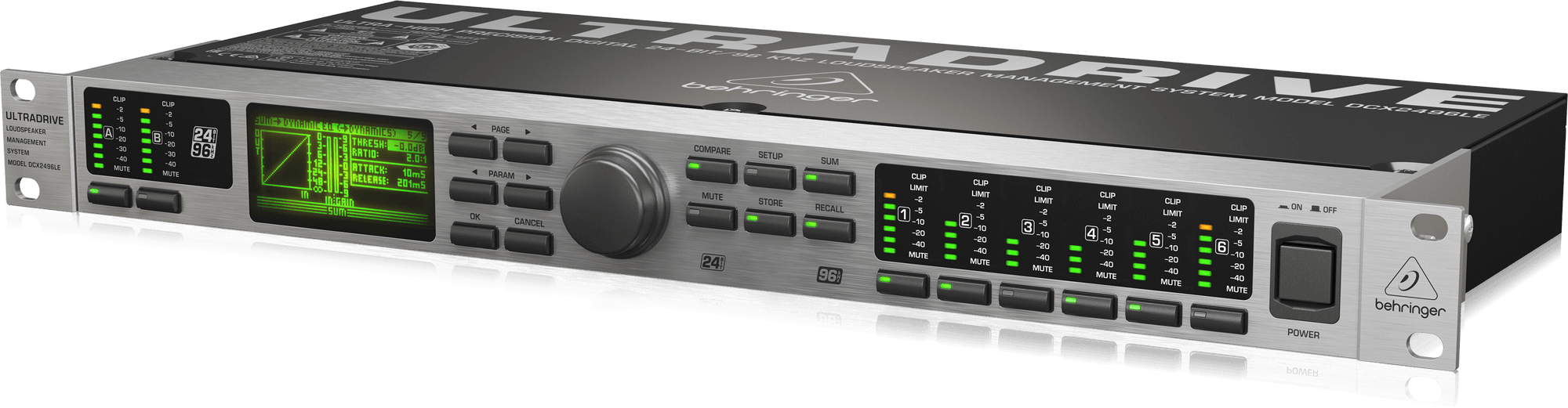

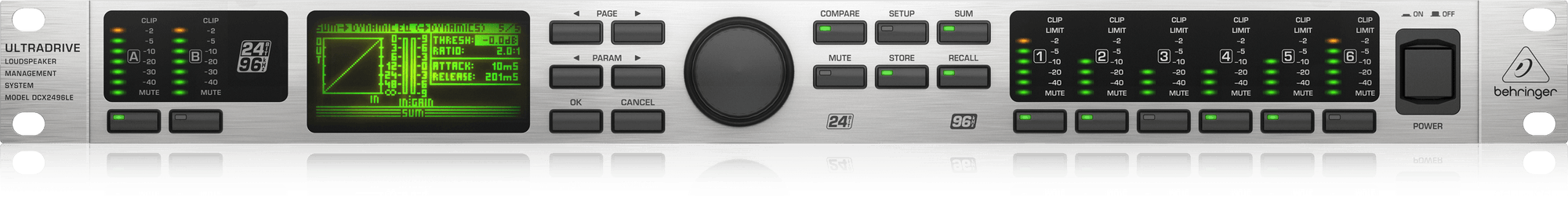

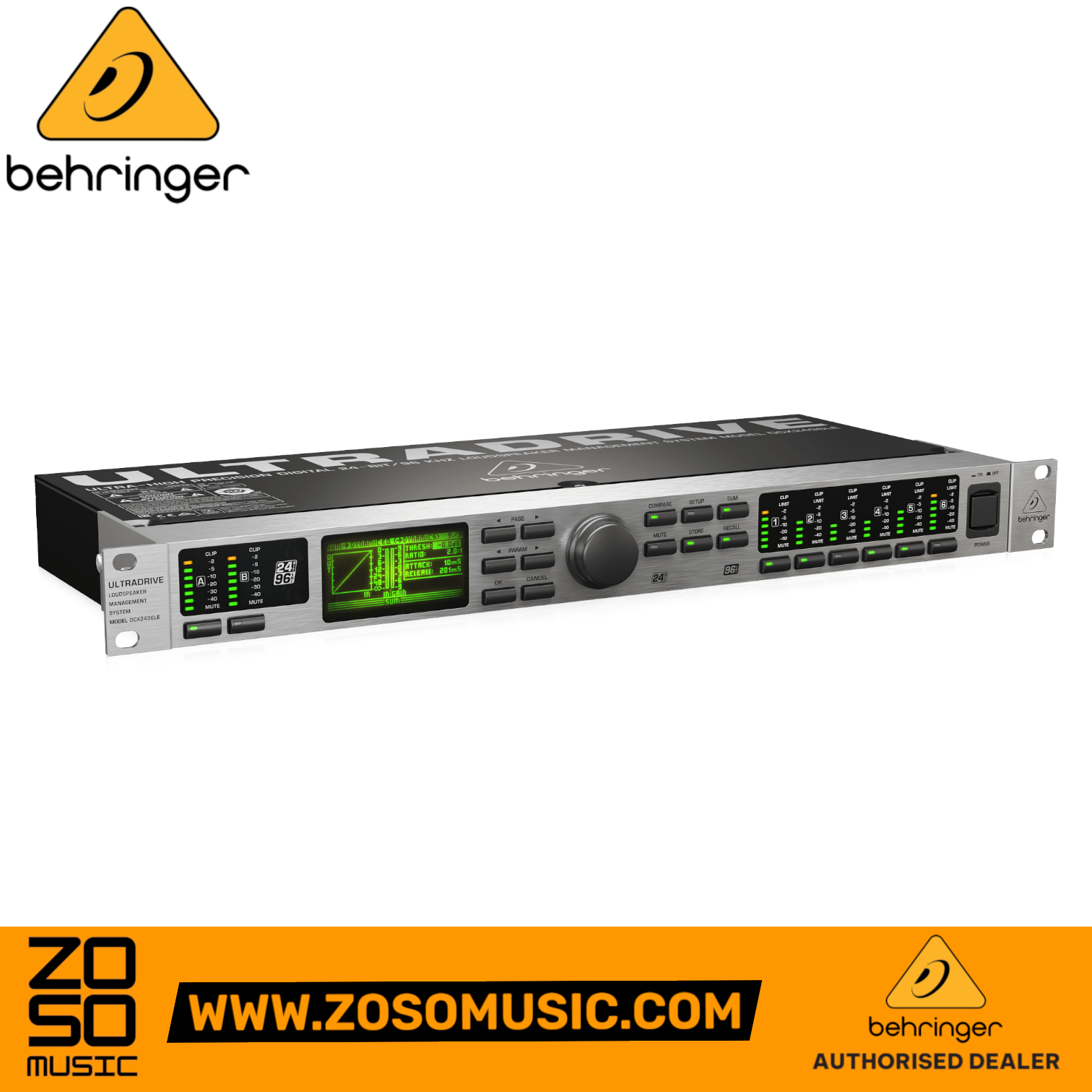

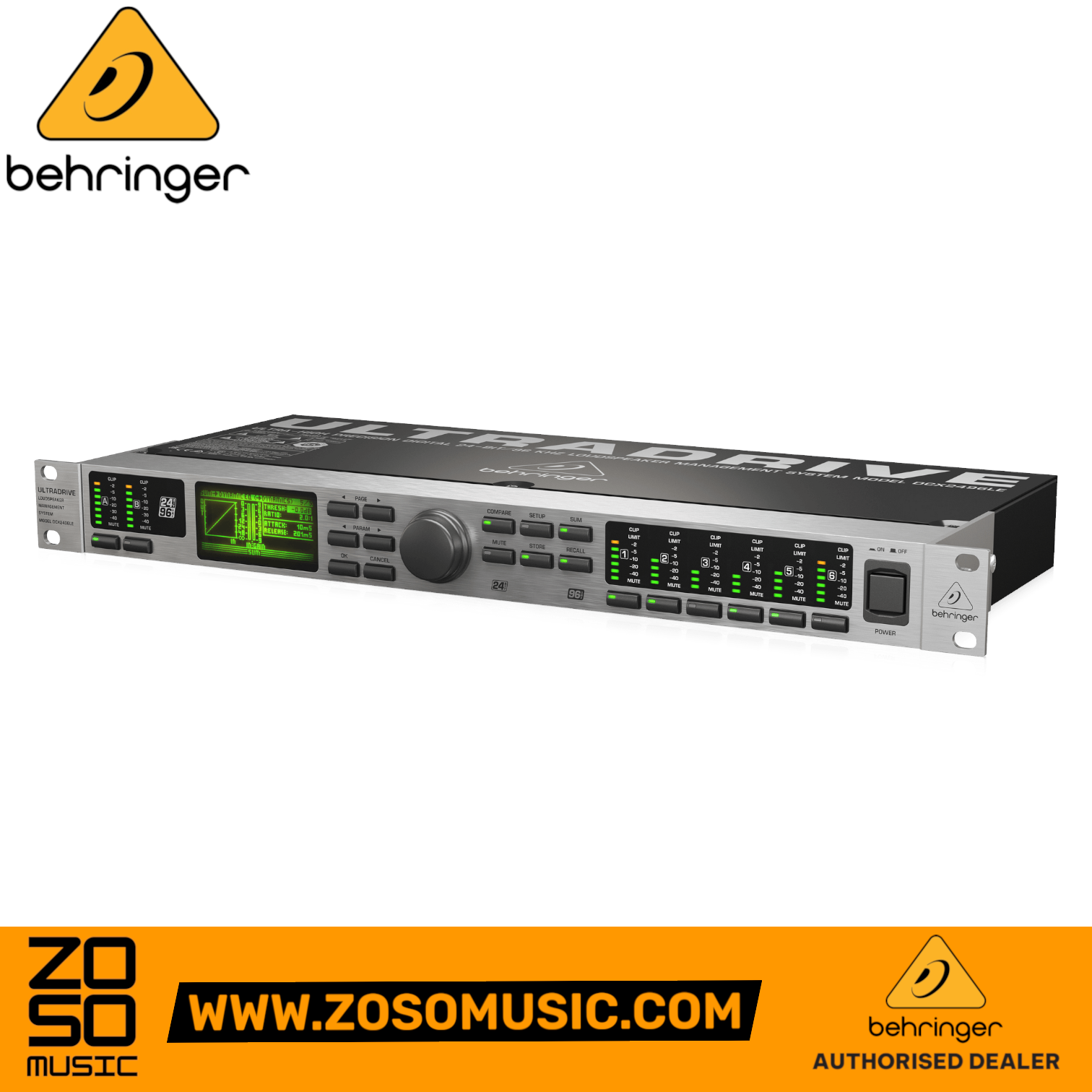

Behringer UltraDrive DCX2496LE Loudspeaker Management System (DCX-2496LE)

BEHRINGER ULTRA DRIVE DCX2496LE LOUDSPEAKER MANAGEMENT SYSTEM

Digital 24-Bit/96 kHz Loudspeaker Management System With 2 Analog Inputs, 4 Mono/Stereo Operating Modes, Selectable EQs, Built-in Crossovers, and Output Channel Limiters

ULTRADRIVE DCX2496LE

The ULTRADRIVE DCX2496LE is the answer to making your venue sound like it was tuned by the pros. Over the past years the DCX2496 has become an industry standard and several hundred thousand units have been employed in high-end touring as well as install applications. The new DCX2496 “LE” version offers the same impeccable audio performance as the original DCX2496, but with reduced functionality as many customers do not require the digital inputs and outputs of the standard version. The DCX2496LE is the perfect way to manage a multi-speaker sound system in any sized venue – from cinema to sanctuary to concert hall. Featuring 2 inputs, 6 outputs and 24-bit/96 kHz high-end AD/DA converters, this state-of-the-art processor will take your system to the next level and beyond.

Superb Connectivity and Impeccable Sound Quality

With 2 analog inputs and 6 analog outputs on servo-balanced, gold-plated XLR connectors and four different mono and stereo output operating modes, you get maximum flexibility in just one rack space. Superb high-end Cirrus Logic* 24-bit/96 kHz AD and DA converters give you ultimate signal integrity and an incredible dynamic range.

SPECIFICATIONS:

• Number of Channels: 2
• Presets - User: 60

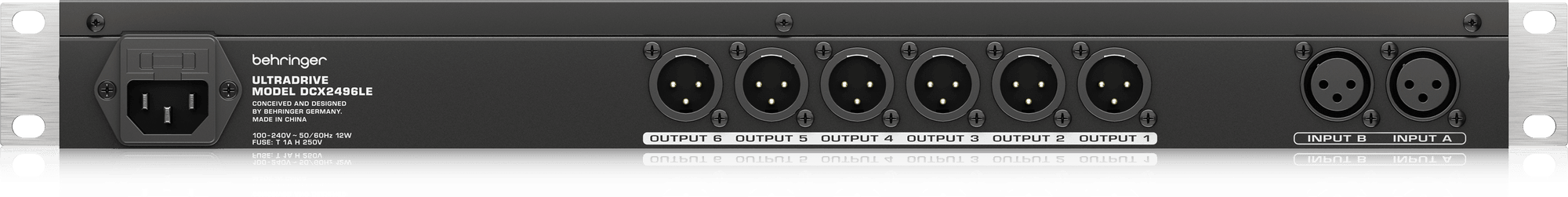

• Analog Inputs: 2 x XLR
• Analog Outputs: 6 x XLR
• Rack Spaces: 1U

FEATURES:

• 2 analog inputs and 6 analog outputs for a wide range of options
• 24-bit/96kHz Cirrus Logic A/D and D/A converters for phenomenal signal integrity and massive dynamic range (120dB)
• Dynamic EQs for level-dependent equalization and highly musical Parametric EQs, selectable for all ins and outs
• Multiple EQ types (LP/BP/HP) for each input and output
• "Zero-attack" limiters on each output channels for total speaker protection
• Four different mono and stereo output operating modes
• Individual crossover filter types include Butterworth, Bessel and Linkwitz-Riley with selectable roll-off characteristics
• Adjustable delays on inputs and outputs
• Create up to 60 user-defined presets
• Servo-balanced, gold-plated XLR connectors for inputs and outputs
• High-quality components and rugged construction can handle the rigors of the road
