Behringer U-Phoria UMC-1820 USB 2.0 Audio Interface (UMC1820 / UMC 1820)

BEHRINGER U-PHORIA UMC1820 USB AUDIO INTERFACE

USB 2.0 Audio Interface, 18-in/20-out, with 8 Microphone Preamps, ADAT I/O, S/PDIF I/O, MIDI I/O, and Dual Headphone Outputs - 24-bit/96kHz Resolution - Mac/PC

U-PHORIA UMC1820

The incredible U-PHORIA UMC1820 bridges the gap between your creativity and your fans. This blazingly fast USB 2.0 studio-in-a-box will have you recording your next masterpiece in minutes with all the connectivity required for your microphones, guitars, keyboards and even MIDI devices.

Record the perfect vocal right to your computer-based DAW thanks to the 8 astonishingly clear, world-class Midas-designed mic preamps, which include +48 Volt phantom power for condenser microphones, all going through studio-grade 24-Bit/96 kHz converters for the best possible sound quality. It also provides I/O support for S/PDIF, ADAT and S/MUX formats. Whether you’re a singer-songwriter, producer on the go, or just need a rock-solid interface for running backing tracks at a gig, the ultra-dependable U-PHORIA UMC1820 will help you shine in the digital domain.

Ample I/O provides extensive connectivity

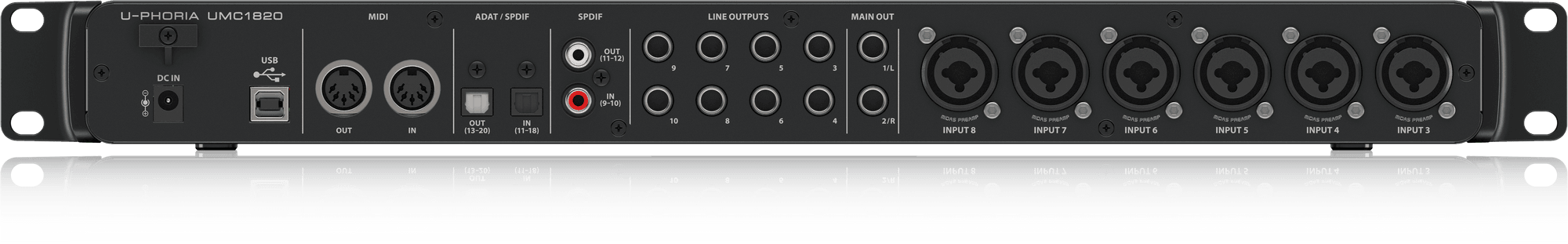

The U-PHORIA UMC1820 provides 18 inputs and 20 outputs, as well as MIDI I/O, enough to connect and sync all of your favorite synths, modules, compressors, external mic pres, and whatever else you have lying around. The U-PHORIA UMC1820's TRS, RCA, and XLR outputs ensure that you have your analog playback options covered. With support for S/PDIF, ADAT, and S/MUX digital formats, the U-PHORIA UMC1820 lets you use all three signals simultaneously, allowing for plenty of expansion.

SPECIFICATION:

• Computer Connectivity: USB 2.0
• Form Factor: Rackmount
• Simultaneous I/O: 18 x 20
• Number of Preamps: 8
• Phantom Power: Yes
• A/D Resolution: 24-bit/96kHz
• Analog Inputs: 8 x XLR-1/4" combo
• Analog Outputs: 2 x 1/4" TRS (main out), 8 x 1/4" TRS (line out)
• Digital Inputs: 1 x Coax (S/PDIF), 1 x Toslink (ADAT)
• Digital Outputs: 1 x Coax (S/PDIF), 1 x Toslink (ADAT)
• Headphones: 2 x 1/4"
• MIDI I/O: In/Out/USB
• USB: 1 x Type B
• Rack Spaces: 1U

FEATURES:

• Midas-designed mic preamps deliver high-quality audio reproduction
• 24-bit/96kHz resolution for professional audio quality
• Ample I/O provides extensive connectivity
• Simultaneous use of all signals allows for plenty of expansion
• Direct monitoring for zero-latency cue mixes
• Dual headphone outputs with individual level controls and monitor A/B source select for DJ-style cueing
• High-quality components and rugged construction ensure long life
