Behringer 921 Voltage Controlled Oscillator Eurorack Module

BEHRINGER 921 VOLTAGE CONTROLLED OSCILLATOR EURORACK MODULE

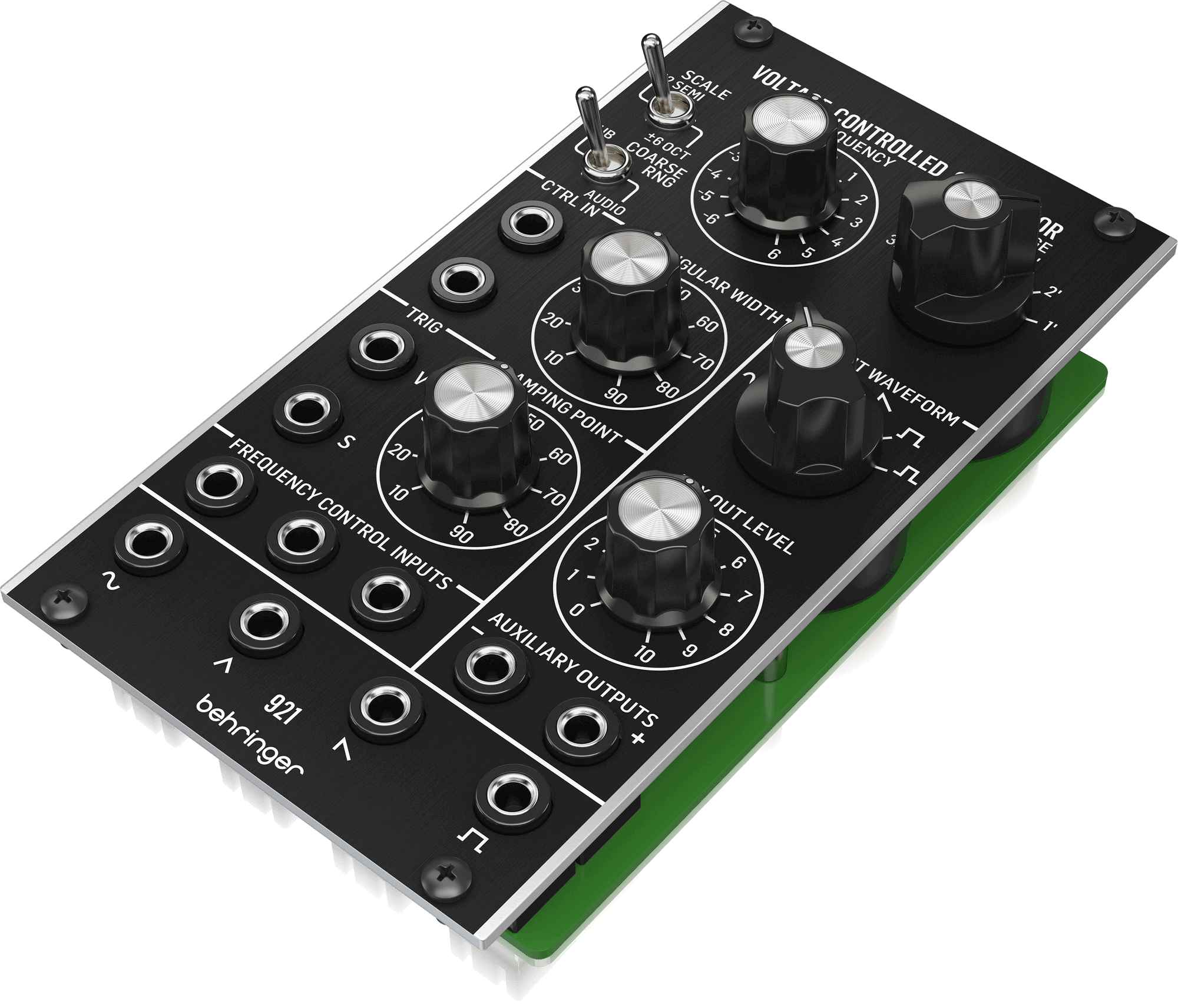

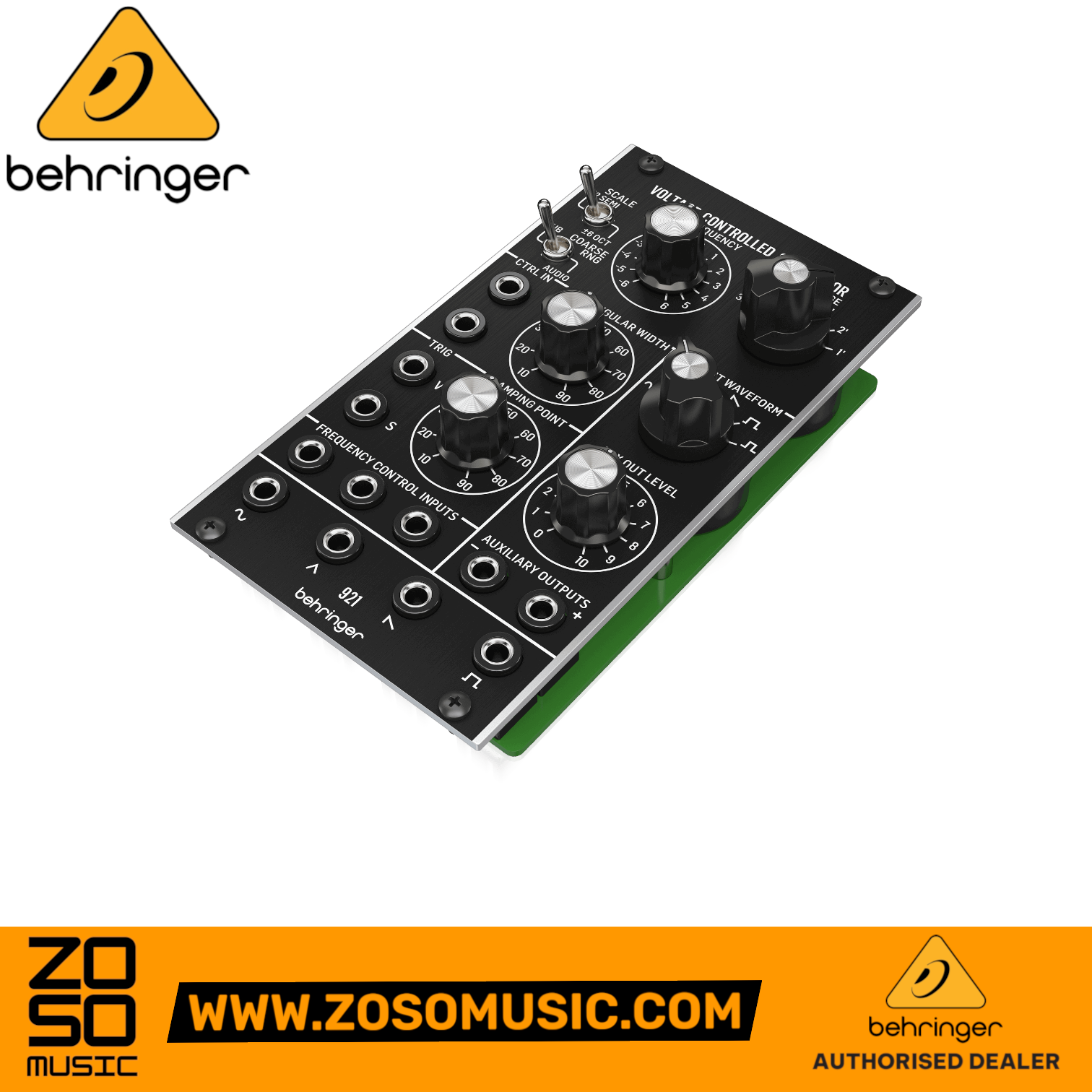

The Behringer 921 is a faithful reproduction of the original 921 VCO module that was the heart of the legendary modular system from the 1970s. And like the original, the Behringer 921 generates massive, gritty tones with its six selectable waveforms that include sine, triangle, saw, inverted saw, square, and inverted square. Or, you can switch it into sub-audio mode for use as an LFO. The 921’s frequency control lets you select between stepped octaves or semi-tones, allowing you to create pseudo-polyphony when paired with one or more additional oscillators. For ultra-thick sounds, the 921 features pulse width modulation with two separate CV inputs, and you can add a heaping helping of dirt by adjusting the module’s clamping point, a type of old-school clipper. Eurorack has caught fire amongst synth enthusiasts at Zoso Music, but we realize that building a modular system can be an expensive affair. However, with Behringer’s affordable line of Eurorack gear, neophytes and seasoned synth wizards have unprecedented access to a huge selection of well-priced modules with world-class sound.

FEATURES

• Vintage-sounding 921 VCO module from the '70s
• Authentic reproduction of the circuitry from the "Modular 55, 35 & 15" Series
• Artist roster includes world's most famous pop, rock and jazz musicians

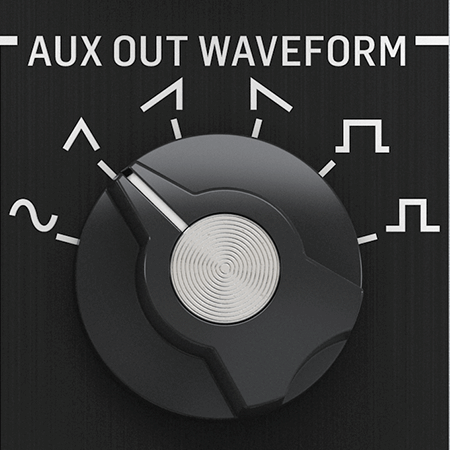

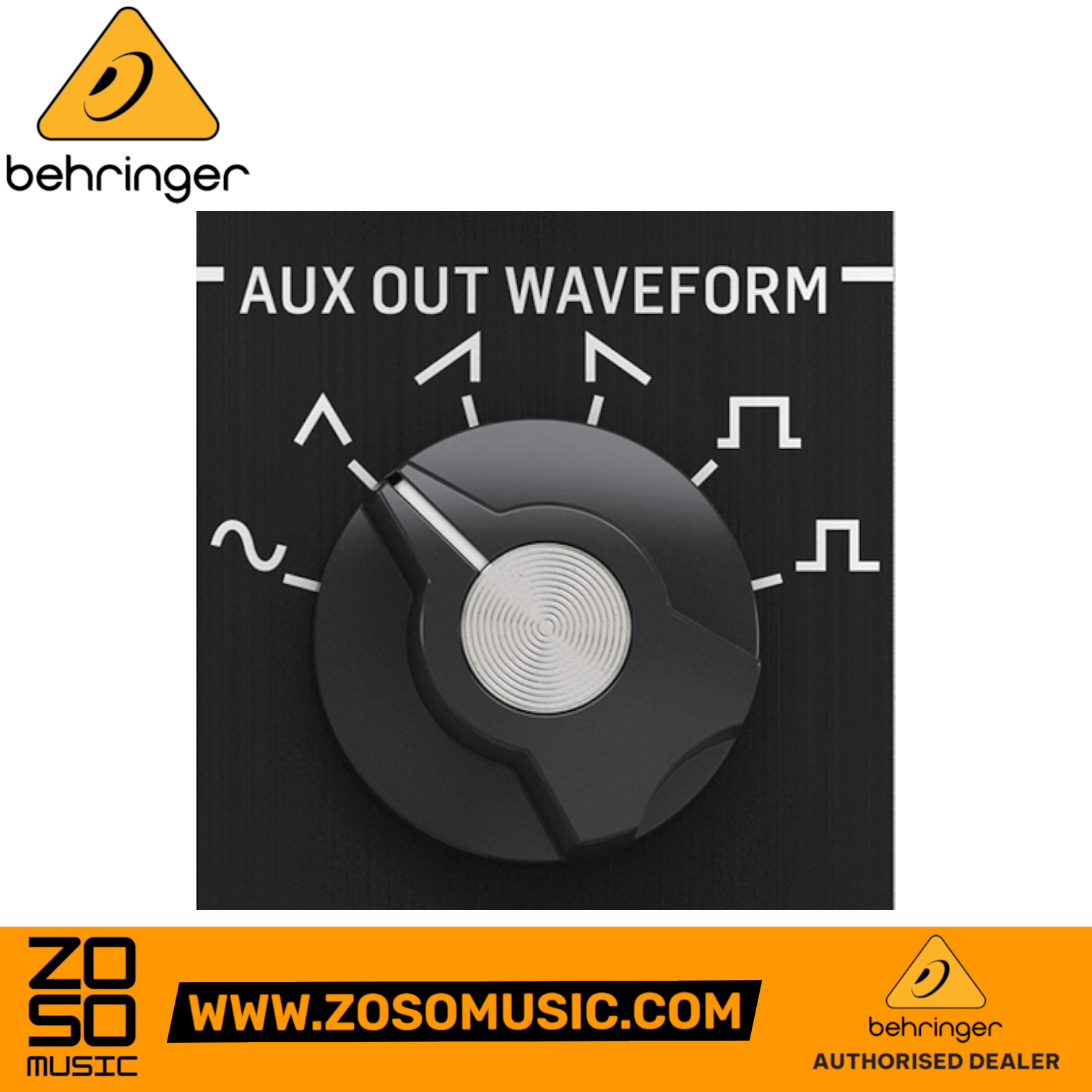

• VCO features 6 selectable waveforms (sine, triangle, saw, inverted saw, square and inverted square)
• Pulse width control with 2 separate CV inputs for fat PWM sounds
• Switchable between Sub Audio (LFO) and Audio (VCO) for extended flexibility

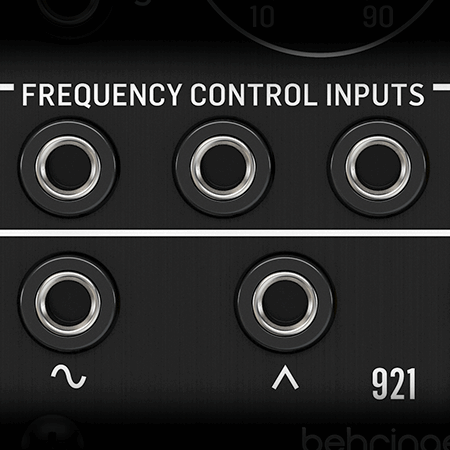

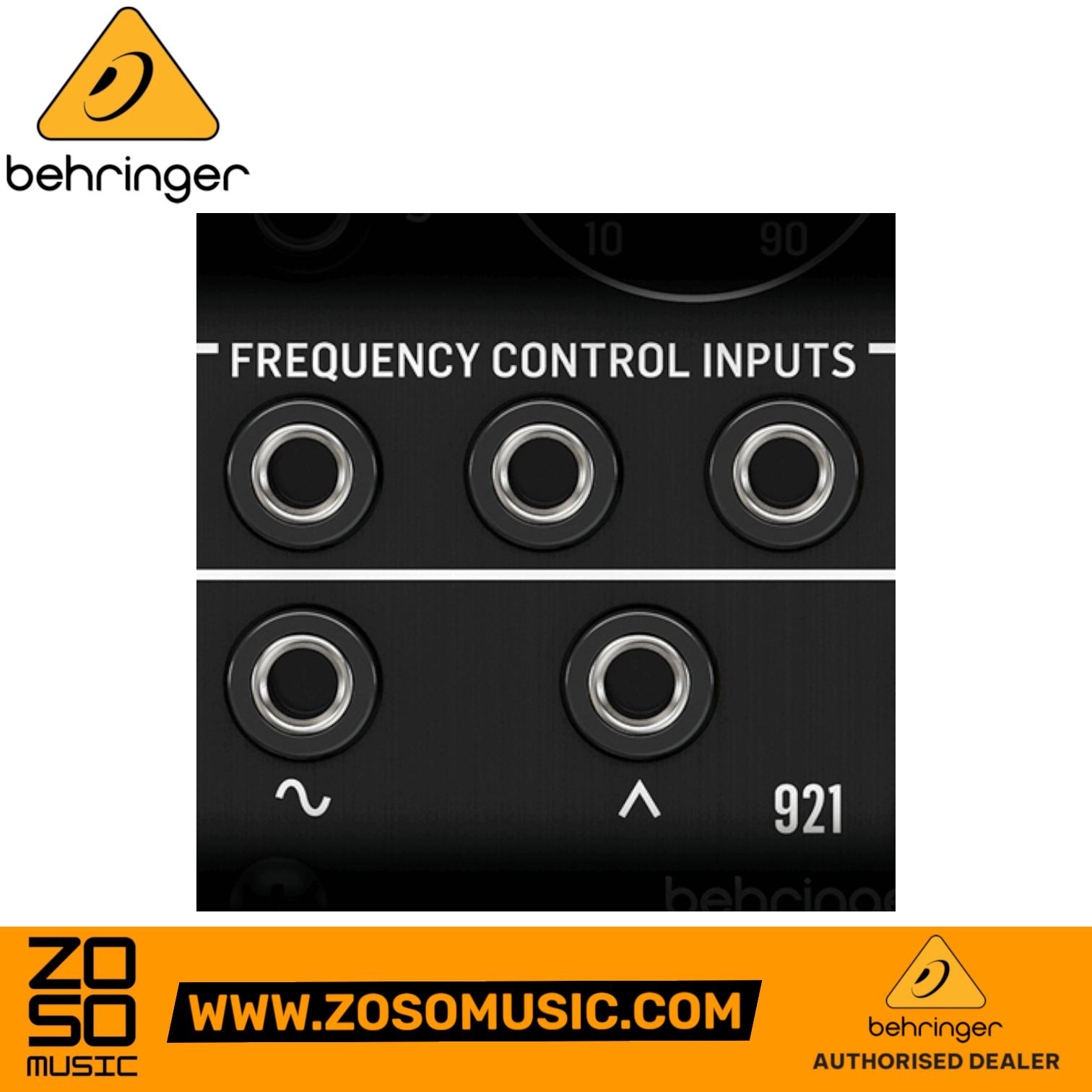

• VCO offers Frequency and Range controls plus 6 separate audio output, 5 CV inputs and 2 trig inputs
• 8 controls and switches give you real-time access to all important parameters
• Eurorack specs: 14 HP, 50 mA +12 V, 50 mA -12 V

SPECIFICATIONS

• Type: VCO Eurorack Module
• Depth: 1.8" (45mm)
• HP Size: 14HP
• Power Usage: ±12V/50mA
• Power Supply: Requires Eurorack case and power supply
