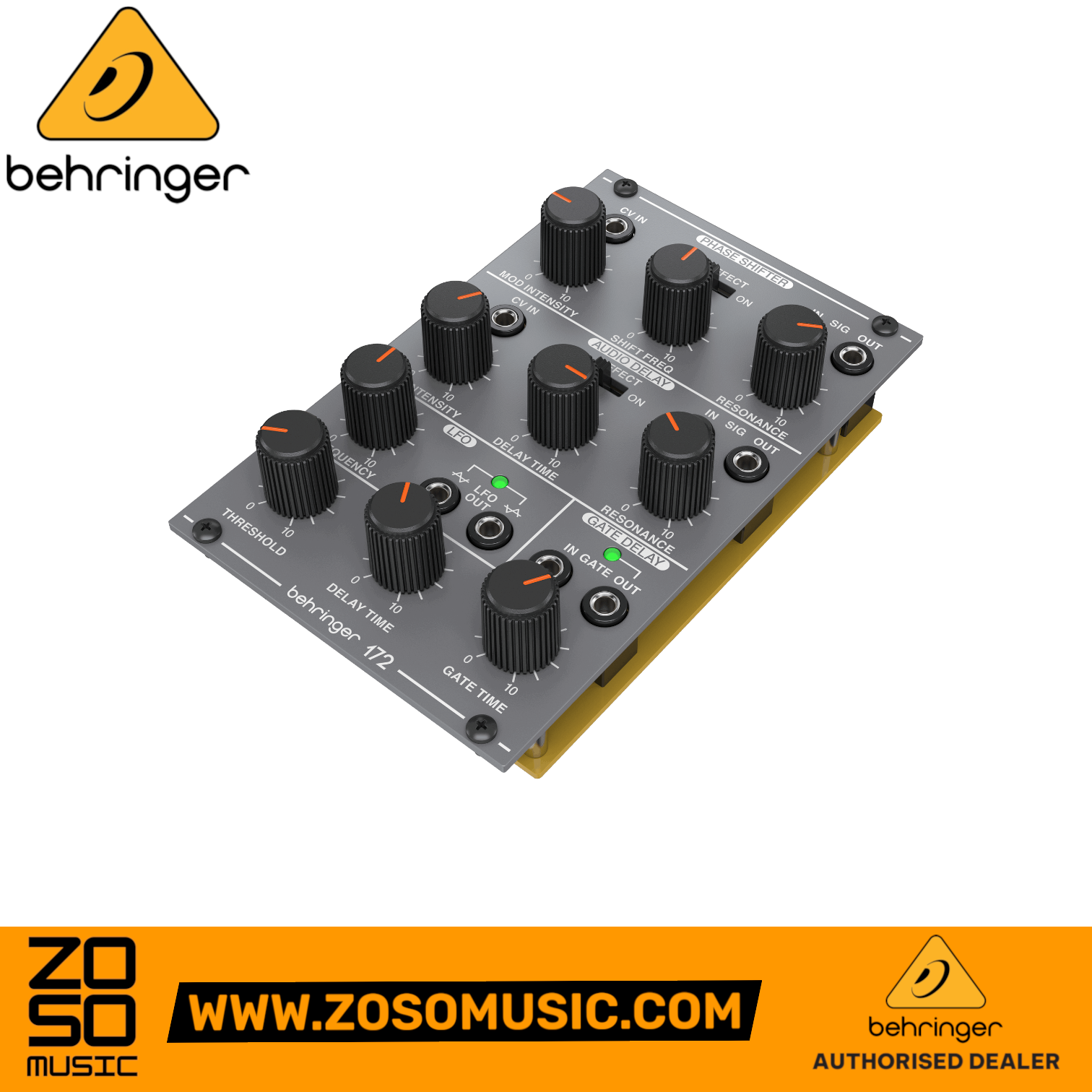

Behringer 172 Phase Shifter / Delay / LFO Eurorack Module

Behringer 172 phase shifter/delay/LFO brings swirling and lush vintage effects to Eurorack. This 16HP module comprises four sections phase shifter, audio delay, LFO, and gate delay, making it a supremely versatile sound and signal manipulation tool. The 6-step phase shifter adds texture and movement to your patches, from subtle warbling to chaotic whirling. While the bucket-brigade delay is perfect for dialing in tight, chorus-like slaps or dreamy echoes. The Behringer 172’s LFO outputs triangle and inverted triangle waves and includes a frequency knob for setting the rate it’s perfect for modulating the phase shifter and audio delay. Finally, the gate delay provides a platform for creating flams, drifting, ping-pong delay effects, and off-kilter, glitchy rhythms. They provide an affordable way for artists to explore the world of Eurorack and for Eurorack enthusiasts to expand their rigs with great-sounding, vintage-inspired modules.

FEATURES

• Amazing Phase Shifter/Delay/LFO module from the '80s
• Authentic reproduction of original "System 100M*" circuitry
• 6-step phase shifter with mod intensity, shift frequency and resonance controls
• Analog BBD delay with mod intensity, delay time and resonance controls
• Gate delay with threshold, delay time and gate time controls for creative pulse shaping
• LFO with frequency control plus normal and inverted output for ensemble and stereo effects
• 12 controls and switches give you real-time access to all important parameters
• Eurorack specs: 16 HP, 50 mA +12 V, 50 mA -12 V

SPECIFICATIONS

• Inputs
  - Phase shifter signal input (Type) : 3.5 mm TS jack, AC coupled
  - Impedance : 70 kΩ, unbalanced
  - Max input level : +16 dBu


• Phase shifter CV input
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : >50 kΩ, unbalanced
  - Max input level : +10 V
  - CV range : 0 V to +10 V


• Audio delay signal input
  - Type : 3.5 mm TS jack, AC coupled
  - Impedance : 15 kΩ, unbalanced
  - Max input level : +20 dBu


• Audio delay CV input
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : >70 kΩ, unbalanced
  - Max input level : +10 V
  - CV range : 0 V to +10 V


• Gate input
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : 47 kΩ, unbalanced
  - Max input level : +10 V
  - CV range : 0 V to +10 V


• Outputs
  - Phase shifter signal output (Type) : 3.5 mm TS jack, DC coupled
  - Impedance : 1 kΩ, unbalanced
  - Max output level : +18 dBu


• Audio delay signal output
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : 1 kΩ, unbalanced
  - Max output level : +16 dBu


• LFO output
  - Type : 2 x 3.5 mm TS jacks, DC coupled
  - Impedance : 1.2 kΩ
  - Max output level : 10 V p-p


• Gate output
  - Type : 3.5 mm TS jack, DC coupled
  - Impedance : 500 Ω
  - Max output level : +5 V


• Controls
  - Phase shifter effect switch : Off / on
  - Phase shifter mod intensity : -∞ to unity gain
  - Phase Shift frequency : 200 Hz to 8 kHz
  - Phase shifter resonance : Off to maximum resonance
  - Audio delay effect switch : Off / on
  - Audio delay mod intesity : -∞ to unity gain
  - Audio delay time : 1 ms to 7 ms
  - Audio delay resonance : Off to maximum resonance
  - LFO frequency : 0.02 Hz to 10 Hz
  - Gate Threshold : 0.3 V to 5 V
  - Gate delay time : 0.3 ms to 6 s
  - Gate time : 0.3 ms to 6 s


• Power
  - Power supply : Eurorack
  - Current draw : 60 mA (+12 V), 60 mA (-12 V)
