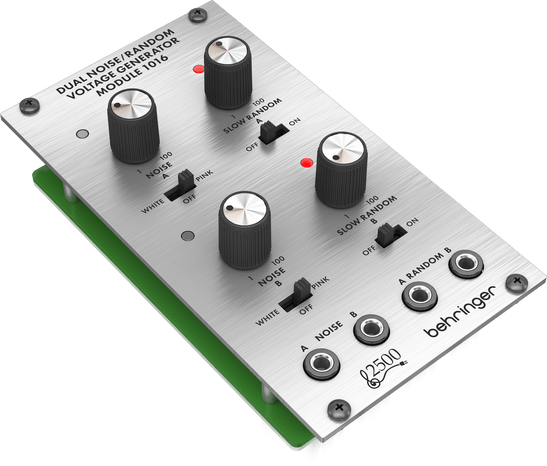

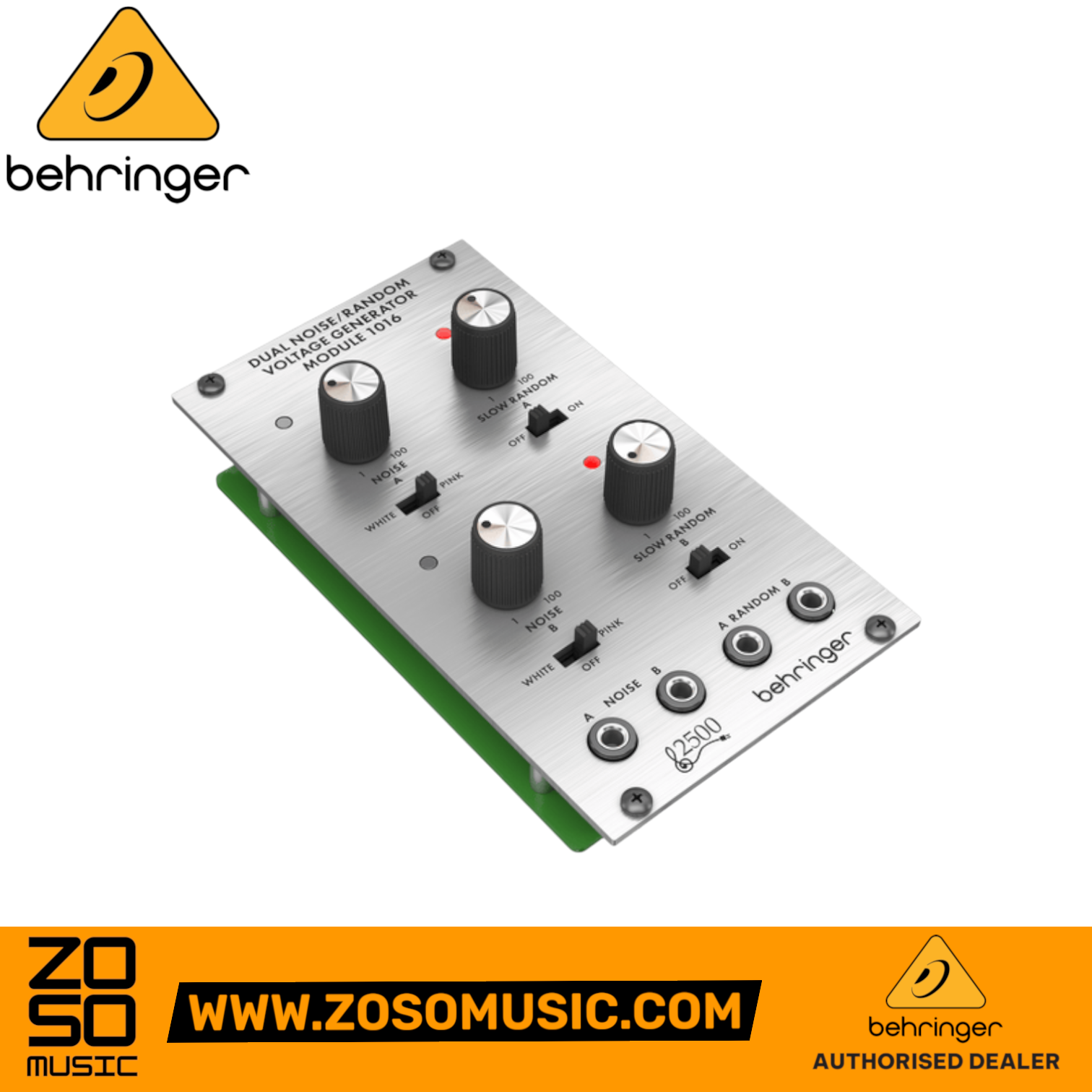

Behringer 1016 Dual Noise / Random Voltage Generator Eurorack Module

Behringer 1016 Dual Noise / Random Voltage Generator Eurorack Module

the Behringer 1016 provides a simple path to add texture and random modulations to your synth creations. Housing an independent noise generator and random CV signal generator, each with two outputs, this 16HP Eurorack module offers two flavors of noise: white and pink. You can layer noise alongside your oscillators to impart them with expressive breath-like qualities; use it as a sound source for creating snares, hats, and other percussive sounds; or employ it as a source for sample & hold and other modulators. Next up, the slow random CV signal generator excels at bringing sounds to life in unpredictable ways. Synthesists at Zoso Music enjoy it for modulating filter cutoff, pulse width, and pitch, in addition to appreciating the manual attenuation control for dialing in just the right amount of sonic chaos! Whether you’re expanding an existing Eurorack rig or building your first system, Behringer 2500 series models, including the Behringer 1016, are a budget-friendly choice with bona fide analog soul.

FEATURES

• Classic 1016 analog dual noise and random voltage generator module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• The module consists of 2 identical white/pink noise and Random Voltage generators
• The noise outputs are generated from 2 independent transistor noise sources
• Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
• 2 output attenuators enable the outputs to be reduced in volume
• White or Pink Noise are selectable via slide switch and LED indication
• Random Voltage can be switched on and off via slide switch with LED indication
• White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
• Slow random voltages feature peak signal power between 1 Hz and 10 Hz
• Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V

SPECIFICATIONS

• Outputs (Noise)
  - Type : 2 x 3.5 mm TS jacks, DC coupled
  - Impedance : 1 kΩ, unbalanced
  - Max output level : ±5 V


• Random
  - Type : 2 x 3.5 mm TS jacks, DC coupled
  - Impedance : 1 kΩ, unbalanced
  - Max output level : ±5 V


• Controls
  - Noise : Attenuates noise generator output
  - Random : Attenuates voltage output
  - White/pink/of : Selects white or pink noise, or of
  - Random on/of : Engages or disengages voltage generator


• Power
  - Power supply : Eurorack
  - Current draw : 45 mA (+12 V), 15 mA (-12 V)
