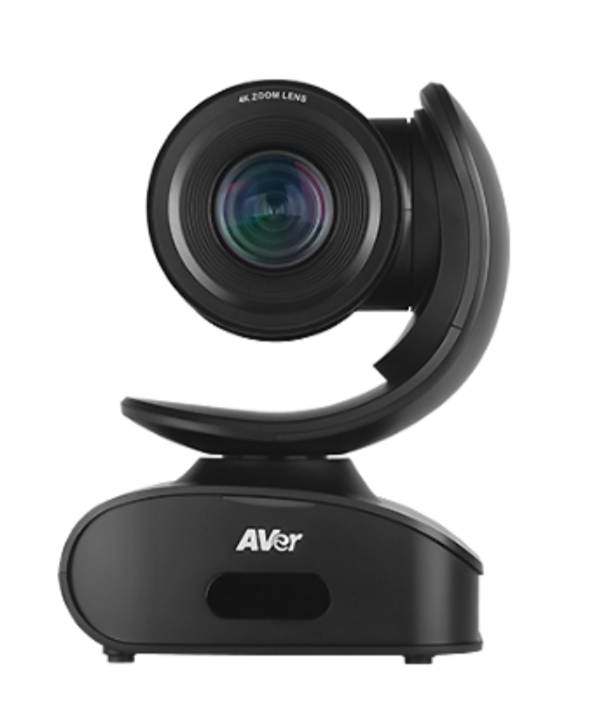

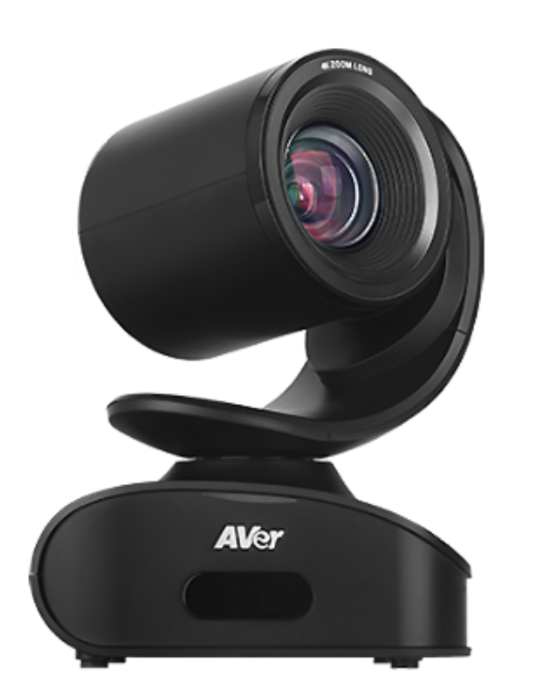

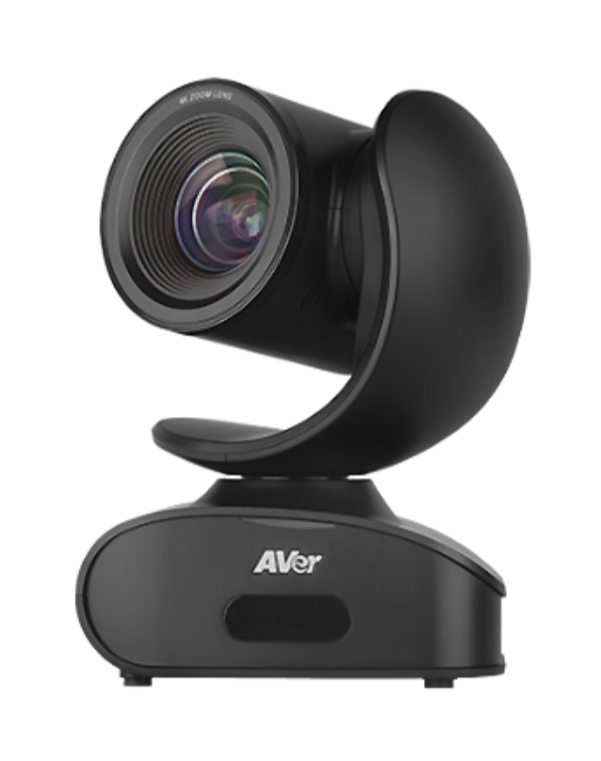

AVER CAM540 4K CONFERENCING CAMERA (AVI-61U3000000AC)

The CAM540 brings AVer’s new SmartFrame auto-framing technology to 4K high definition video conferencing. With a wide field of view, the CAM540 is guaranteed to provide an incredible communication experience in your meeting room.

The CAM540 delivers AVer’s latest camera technology to your meeting room with AVer SmartFrame. SmartFrame maximizes the viewable field with auto-framing solution that effortlessly puts everyone in your meeting into frame fast and with no hassle. No more complex settings or time wasting controls simply click a single button and find the most comfortable distance for your meeting with the CAM540 and SmartFrame.

Specifications:

Camera

• Ultra-crystal clear image support up to 4K; CMOS Sony 4K
• Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
• SmartFrame: Automatic FOV adjustment to fit all participants
• 16X Zoom (4X optical zoom + 4X digital zoom)
• Auto focus: minimum working distance 1 meter
• 86° Wide field of view
• Back light compensation and 2D noise reduction technology for optimizing light balance in different conditions
• Standard tripod screw holes
• Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

Motorized Pan and Tilt Movement

• Pan: ±160°
• Tilt: +90° (up) -30° (down)
• 10 camera presets (through remote control)
• Quiet and smooth pan and Tilt movement

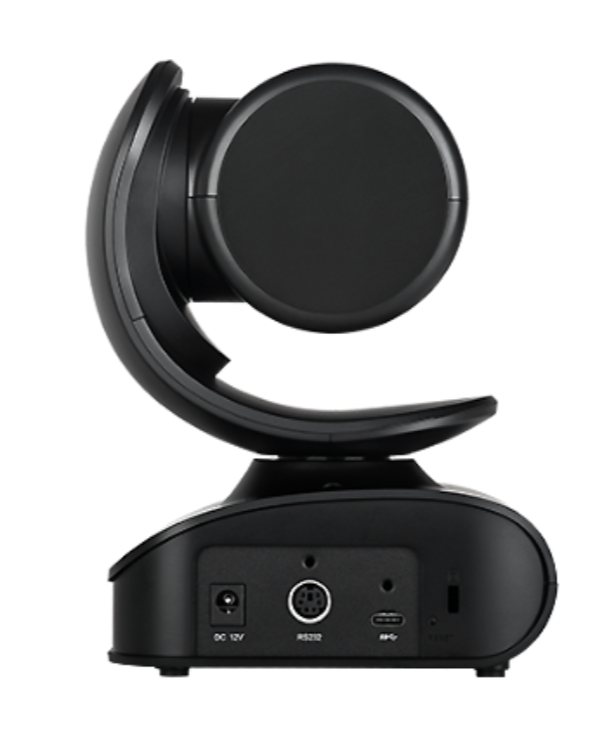

Connectivity

• 12V power adaptor
• Mini DIN6 for RS232 connection
• USB Type C connector

Video Format

• YUV, MJPEG

Security and mount

• Kensington slot


USB

• 2.0, 3.1 Gen1
• UVC (USB Video Class) 1.1

Control

• IR remote control
• VISCA/pelco P/pelco D via RS232
• UVC/ plug-and play
• PTZapp

System requirement*

• Windows 7/10/11
• Mac OS X 14.4 or higher
• Chromebox 3 version 94.0.4606.114 or later

Hardware Spec*

• 2.4GHz Intel^® Core 2 Duo processor
• 2GB RAM or more
• USB 3.1 Gen1 port

Features:

• Ultra HD 4K
• 3.3X optical zoom (16X total zoom)
• 86° FOV
• 10 camera presets
• RS232, VISCA integration
• SmartFrame technology
• Auto light balancing
