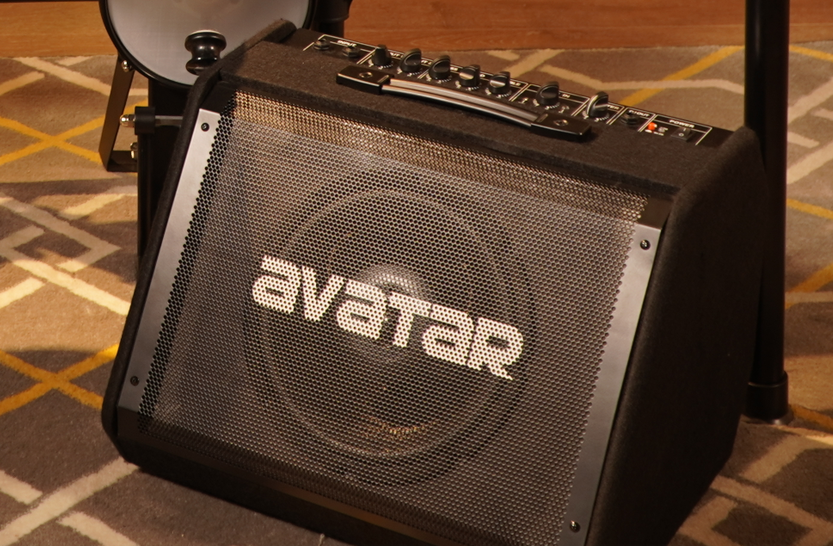

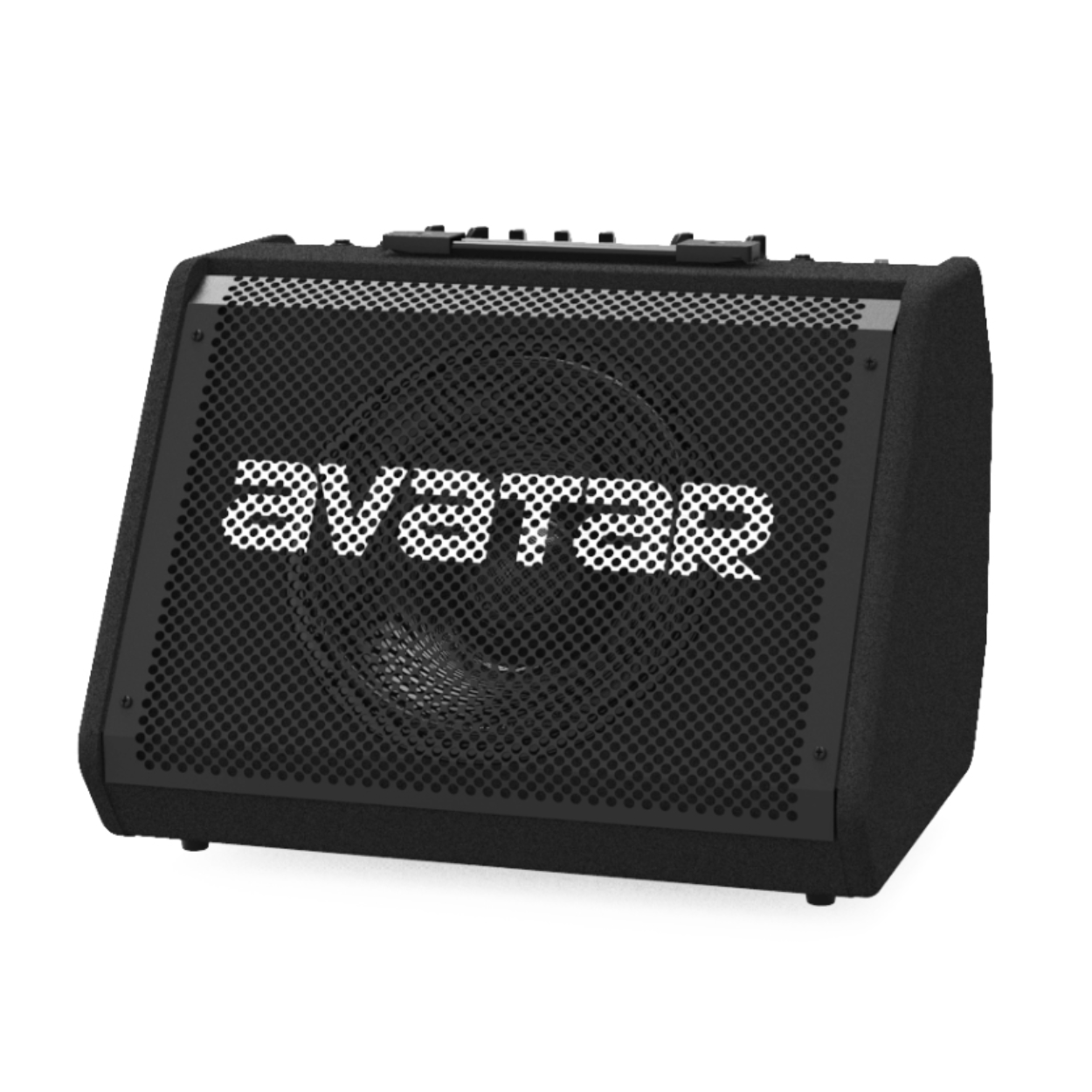

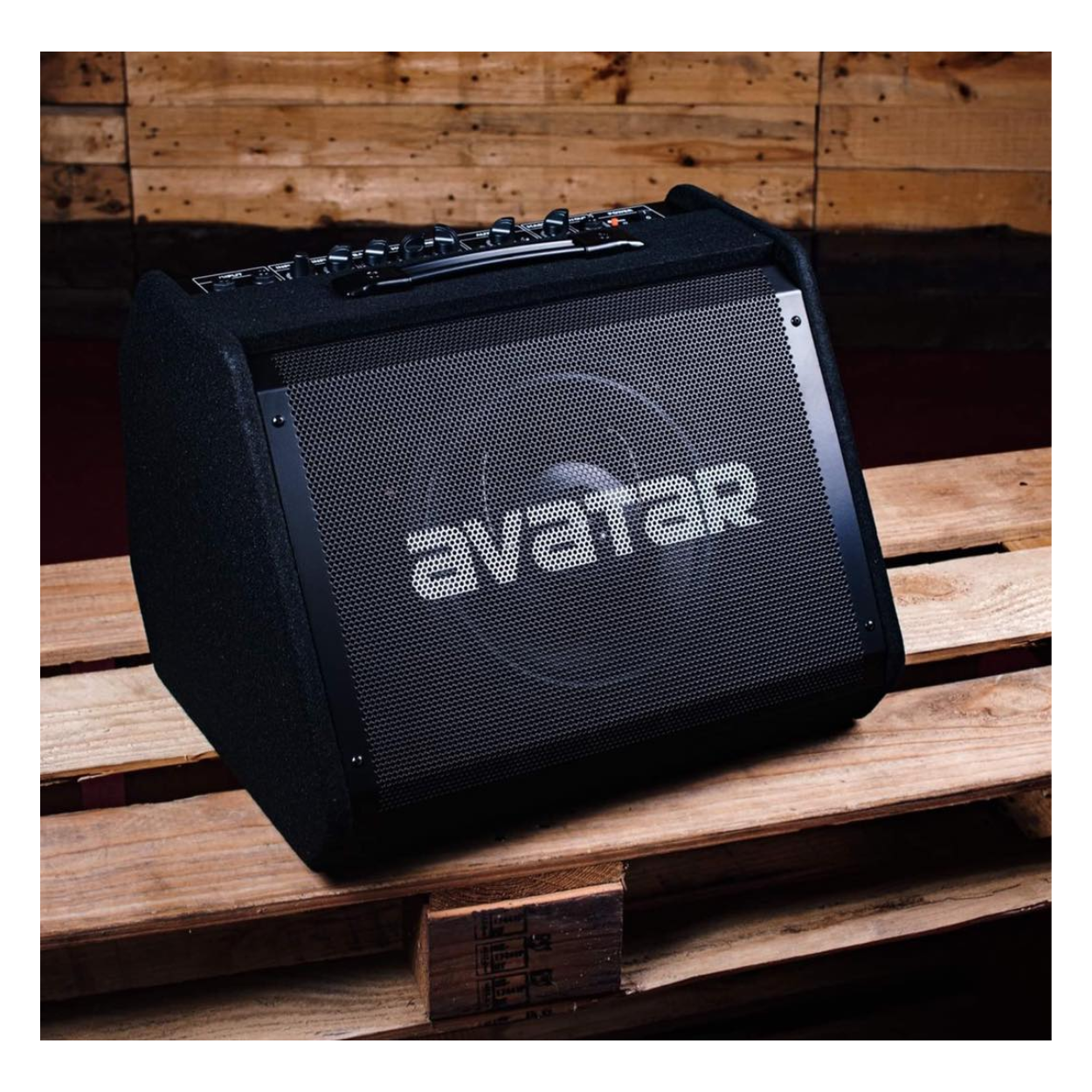

Avatar DM60 Digital Drum Monitor 60watts

AVATAR DM60 DIGITAL DRUM MONITOR 60WATTS

Avatar DM60 suitable for any digital drum.

Specification:

• Power Output: 80WRMS
• Power Consumption: 90W 50hz 230 VAC
• Speaker: Coaxial horn (10’ bass + 4‘ treble unit)
• Impedance:
  • Input1: 47k ohm
  • Output2: 47k ohm
• Input sensitivity:
  • Input1: -36db
  • Input2: -36db
• AUX IN: -20dBv
• EQ:
  • Bass: +/- 15dB @ 100Hz
  • Mid: +/- 15dB @ 1Hz
  • Treble: +7/- 15dB @ 8kHz
  • BT: Version 5.0 (Accessible effective range: 15m)
• Dimensions: L: 450mm x W: 405mm X H: 540mm
• Net Weight: 11.8kg
• Gross Weight: 13.5kg

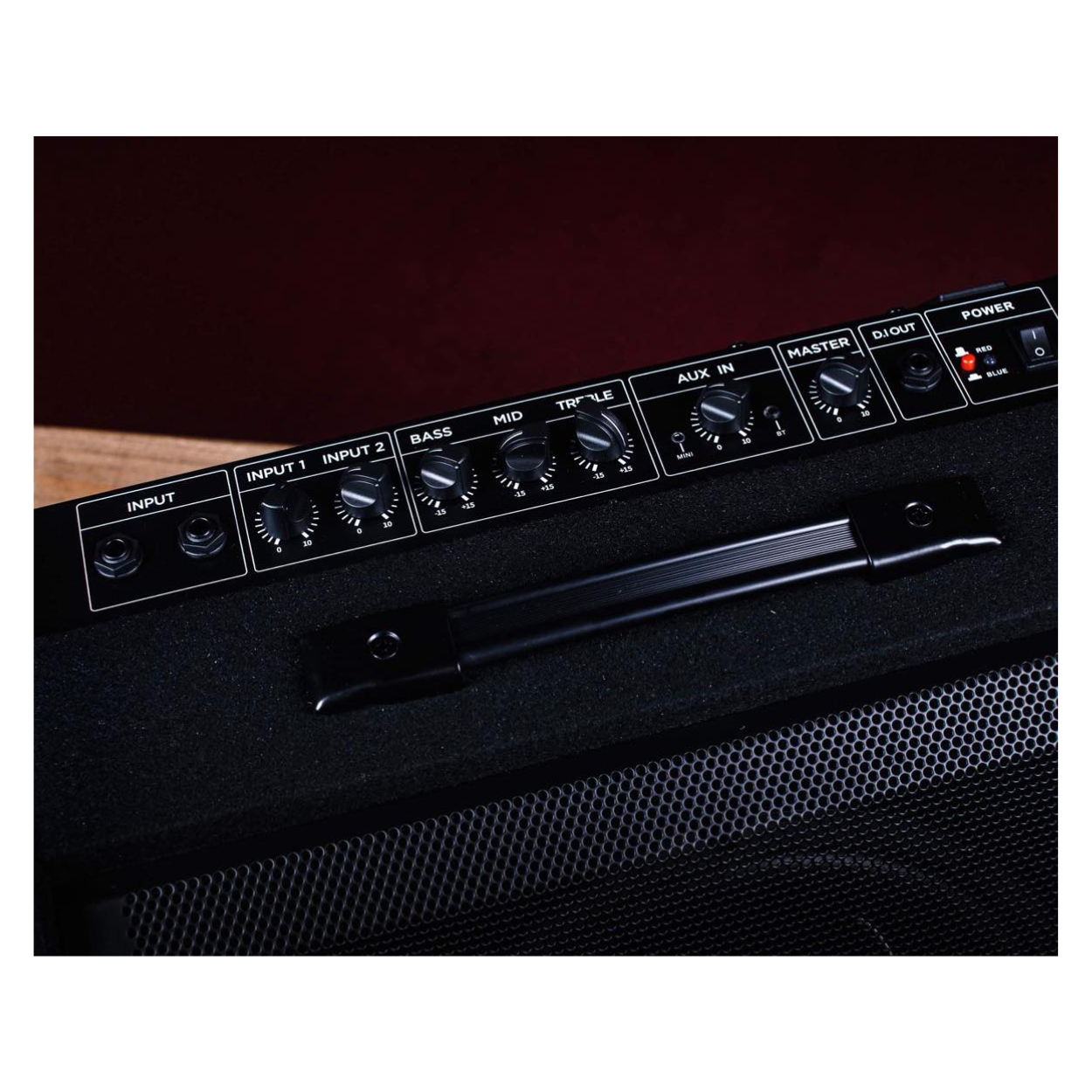

Features:

• Input1: Can access electronic drum sound source, professional electronic drum effect
• Input2: It can be connected to electronic drum, keyboard, bass and acoustic guitar.
• Input1 Vol: This knob is used to control the volume of the INPUT1.
• Input2 Vol: This knob is used to control the volume of the INPUT2.
• Bass: The knob is used for ascension EalPUT1/2 low frequency signal
• Mid: The knob is used to lift or attenuate the IF signal of input1/2
• Treble: The knob is used to lift or attenuate the high frequency signal of Input1/2.
• AUX IN: The knob is used to adjust the MIIN and BT input volume.
• AUX-BT: Click to open the Bluetooth and enter the pairing state. The indicator light is always on after successful pairing, slowly flashes when playing.
• Master: This knob is used to adjust the volume of the speaker output.

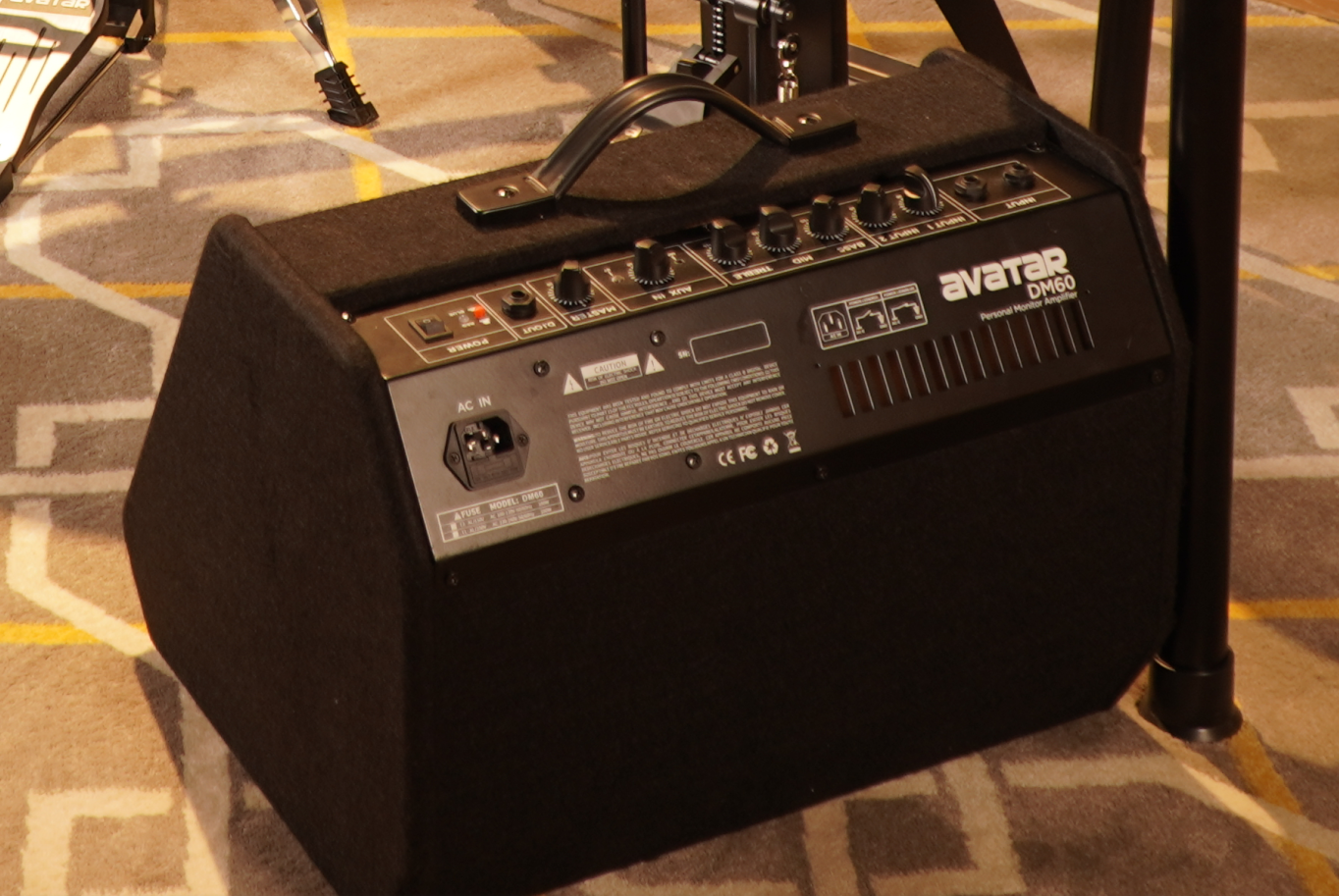

• I out: Audio signal output to the mixer or active speakers, etc.
• Power LED and GND Switch: When the plug of the sound source and the sound box is well grounded, open the switch (blue) to filter the noise in the power supply; On the contrary Switch off (red) to block the interference between the two.
• Power Switch: Open the switch, the product into the working state (Power indicator light)
• AC IN: Power supply input port, please make sure the voltage is normal before powering on.
