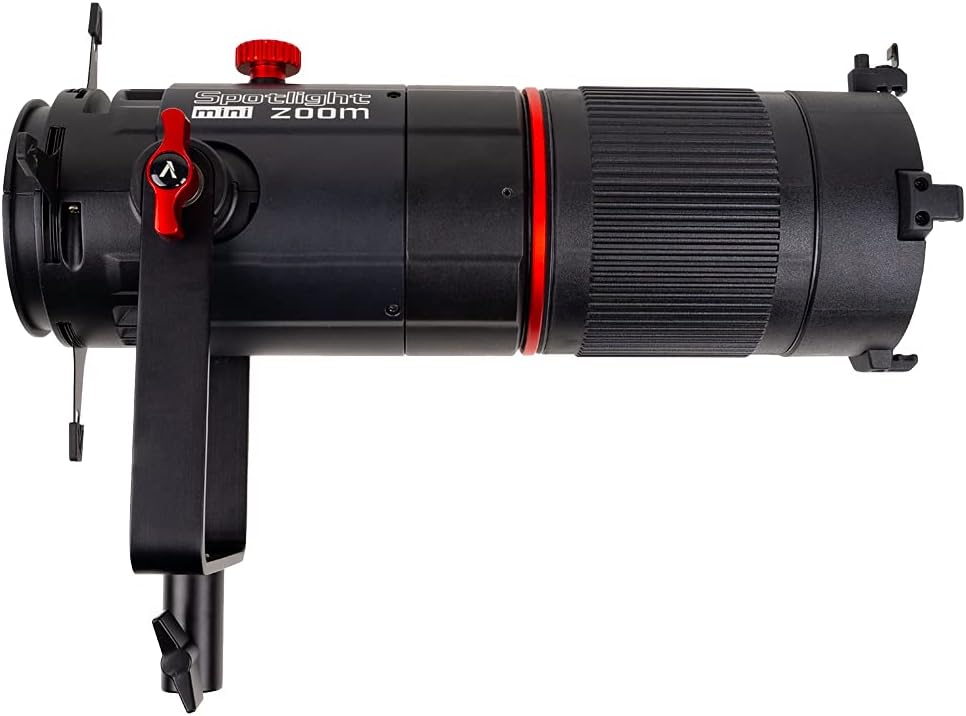

Aputure Spotlight Mini Zoom for LS 60d and 60x LED Lights

SKU: APU-SPOTLIGHTMINIZOOM
Price
RM2,419.00
Out of stock

Frequently Bought Together

Stock Notification

Get notified when this product is available again

Product Information

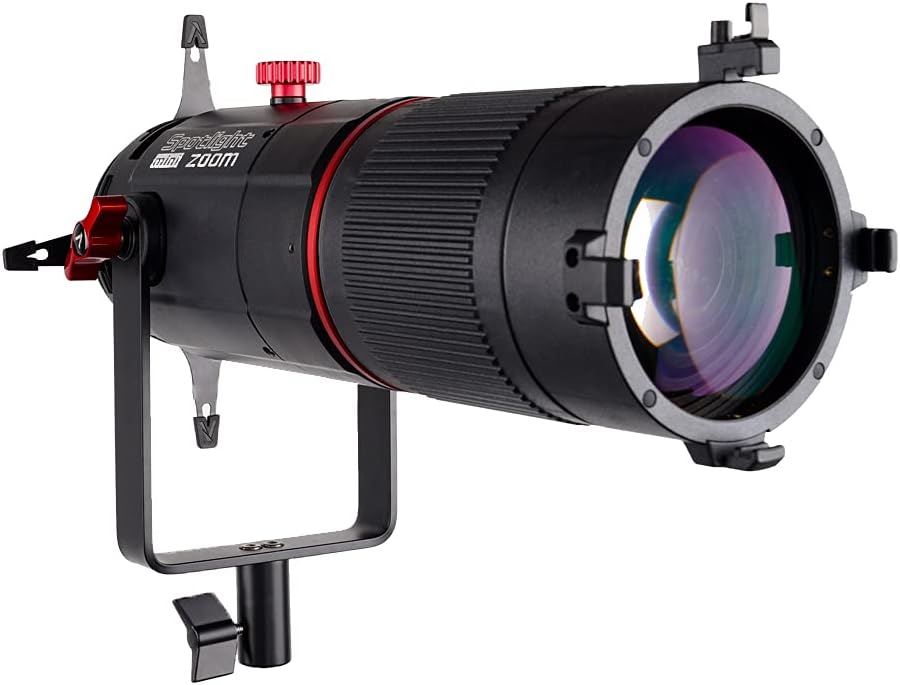

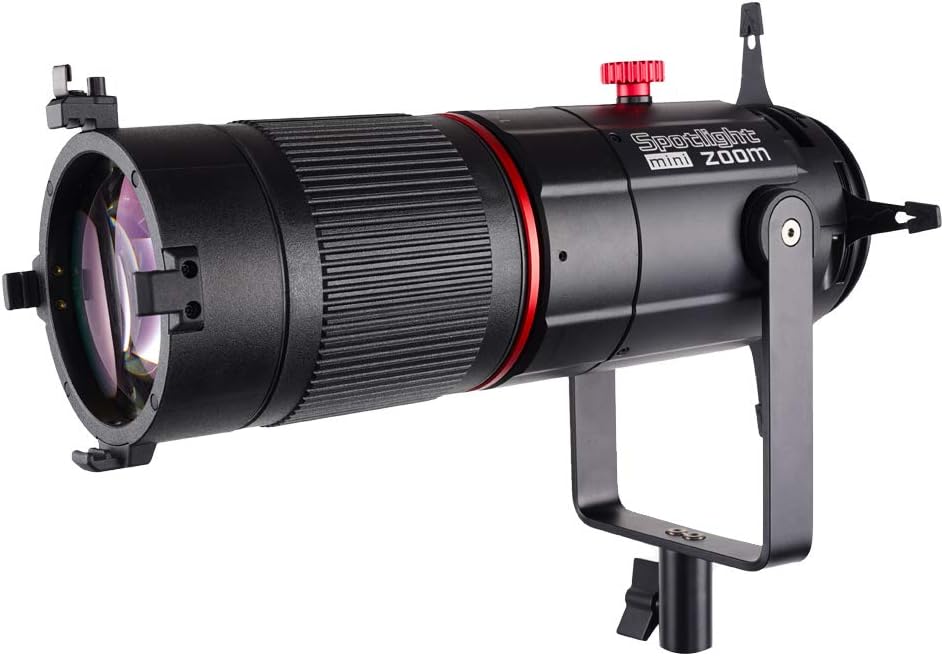

The Spotlight Mini Zoom is a 2X optical projection lens designed to be compatible with the LS 60d and LS 60x Adjustable Focusing LEDs. By mounting the LS 60d or 60x onto the Spotlight Mini Zoom, the combined fixture gives uses the ability to create completely redefine the shape of the light output by using the built-in shutters and a drop-in iris. As a projection lens, the Spotlight Mini Zoom also accepts and can project M-Size Gobos.

This accessory for the LS 60d & 60x is also a 2X zoom lens, removing the need to carry multiple interchangeable lenses. The Spotlight Mini Zoom can project a beam angle of 15°~30°, making it a 2X optical zoom lens, giving users a wide range of flexibility with a single tool. At a distance of 5 meters, the Spotlight Mini Zoom can project an image circle of 1.4 meters to 2.8 meters depending on the zoom setting.


Features:

  • 15°~30° 2X Zoom Adjustable Focus Projection Lens
  • Precision Chromatic Aberration-Free Optics
  • Compatible with Aputure LS 60d & 60x Adjustable Focus LED Lights

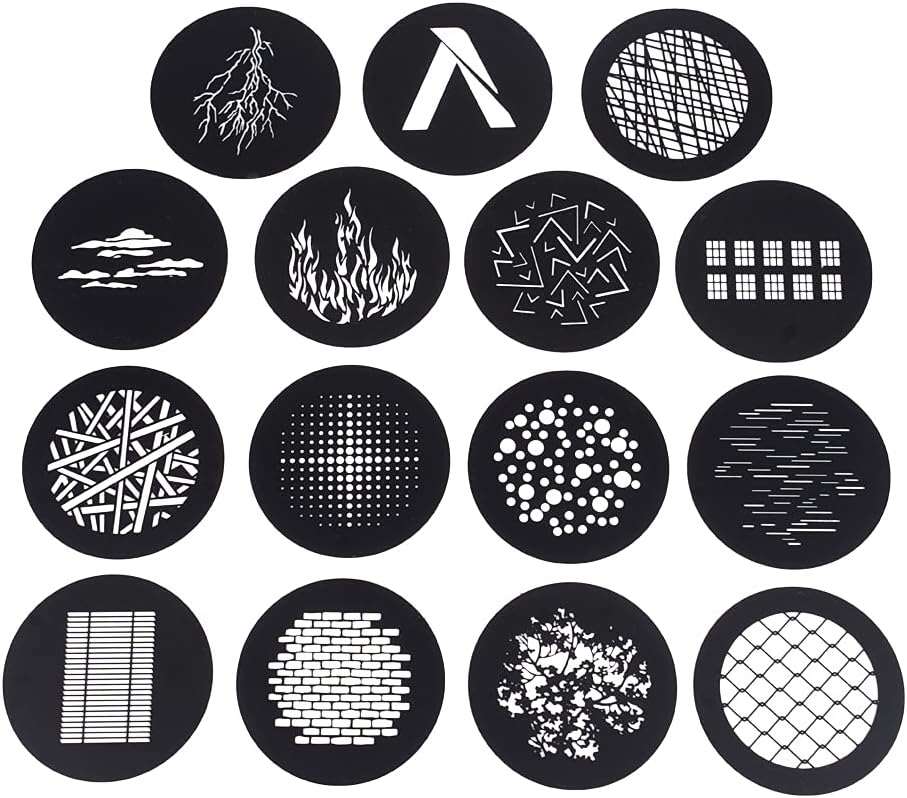

  • Accepts M-Size Gobos

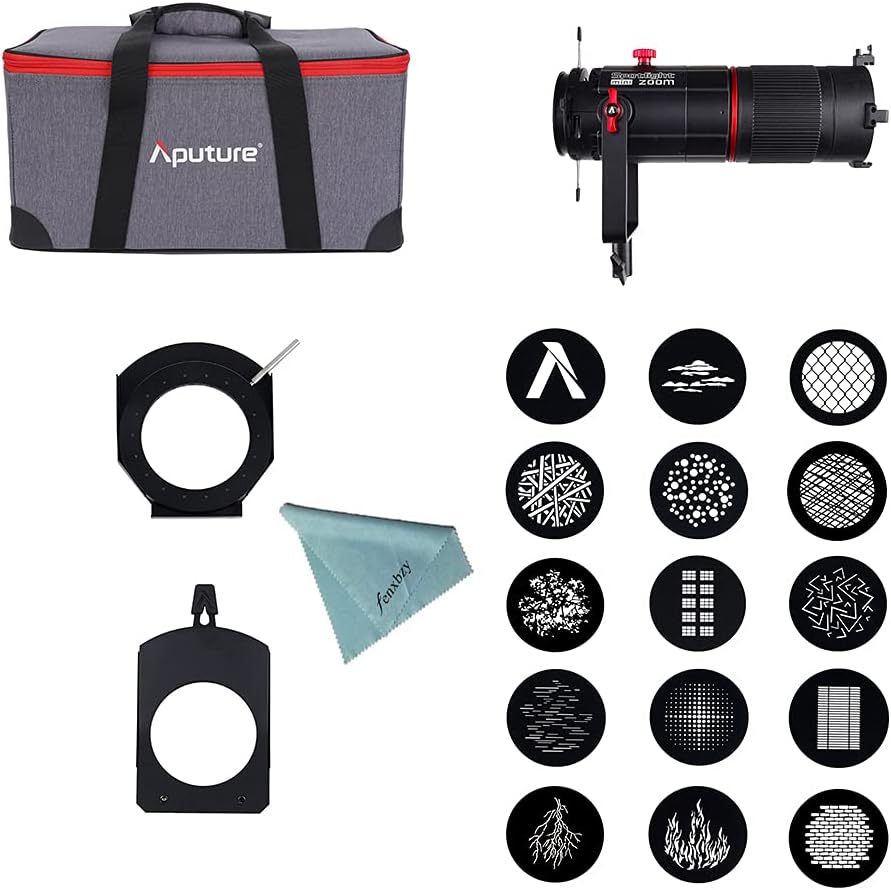

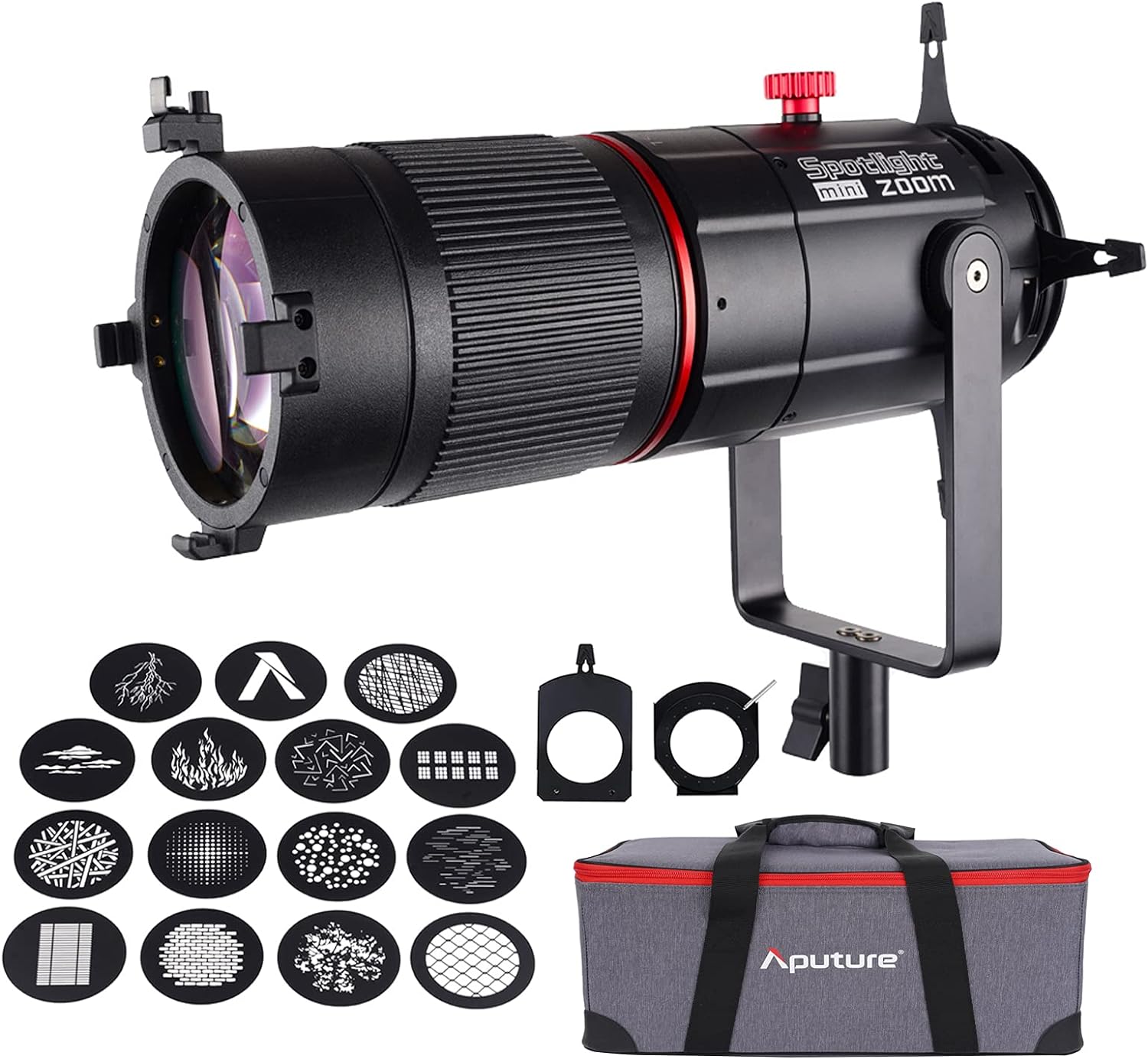

  • Includes 15 M-Size Gobos, Gobo Holder, & Gel Holder
  • Compatible with Aputure M-Size Iris Accessory
  • Can project a 1.4m-2.8m image circle at a distance of 5 meters



Specifications

  • Beam Angle: 15-30°
  • Optical Zoom Range: 2X
  • Gobo Size: M-Size
  • Iris Slot Dimensions: 10*87.5*103mm / 0.4*3.4*4.1in
  • Accessory Slot Diameter: 106mm / 4.2in
  • Gel Slot Diameter: 123.5mm / 4.9in
  • Construction Material: Aluminum Alloy



Dimensions

  • Spotlight Mini Zoom w/o Yoke
  • 163.5*163.5*378mm / 6.4*6.4*14.9in
  • Spotlight Mini Zoom with Yoke
  • 170*285*378mm / 6.7*11.2*14.9in
  • Spotlight Mini Zoom Iris
  • 126*87*8.7mm / 5*3.4*0.4in
  • Total with Carrying Case
  • 475*295*255mm / 18.7*11.6*10in



Weight

  • Spotlight Mini Zoom without Yoke: 4095g / 9lbs
  • Spotlight Mini Zoom with Yoke: 4400g / 9.7lbs
  • Spotlight Mini Zoom Iris: 77g / 0.2lbs
  • Total with Carrying Case: 6580g / 14.5lbs



Photometrics



Fixture

Distance

CCT

Beam Angle

Beam Diameter (cm)

Brightness

LS 60d

1m

5600K

30°

60

3,250 lux / 302 fc



1m

5600K

15°

30

14,400 lux / 1,338 fc



3m

5600K

30°

170

430 lux / 40 fc



3m

5600K

15°

85

1,660 lux / 154 fc



5m

5600K

30°

280

160 lux / 15 fc



5m

5600K

15°

140

610 lux / 57 fc

LS 60x

1m

2700K

30°

60

1,780 lux / 165 fc



1m

2700K

15°

30

7,860 lux / 730 fc



1m

3200K

30°

60

2,200 lux / 204 fc



1m

3200K

15°

30

9,690 lux / 900 fc



1m

4300K

30°

60

2,280 lux / 212 fc



1m

4300K

15°

30

10,030 lux / 932 fc



1m

5600K

30°

60

2,420 lux / 225 fc



1m

5600K

15°

30

10,640 lux / 988 fc



1m

6500K

30°

60

2,350 lux / 218 fc



1m

6500K

15°

30

10,330 lux / 960 fc



3m

2700K

30°

170

240 lux / 22 fc



3m

2700K

15°

85

910 lux / 85 fc



3m

3200K

30°

170

300 lux / 28 fc



3m

3200K

15°

85

1,125 lux / 105 fc



3m

4300K

30°

170

310 lux / 29 fc



3m

4300K

15°

85

1,170 lux / 109 fc



3m

5600K

30°

170

330 lux / 31 fc



3m

5600K

15°

85

1,240 lux / 115 fc



3m

6500K

30°

170

320 lux / 30 fc



3m

6500K

15°

85

1,200 lux / 111fc



5m

2700K

30°

280

90 lux / 8 fc



5m

2700K

15°

140

335 lux / 31 fc



5m

3200K

30°

280

110 lux / 26 fc



5m

3200K

15°

140

415 lux / 39 fc



5m

4300K

30°

280

115 lux / 11 fc



5m

4300K

15°

140

430 lux / 40 fc



5m

5600K

30°

280

120 lux / 11 fc



5m

5600K

15°

140

460 lux / 43 fc



5m

6500K

30°

280

120 lux / 11 fc



5m

6500K

15°

140

440 lux / 41 fc
