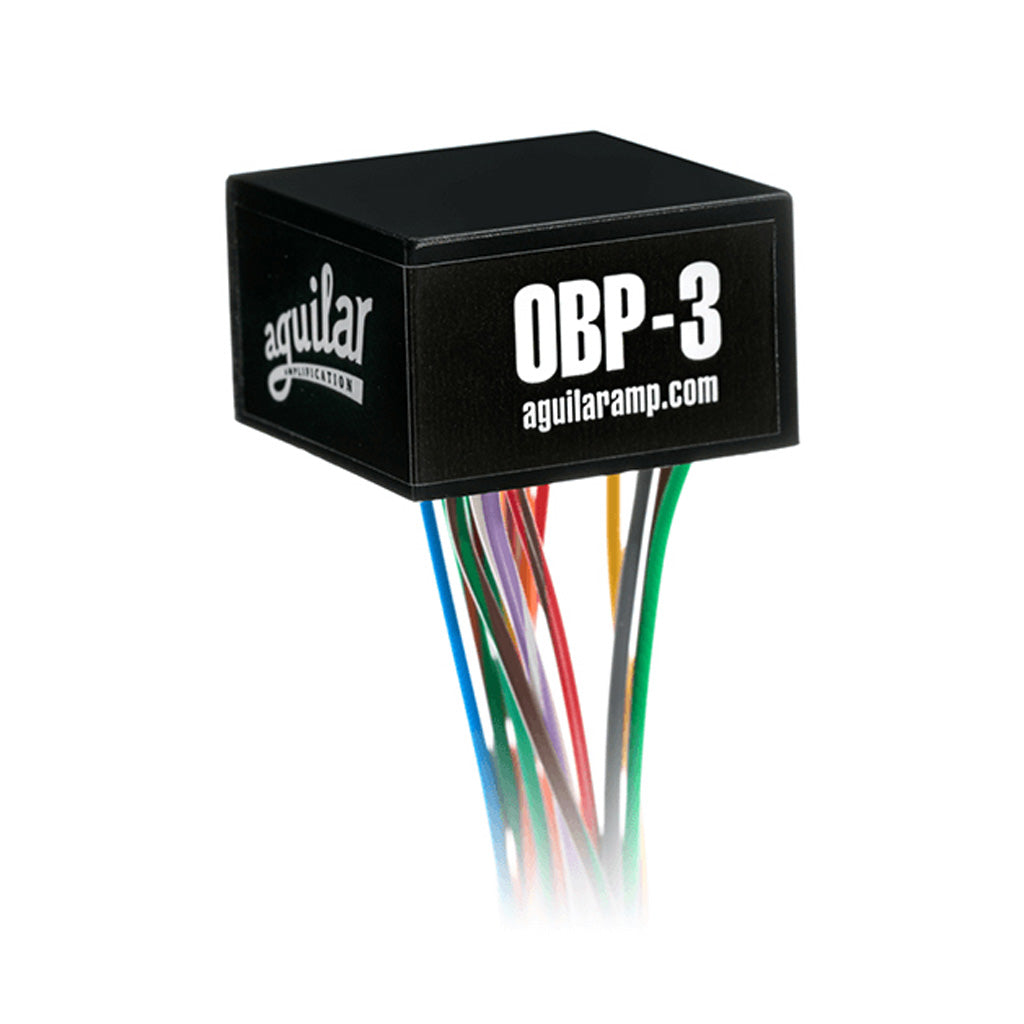

Aguilar OBP-3TK Three Band On-Board Bass Preamp Kit

SKU: A03-OBP3TKSET
Price
RM849.00
In stock and ready for shipping

Frequently Bought Together

Pickup currently unavailable at E-Hub

Check availability at other stores
Product Information

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.


Features:

  • Low noise discrete FET input stage,
  • Centre detent 50 K linear pots
  • Dual concentric pot
  • 324 hours of battery life


Specifications

Bass control

plus/minus 18 dB @ 40 Hz

Mid control

plus/minus 16 dB @ 400Hz or 800 Hz. User-selectable frequency centre

Treble control

plus/minus 16 dB @ 6.5 kHz

Input impedance

1 megohm

Output impedance

100 ohms 9 or 18 volts operation

Distortion

.019 into 10k ohm load

Noise

-95 dBm unweighted

Wire lead length

6.50 inches

Includes

Separate Treble, Mid, and Bass pots, and black mini-toggle switch for Midrange frequency selection

Dimensions

0.98″ (W) x 0.98″ (L) x 0.59″ (D)
